Home >> Acura >> 2002 >> MDX Base, MGHA >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock/Traction Control >> System Tests >> Test C: Abs Indicator Does Not Come On

Test C: Abs Indicator Does Not Come On

For test chart, see Fig 1 .

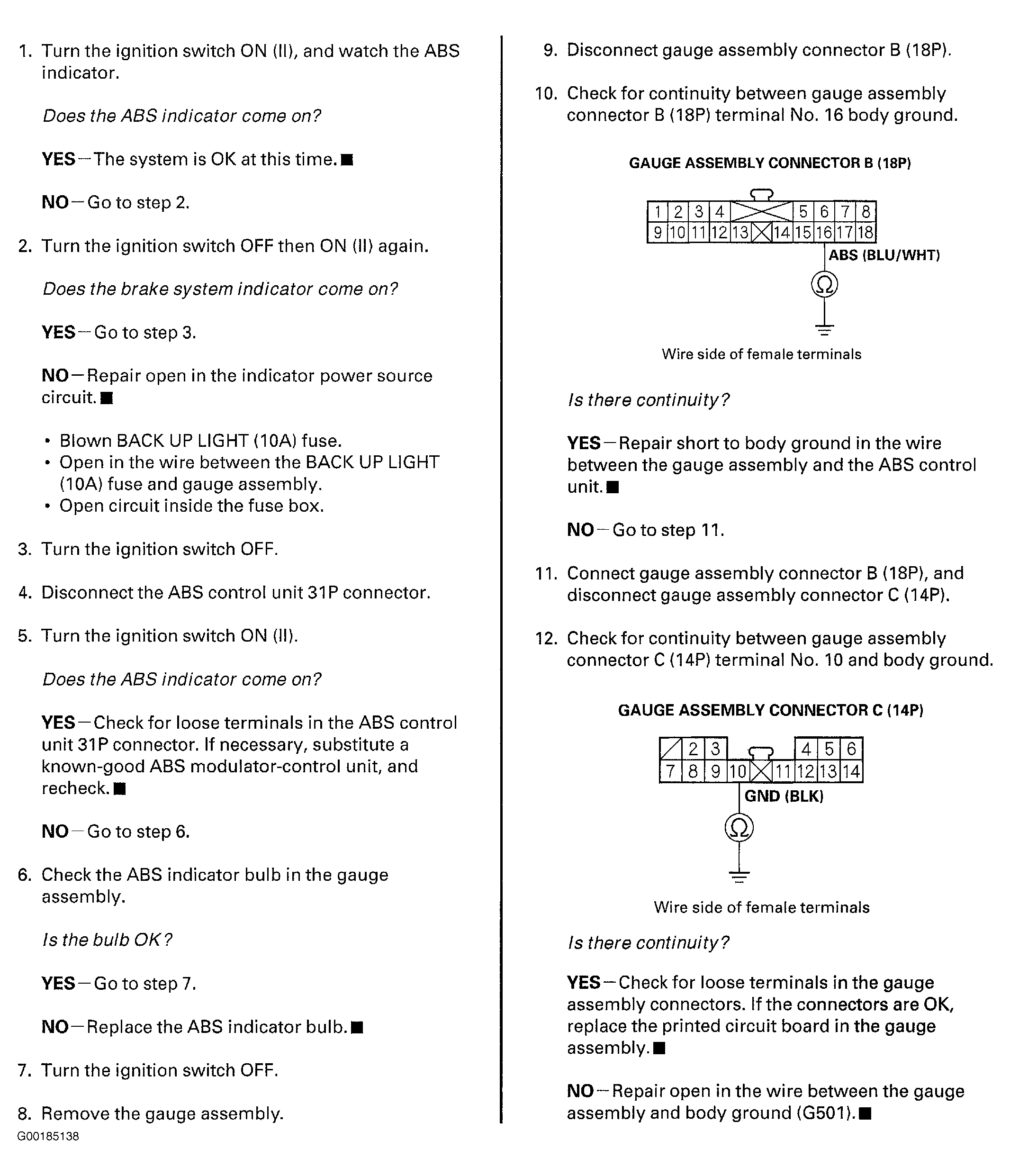

Fig 1: ABS Indicator Does Not Come On, Trouble Shooting Chart
G00185138Courtesy of AMERICAN HONDA MOTOR CO., INC.
