DTC 54: Main Relay Stuck Off
For DTC testing flow chart, see
Fig 1
.

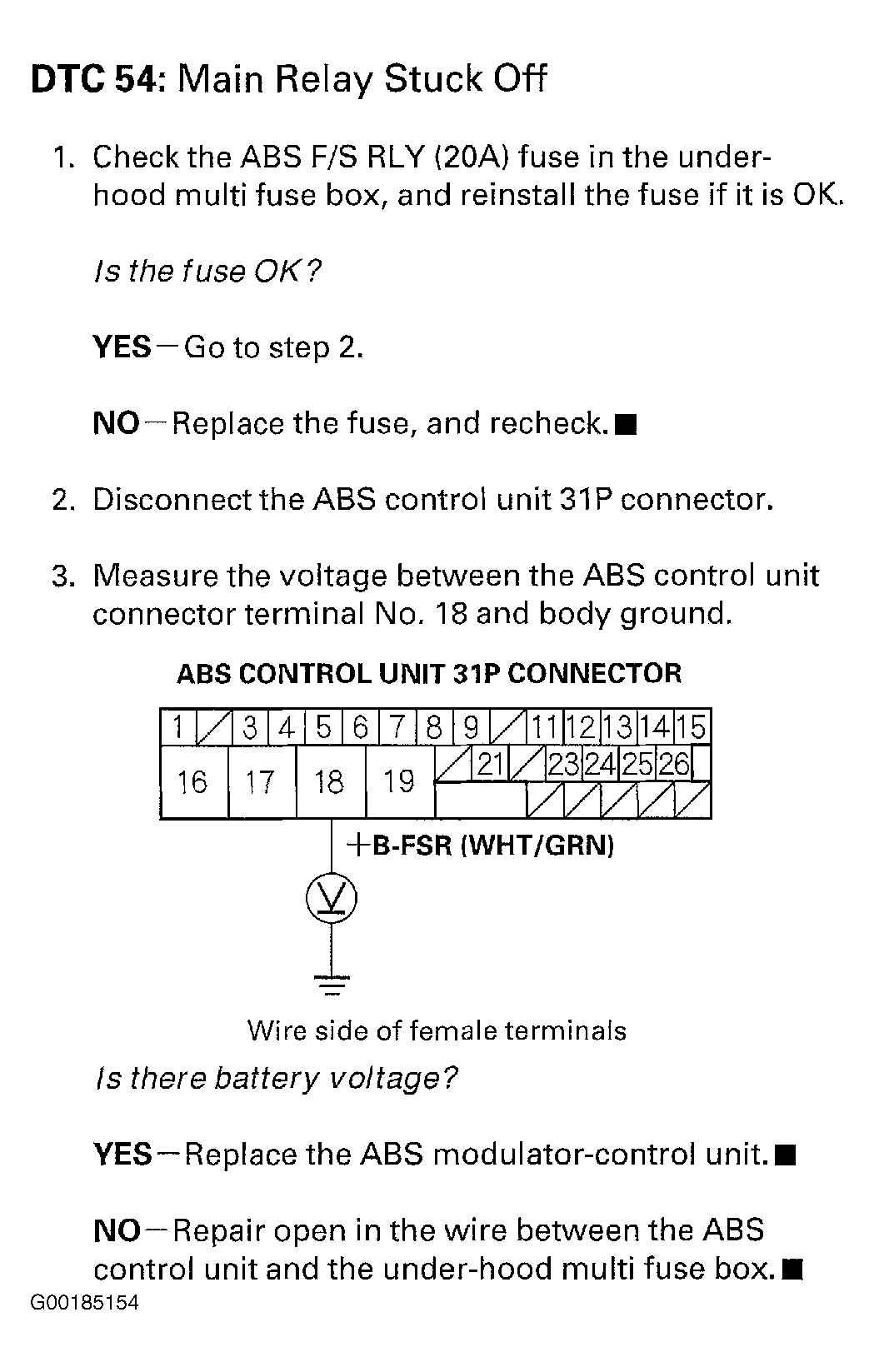

Fig 1: DTC 54: Main Relay Stuck Off Testing Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
