Security Indicator

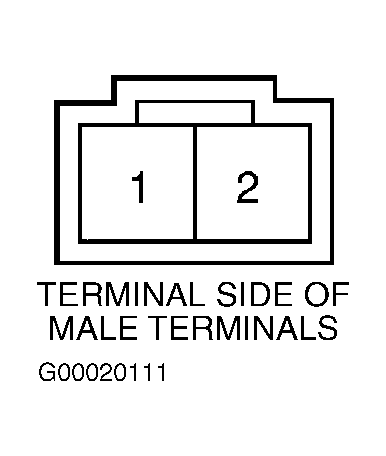

Remove driver's door panel. See FRONT DOOR PANEL  under REMOVAL & INSTALLATION. Disconnect 2-pin security indicator connector. Using fused jumper wires, connect battery voltage to security indicator harness connector terminal No. 2 and ground to terminal No. 1. See Figure . If LED does not illuminate, replace security indicator.
