Door Lock Switch Test

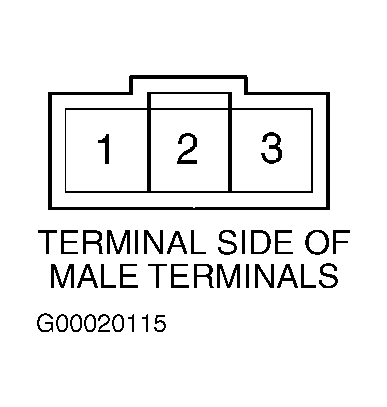

Remove door panel. See FRONT DOOR PANEL under REMOVAL & INSTALLATION. Remove 2 screws and remove door lock switch. Check continuity between door lock switch connector terminals with door lock switch in indicated positions. See Fig 1 . See DOOR LOCK SWITCH CONTINUITY TEST table. If continuity is as specified, door lock switch is okay. If continuity is not as specified, replace door lock switch.
DOOR LOCK SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Lock | 1 & 2 |
| Off | No Continuity |
| Unlock | 2 & 3 |
