Component Locations

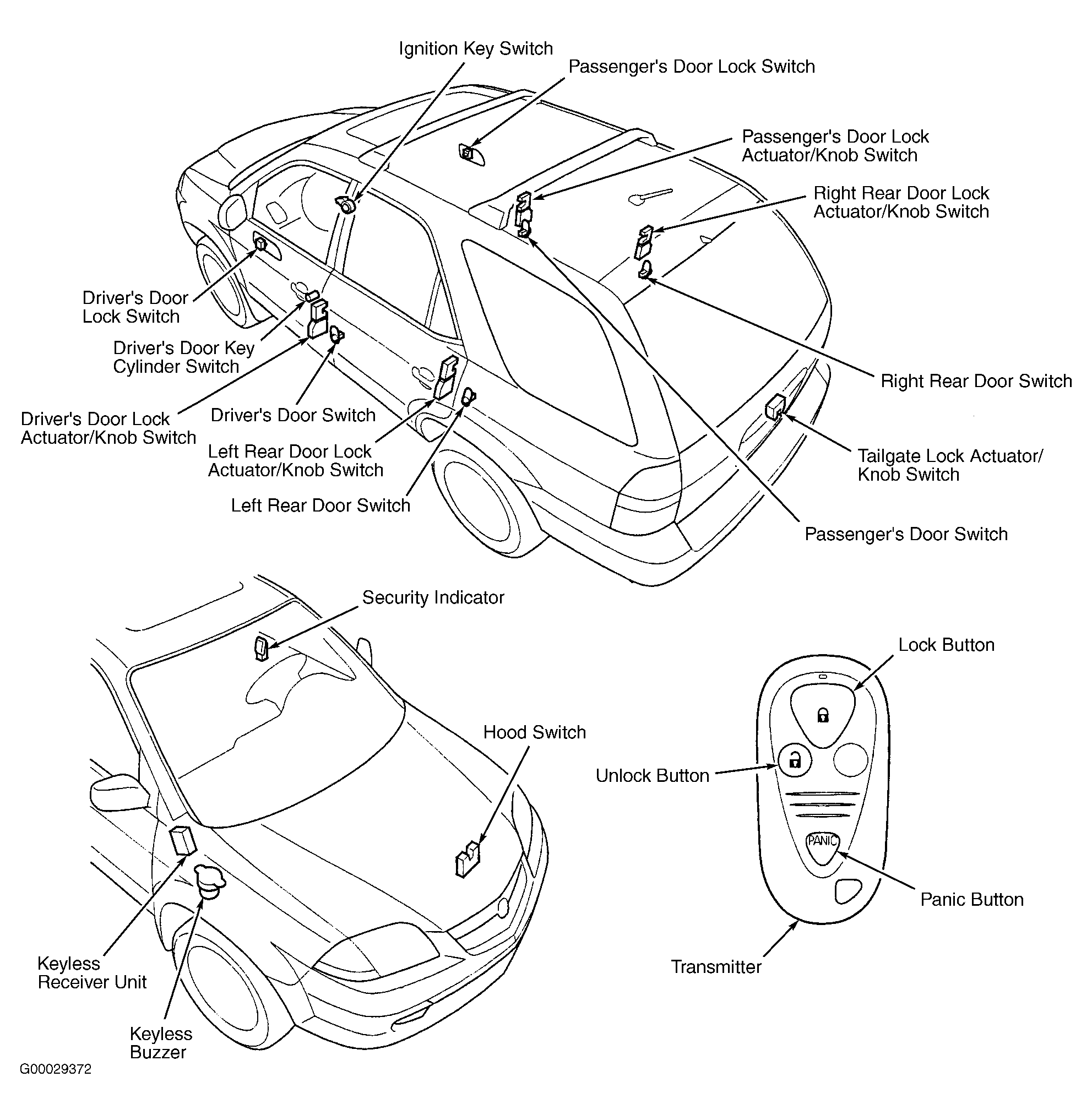

For component locations, see COMPONENT LOCATIONS table. See Fig 1 .
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Door Multiplex Control Unit | Built Into Driver's Power Window Master Switch |
| Driver's Multiplex Control Unit | On Driver's Underdash Fuse/Relay Box |
| Driver's Underdash Fuse/Relay Box | Above Left Kick Panel |
| Ground G201 | Right Front Corner Of Engine Compartment |
| Ground G401 | Under Access Cover At Left End Of Dashboard |
| Ground G501 | Under Driver's Side Of Dashboard, Above Fuse Block |
| Ground G502 | Under Middle Of Dashboard, Left Of Power Outlet |
| Ground G503 | Under Right Side Of Dashboard, Next To Blower Motor |
| Ground G601 | Under Carpet On Left Side Of Floor |
| Ground G602 | Behind Left Rear Trim Panel |
| Ground G651 | Under Carpet On Right Side Of Floor |
| Ground G652 | Behind Right Rear Trim Panel |
| Hood Switch | On Bottom Of Hood Latch |
| Horn Relay | In Underhood Fuse/Relay Box |
| Horns | One In Each Front Corner, Behind Inner Fender Liner |
| Keyless Receiver Unit | Behind Glove Box |
| Passenger's Multiplex Control Unit | On Passenger's Underdash Fuse/Relay Box |
| Passenger's Underdash Fuse/Relay Box | Behind Right Kick Panel |
| Taillight Relay | In Driver's Underdash Fuse/Relay Box |
| Underhood Fuse/Relay Box | Right Side Of Engine Compartment |
