Driver's Power Seat Control Unit (With DPMS)

Unit is mounted to bottom of driver's seat. See Fig 1 .

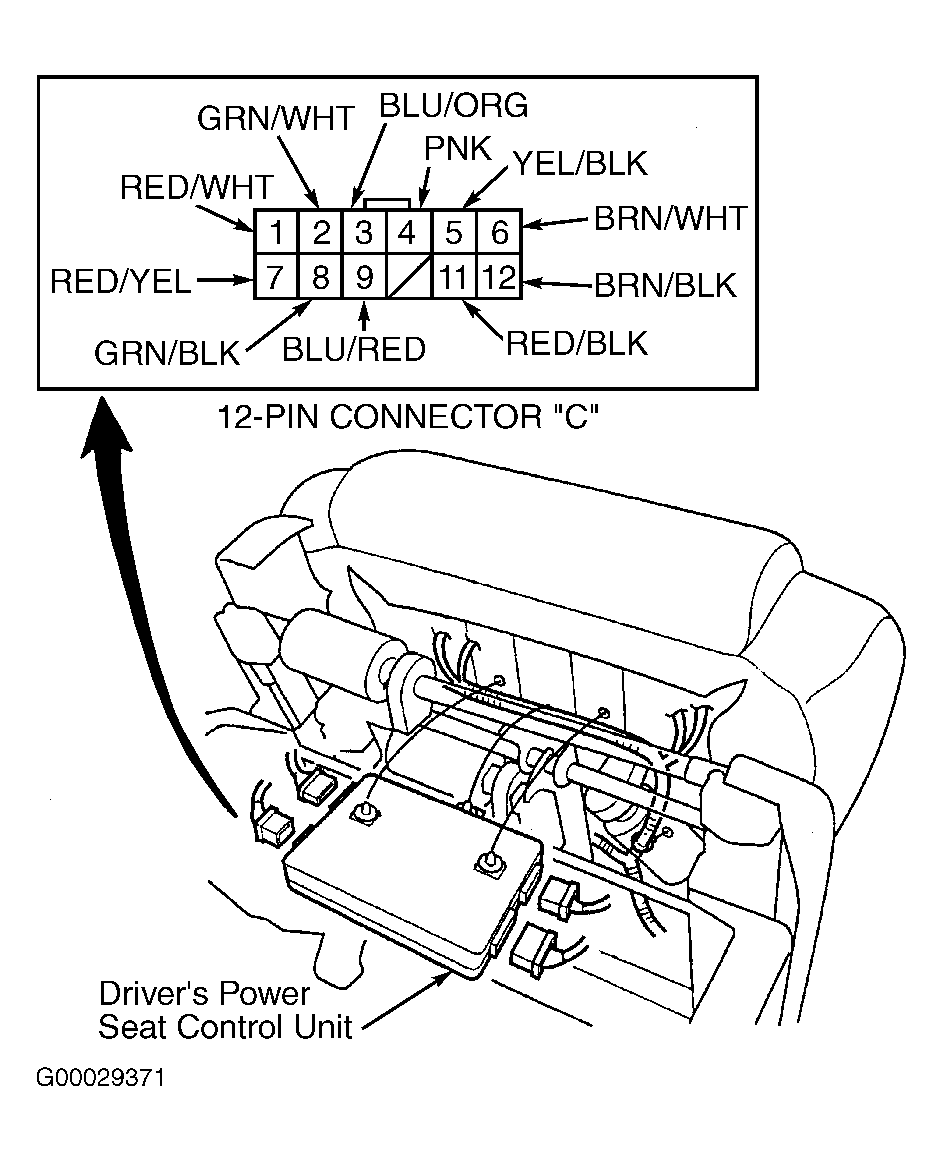

Fig 1: Locating Driver's Power Seat Control Unit
G00029371Courtesy of AMERICAN HONDA MOTOR CO., INC.
