Transfer Drive Gear Replacement

  1. Remove the transfer shaft (A) from the transfer drive gear (B) with press adapter, bearing separator (C) and a press. See Fig 1 .
  2. Install the new transfer drive gear (A) on the transfer shaft (B) with driver and a press. See Fig 2 .

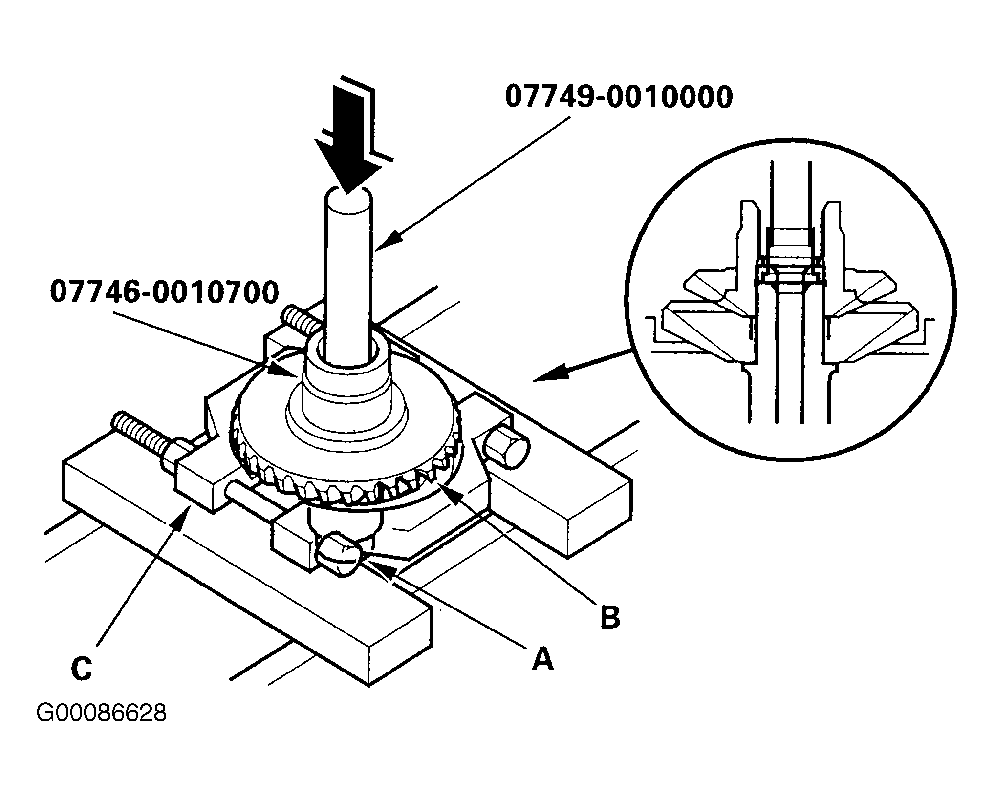

Fig 1: Removing Transfer Shaft From Gear
G00086628Courtesy of AMERICAN HONDA MOTOR CO., INC.

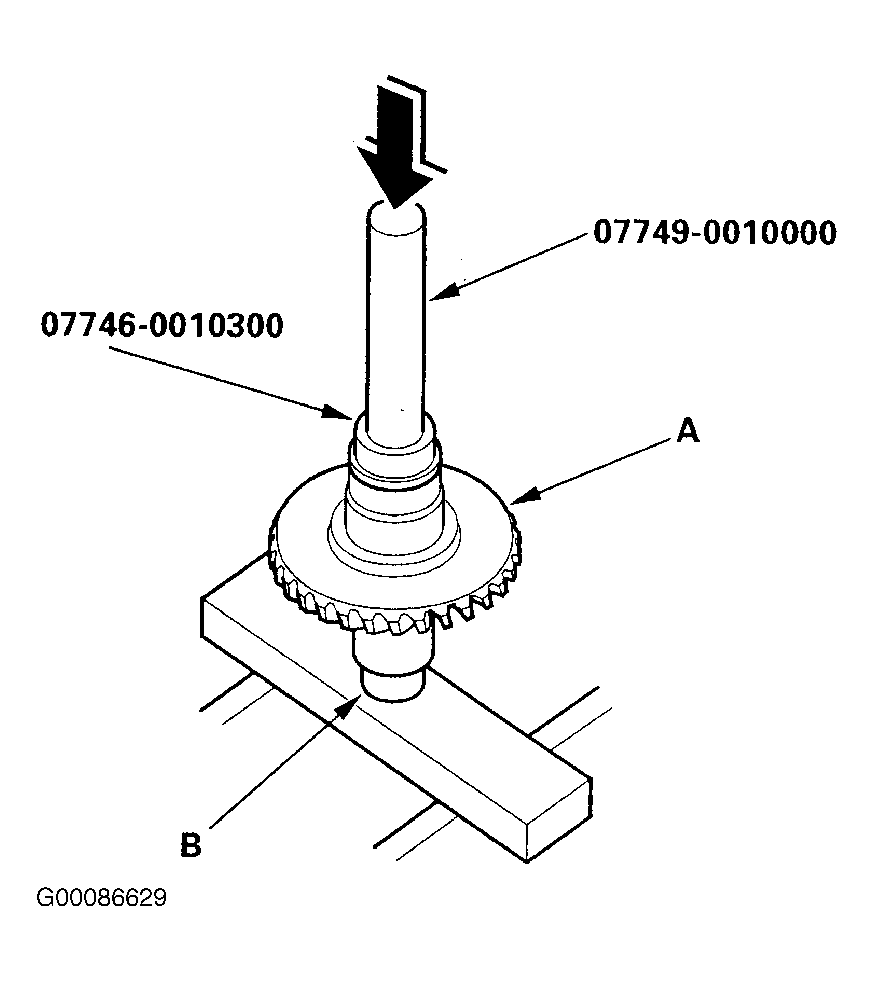

Fig 2: Installing Transfer Gear On Shaft
G00086629Courtesy of AMERICAN HONDA MOTOR CO., INC.
