Shift Lock Solenoid: Installation

NOTE: Letter references in parenthesis in the following steps, are found in illustration. See Fig 1.
  1. Install the shift lock solenoid plunger (A) and plunger spring (B) in the new shift lock solenoid (C). See Fig 1.
  2. Install the shift lock solenoid on the detent bracket (D) by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop (E).
  3. Install the detent bracket on the bracket base with the bolts and nuts.
  4. Install the A/T gear position indicator panel/bracket assembly and shift lever knob. See Figure.
  5. Install the gearshift lever assembly. See GEARSHIFT LEVER ASSEMBLY .
  6. Install the center console, console panel, and related parts. See CENTER CONSOLE .

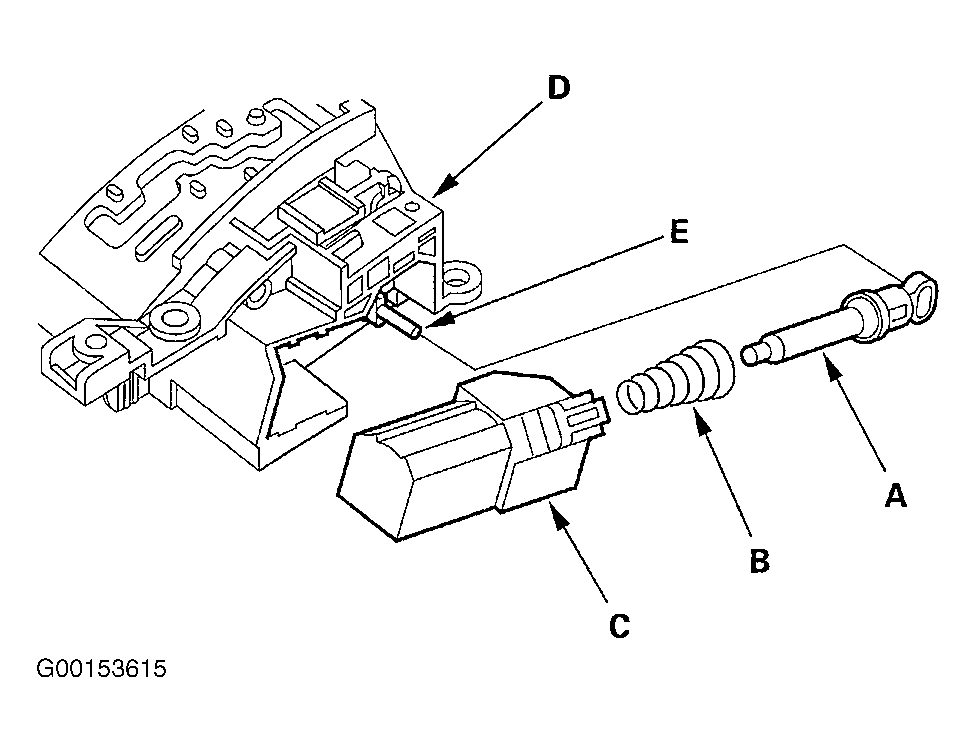

Fig 1: Removing Shift Lock Solenoid
G00153615Courtesy of AMERICAN HONDA MOTOR CO., INC.
