Repair and Diagnosis: Electrical: Starters: Overhaul: Starter: Reassembly

1. Install the armature into the housing.
2. Place the brush holder assembly on the armature, move the brush holder (A) down to the armature. See Fig 1.
3. Install the end cover to retain the brush holder. See Fig 2.

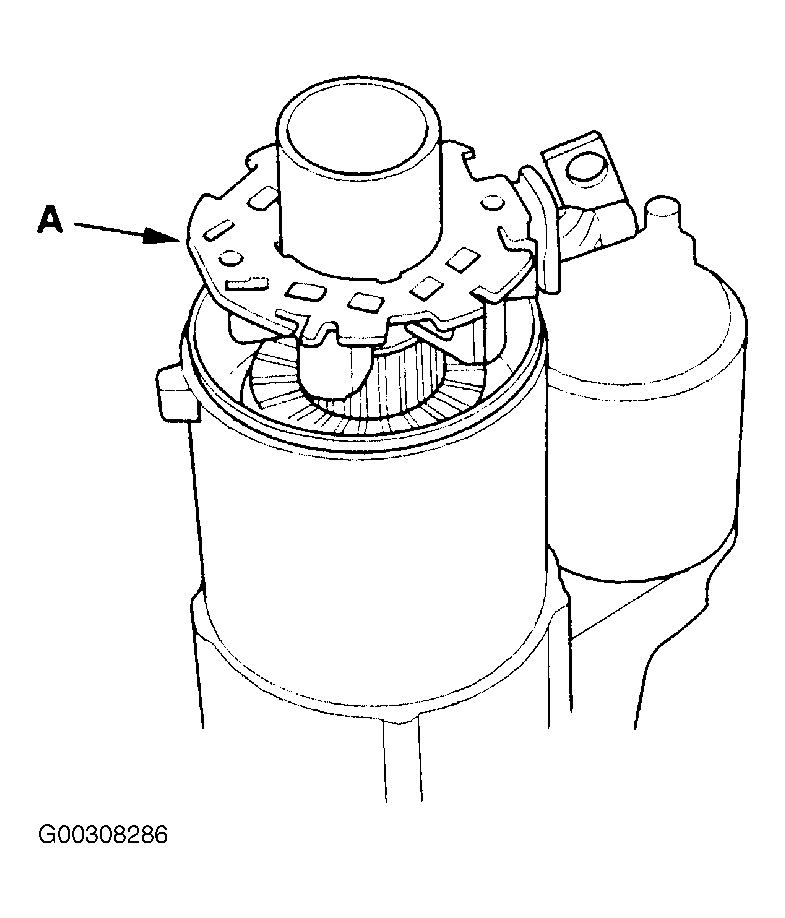

Fig 1: Placing Brush Holder Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Installing End Cover

Courtesy of AMERICAN HONDA MOTOR CO., INC.
