A/T Gear Position Indicator
- Check A/T gear position indicator switch. See A/T GEAR POSITION SWITCH TEST
under COMPONENT TESTS. If problem exists, replace A/T gear position switch and retest system. If problem does not exist, go to next step.
- Remove gauge assembly. See GAUGE ASSEMBLY
under REMOVAL & INSTALLATION. Disconnect gauge assembly connectors. Check gauge assembly connectors for loose, damaged or corroded terminals. If problem exists, repair connector(s). If problem does not exist, go to next step.

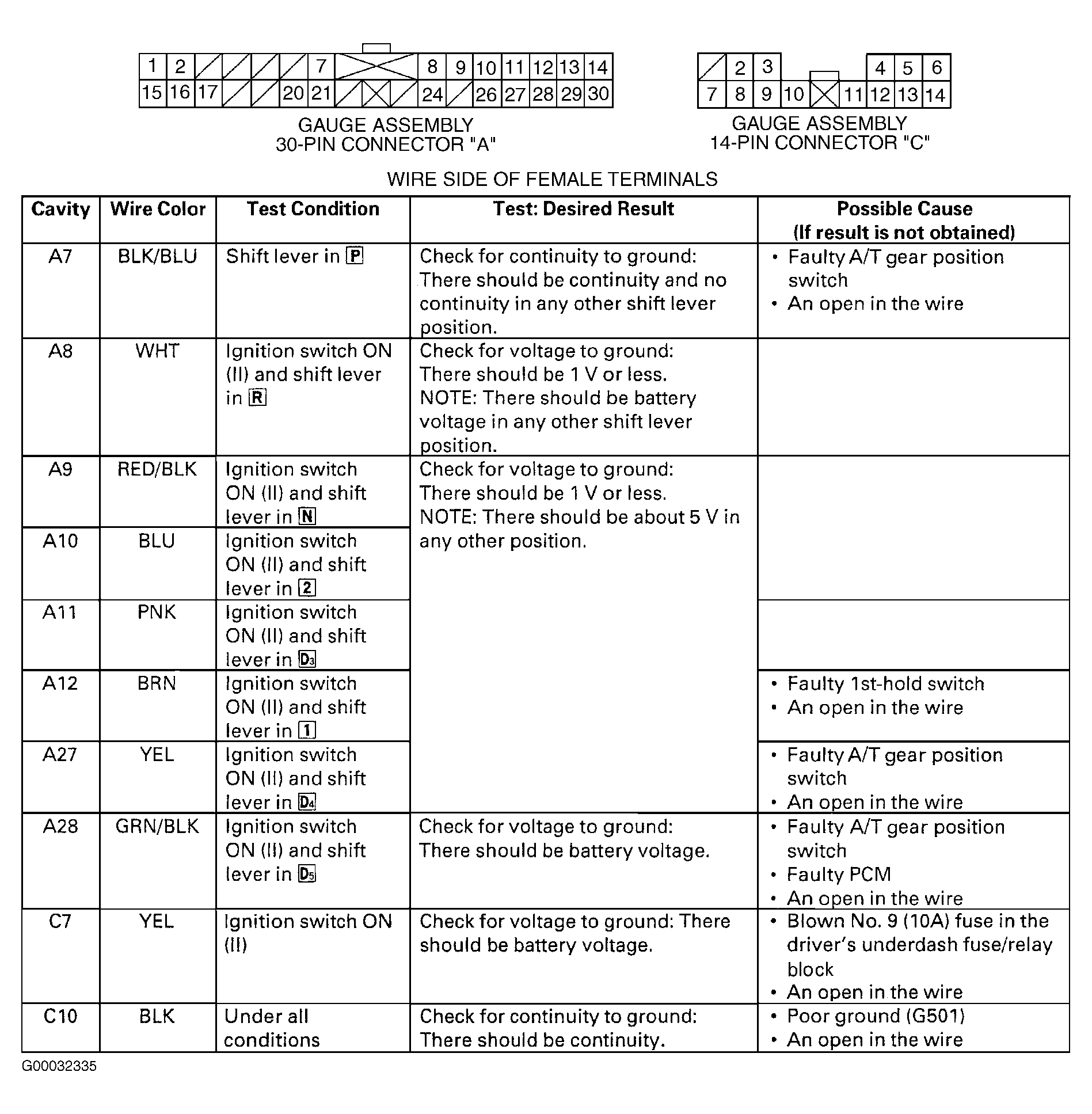

- Perform gear position indicator input test. See Fig 1
. If input tests are not as specified, repair appropriate wire between A/T gear position switch and gauge assembly connector or Powertrain Control Module (PCM) connector. If input tests are as specified, replace printed circuit board.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
