Dash Lights Brightness Controller

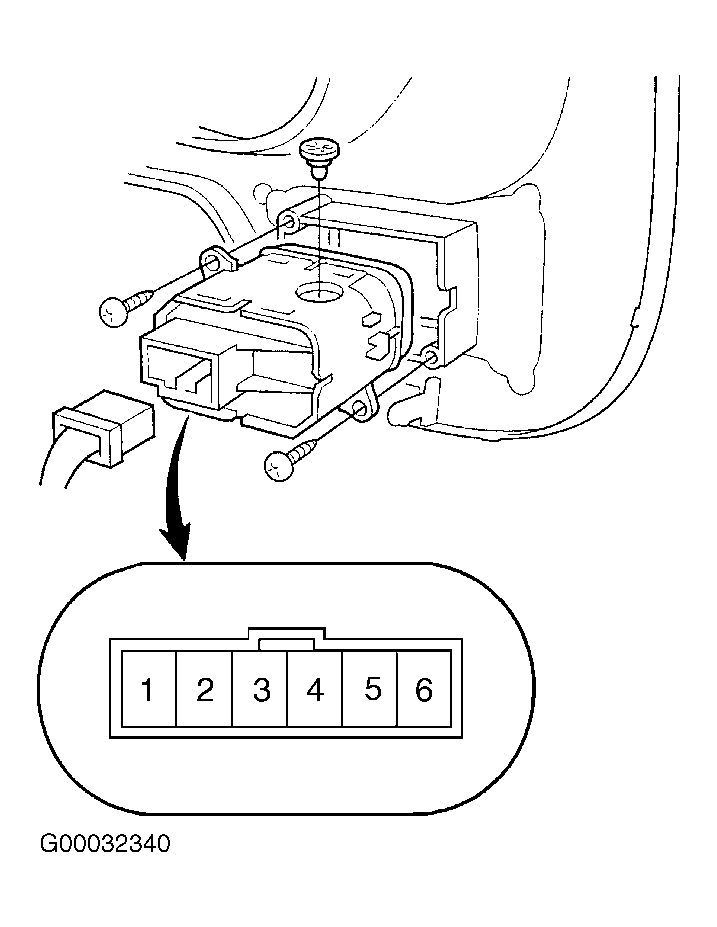

Remove gauge assembly trim panel. See GAUGE ASSEMBLY TRIM PANEL under REMOVAL & INSTALLATION. Measure resistance between dash light brightness controller terminals No. 4 and 5 (component side) while rotating adjusting dial. See Fig 1 . As adjusting dial is turned, resistance should vary between 0-20,000 ohms. If resistance is not as specified, replace dash light brightness controller.
