Home >> Acura >> 2002 >> MDX Base, BGHA >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generators & Regulators >> Overhaul

Generators & Regulators: Overhaul

NOTE: Use exploded view of generator for overhaul. See Fig 1 .

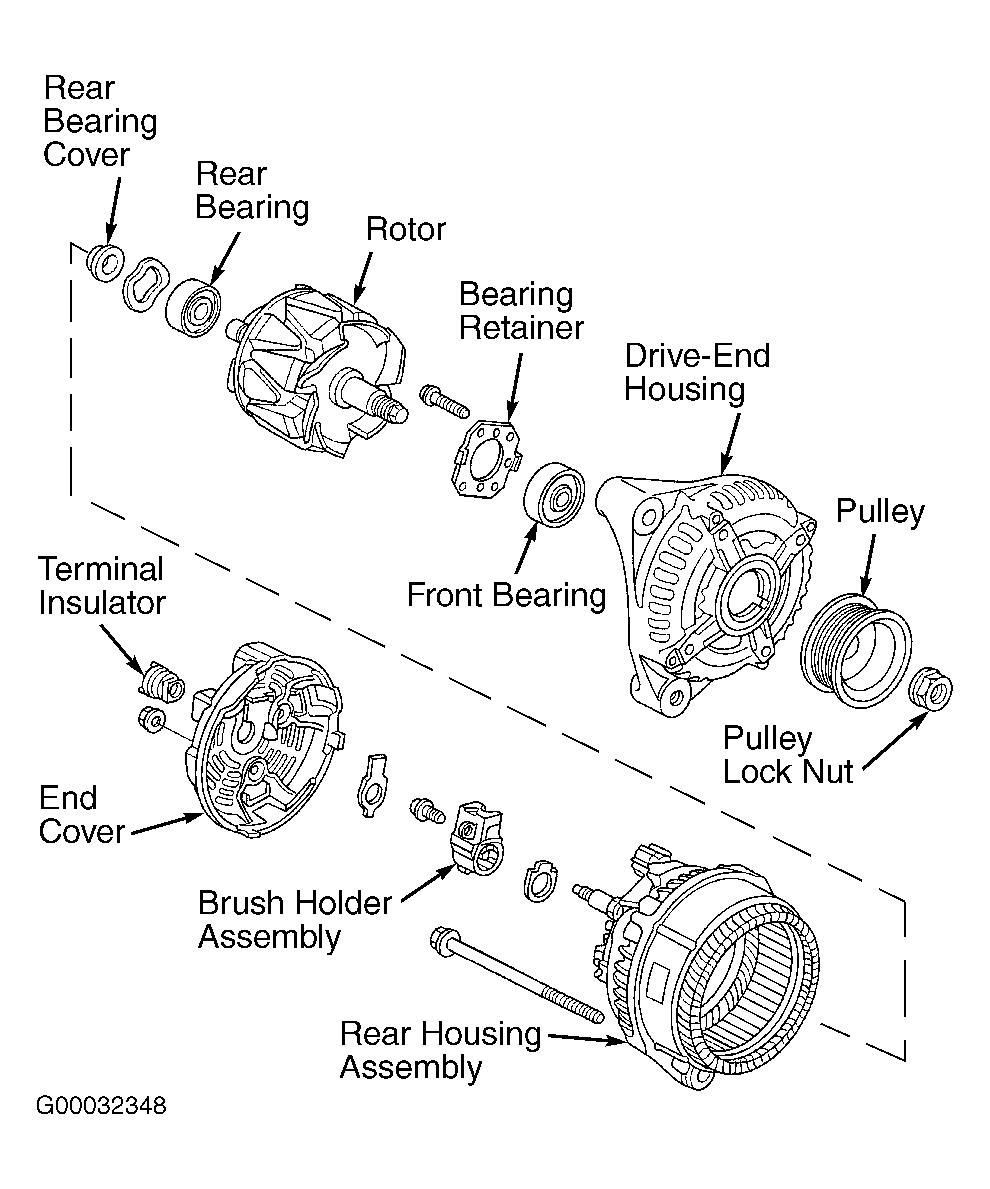

Fig 1: Exploded View Of Generator

G00032348

Courtesy of AMERICAN HONDA MOTOR CO., INC.
