Generators & Regulators: Adjustments

Automatic belt tensioner is used to maintain proper drive belt adjustment. Ensure pointer on automatic belt tensioner housing is not beyond edge of indicator rib on tensioner base. See Fig 1 . Replace belt if stretched beyond its limit.

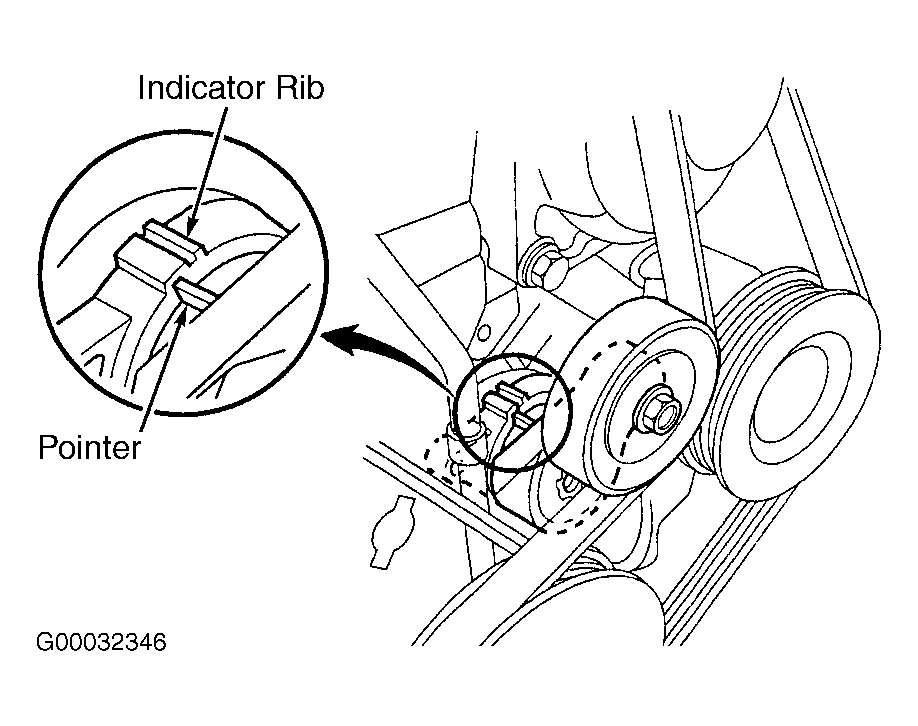

Fig 1: Checking Belt Tension On Automatic Tensioner

Courtesy of AMERICAN HONDA MOTOR CO., INC.
