Pin Voltage Charts

See Fig 1 and Fig 2 for pin voltage chart.

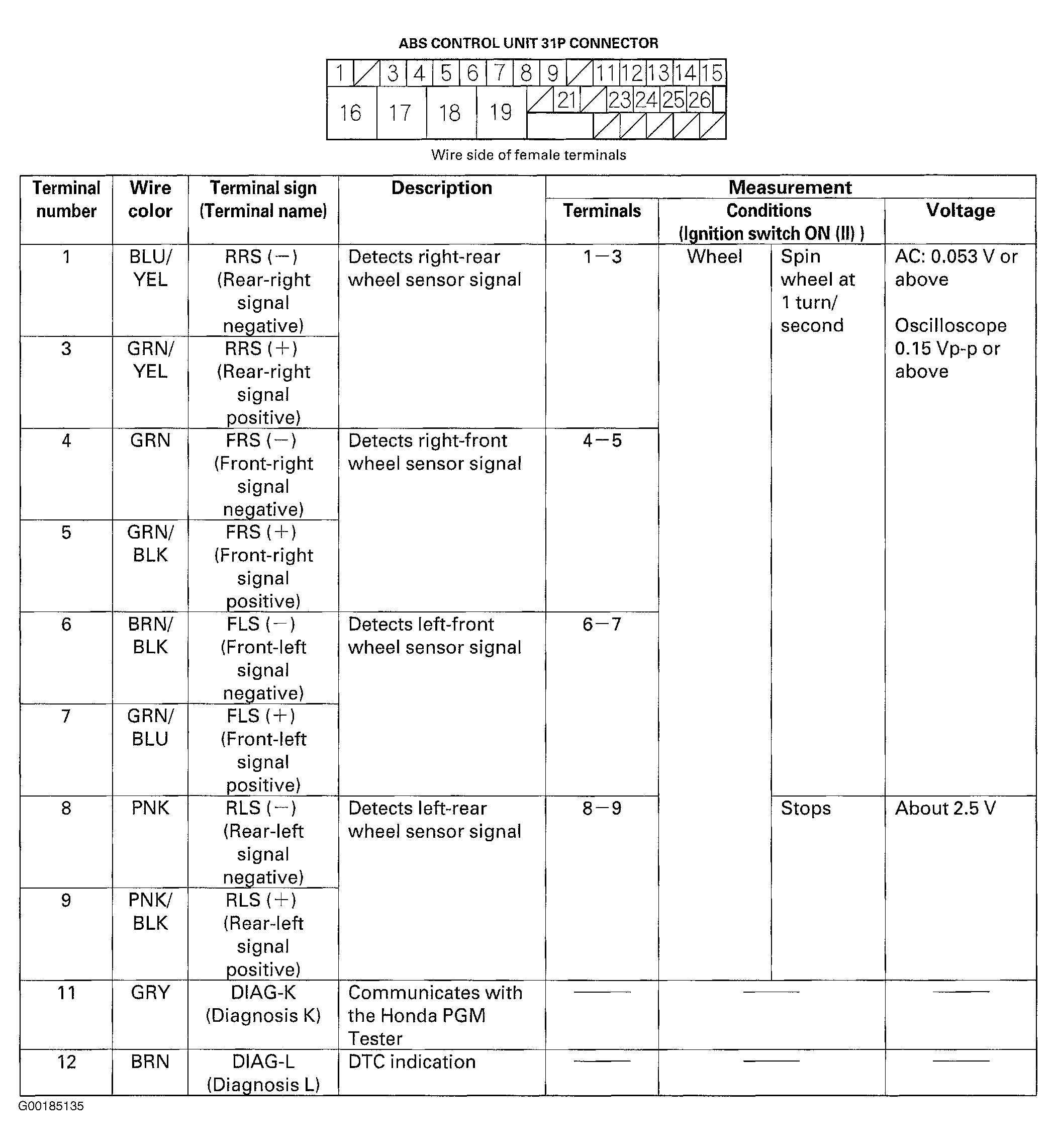

Fig 1: ABS Control Unit Inputs & Outputs Pin Voltage Chart (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

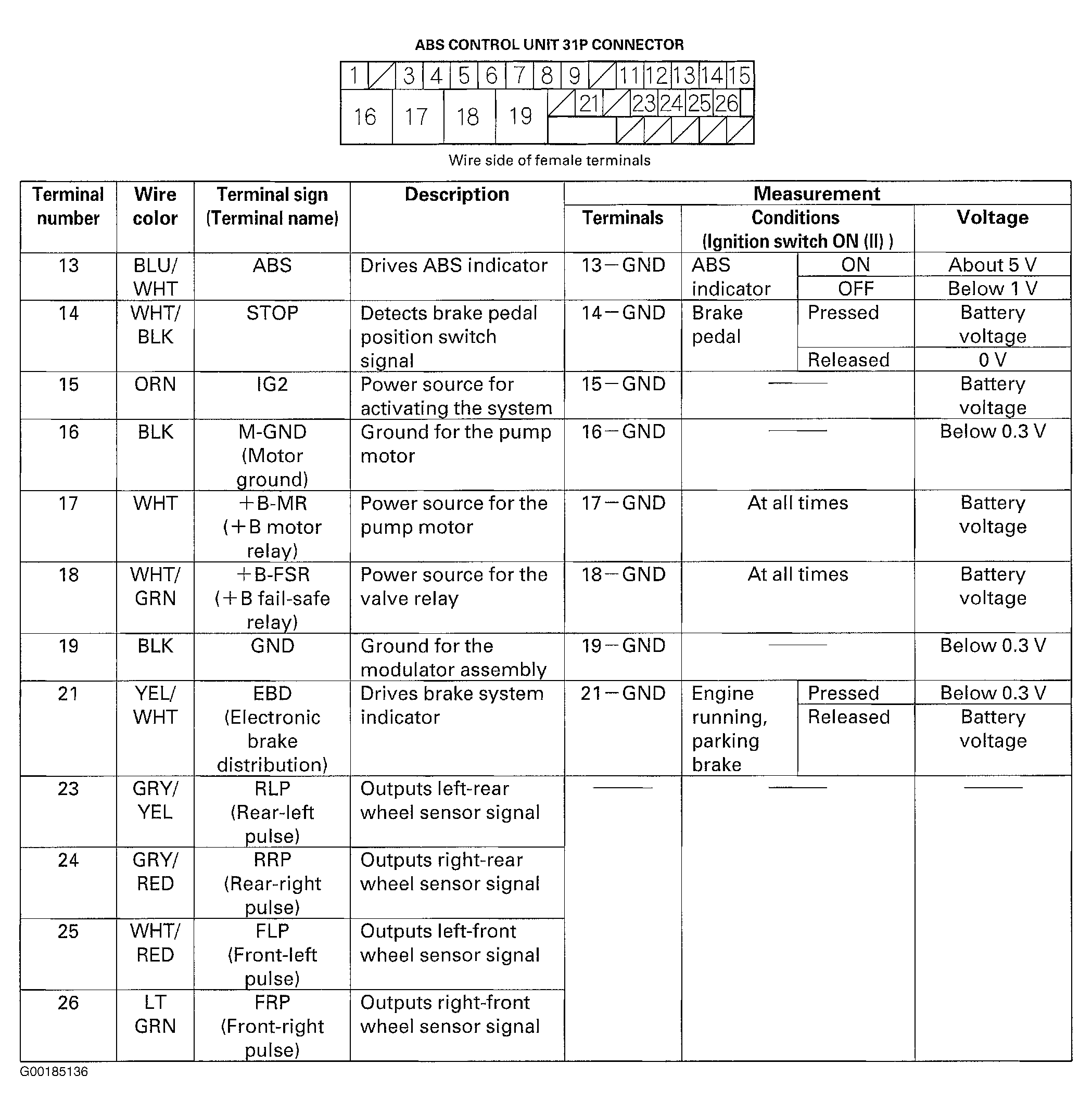

Fig 2: ABS Control Unit Inputs & Outputs Pin Voltage Chart (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
