DTC 11, 13, 15 & 17: Wheel Sensor & Open/Short-To-Body Ground/Short-To-Power

Code Description

1. DTC 11

   Right-Front wheel sensor, Open/Short-To-Body Ground/Short-To-Power
2. DTC 13

   Left-Front wheel sensor, Open/Short-To-Body Ground/Short-To-Power
3. DTC 15

   Right-Rear wheel sensor, Open/Short-To-Body Ground/Short-To-Power
4. DTC 17

   Left-Rear wheel sensor, Open/Short-To-Body Ground/Short-To-Power

For DTC testing flow chart, see Fig 1 .

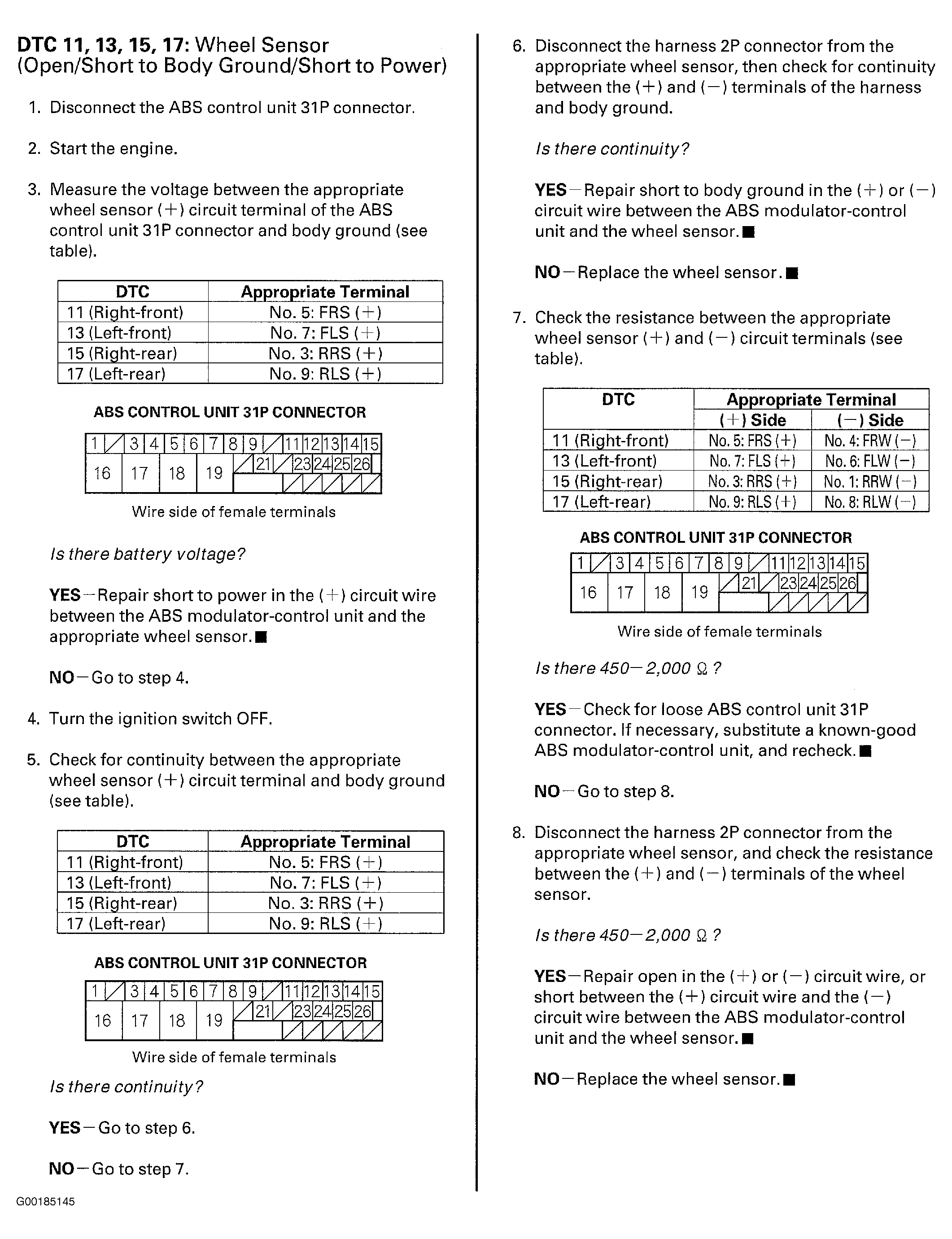

Fig 1: DTC 11, 13, 15 & 17 Wheel Sensor Testing Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
