Driver's Window Motor

Remove door panel. See DOOR PANEL  . Unplug 4-pin connector from motor. Using jumper wires, connect terminal No. 1 to battery voltage and terminal No. 2 to ground. See Fig 1 . Check for motor operation. Disconnect lead immediately when motor stops running. Reverse jumper wires and retest. Replace motor if it does not operate in both directions.

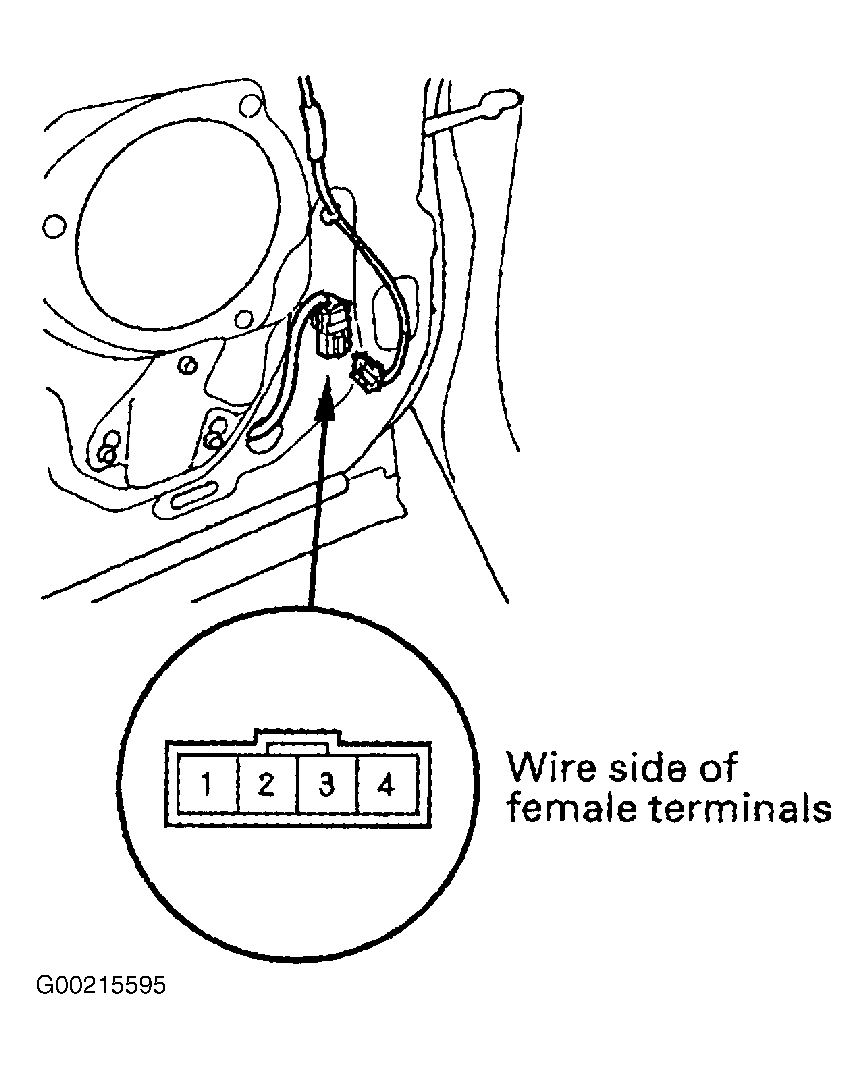

Fig 1: Identifying Driver's Window Motor Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
