Door Glass
- Make adjustments with vehicle on flat level surface. Check weather stripping for damage or deterioration. Remove door panel and plastic cover. See DOOR PANEL
under REMOVAL & INSTALLATION.

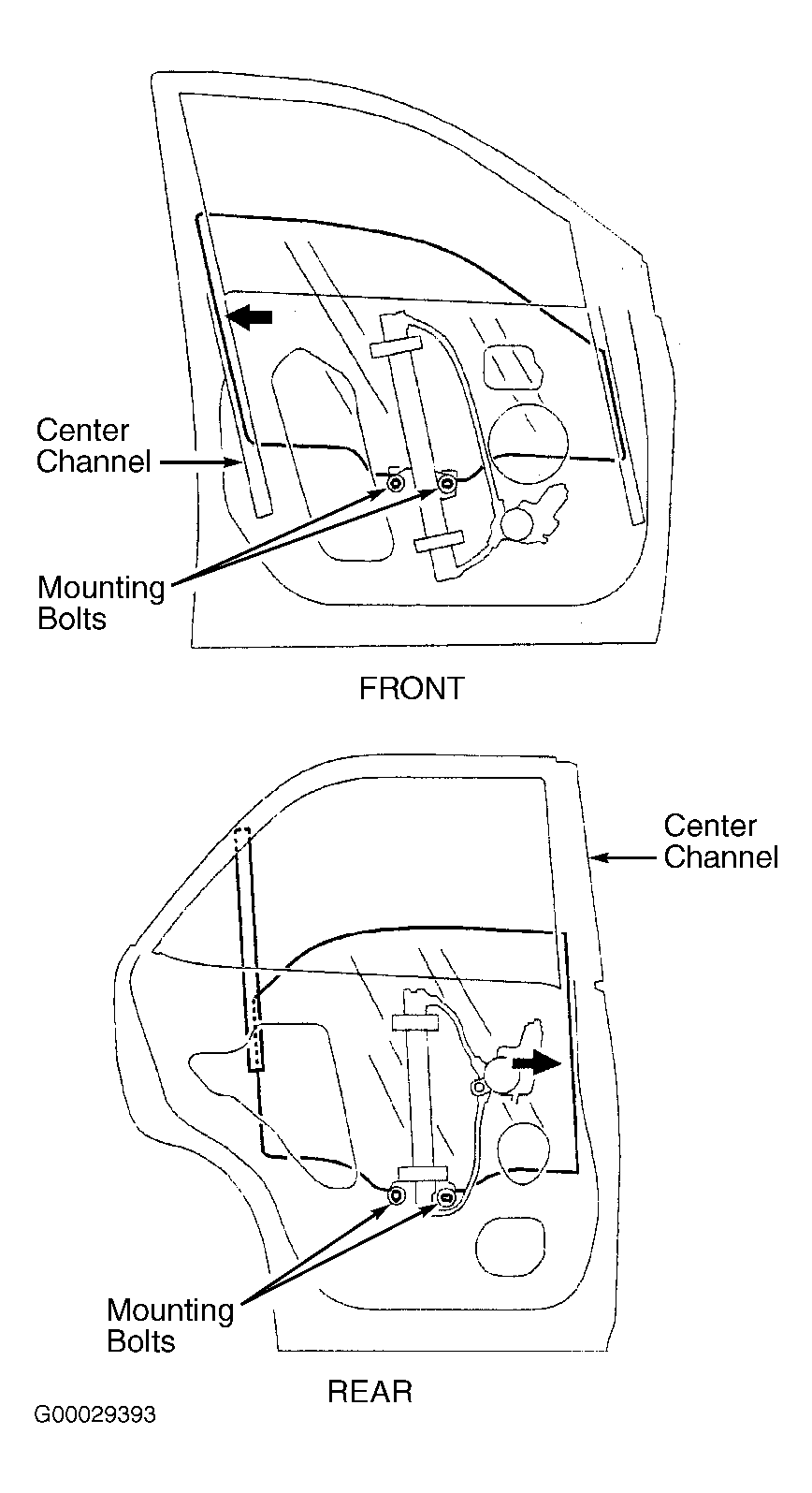

- Raise glass enough to access glass mounting bolts. Loosen glass mounting bolts. Push glass rearward against center channel on front doors, or forward against center channel on rear doors. See Fig 1
. Tighten glass mounting bolts.
- Ensure window operates smoothly. Raise glass fully. Check for even contact between glass and run channel. Adjust as necessary. Check for leaks using low pressure water.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
