Driver's Power Seat Motor
CAUTION:
Disconnect battery power immediately after motor stops running. If battery power is left connected, damage to motor may occur.

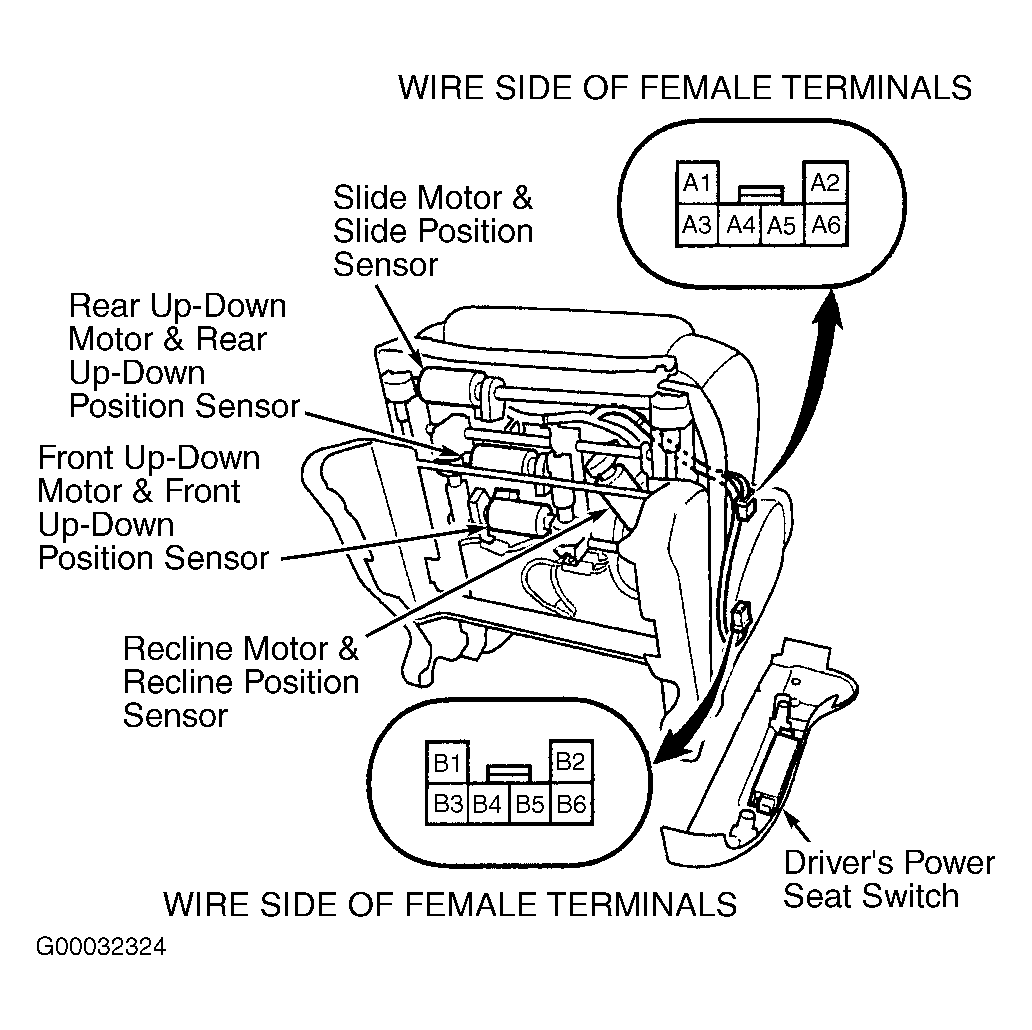

Remove driver's seat. See FRONT SEAT under REMOVAL & INSTALLATION. Disconnect power seat switch connectors. See Fig 1 . Apply battery voltage to each terminal as specified in DRIVER'S POWER SEAT MOTOR table. If any motor fails any portion of test, check wiring between power seat switch connector and motor. Repair as necessary. If wiring is okay, replace faulty motor.
DRIVER'S POWER SEAT MOTOR
| Position | Battery Connection (+) & (-) At Terminals | |
|---|---|---|
| Slide Motor | ||
| Forward | A5 & A1 | |
| Backward | A1 & A5 | |
| Front Up-Down Motor | ||
| Up | A3 & A4 | |
| Down | A4 & A3 | |
| Rear Up-Down Motor | ||
| Up | A2 & A6 | |
| Down | A6 & A2 | |
| Recline | ||
| Forward | B3 & B4 | |
| Backward | B4 & B3 | |
