Cruise Control Main Switch

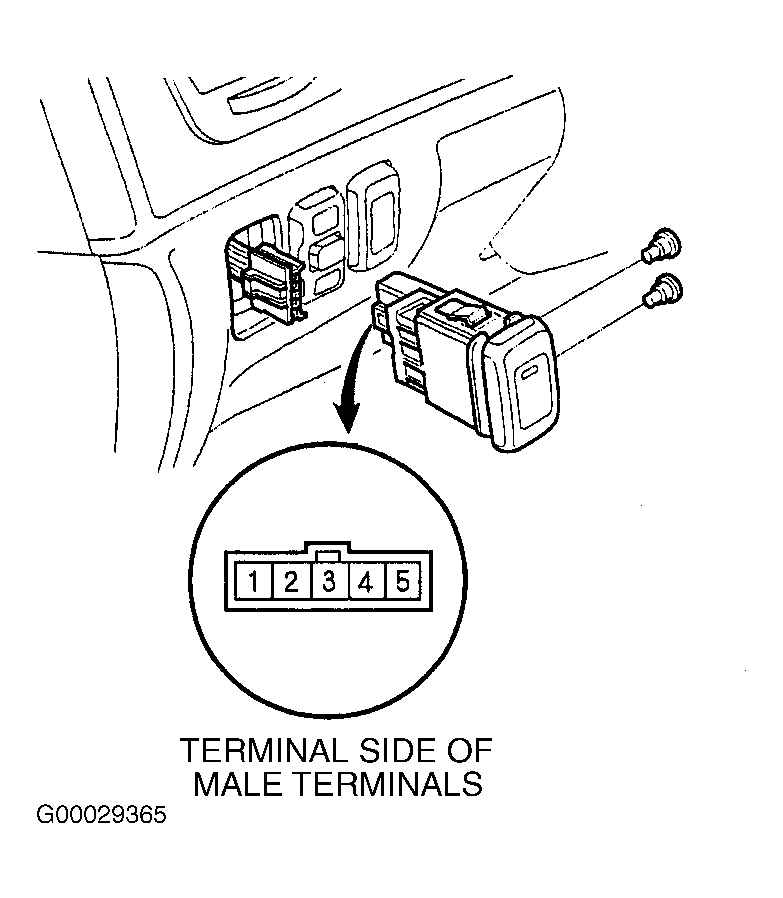

Turn ignition off. Carefully pry cruise control main switch out of instrument panel. Disconnect cruise control main switch 5-pin connector. Check for continuity between specified cruise control main switch terminals. See CRUISE CONTROL MAIN SWITCH CONTINUITY TEST table. See Fig 1. If continuity is not as specified, replace cruise control main switch.
CRUISE CONTROL MAIN SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals No. |
|---|---|
| OFF | 1 & 2; 4 & 5 |
| ON | 1, 2 & 3; 4 & 5 |
