Passenger's Multiplex Control Unit

Unit is located on fuse/relay block behind passenger-side kick panel. See Fig 1 .

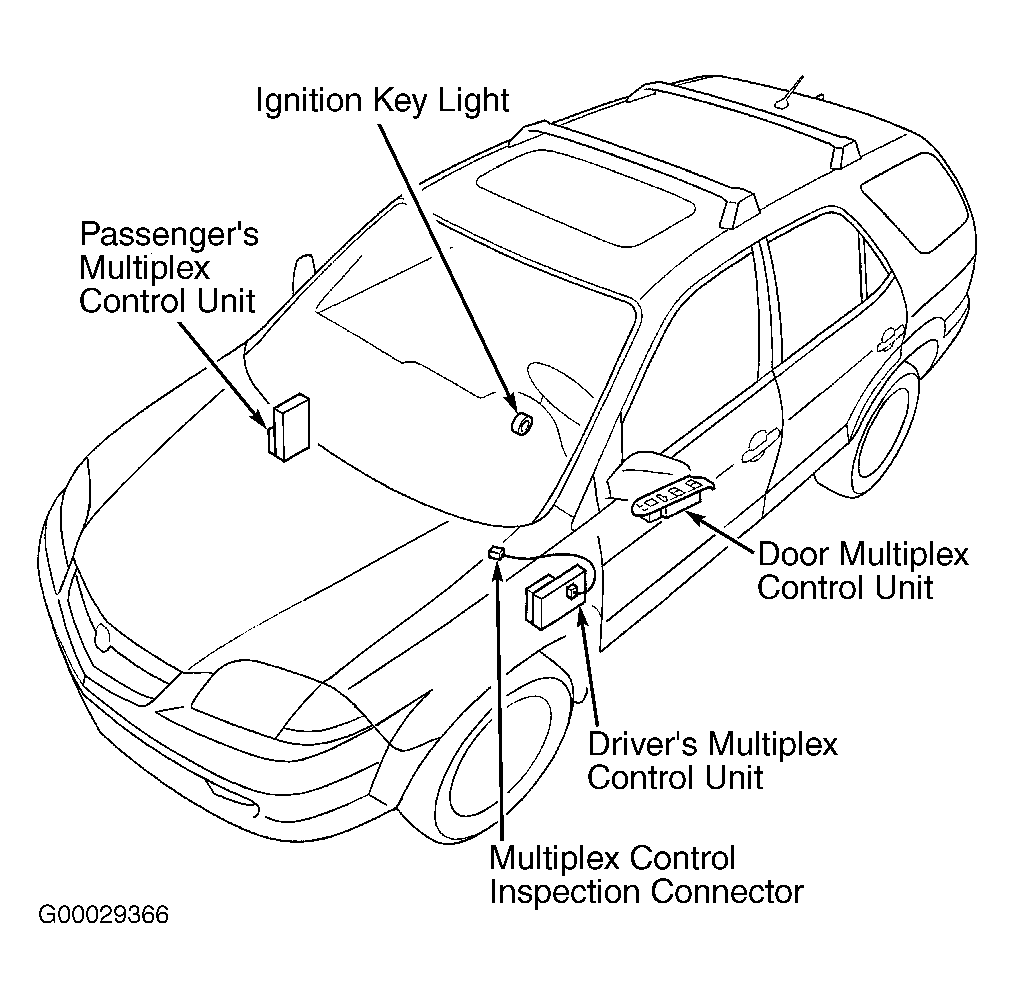

Fig 1: Locating Multiplex Control System Components
G00029366Courtesy of AMERICAN HONDA MOTOR CO., INC.
