A/C Refrigerant Oil Replacement

Recommended PAG oil: DENSO ND-OIL 8:

Add the recommended refrigerant oil in the amount listed if you replace any of the following parts.

To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
Do not spill the refrigerant oil on the vehicle; it may damage the paint; if it gets on the paint, wash it off immediately.

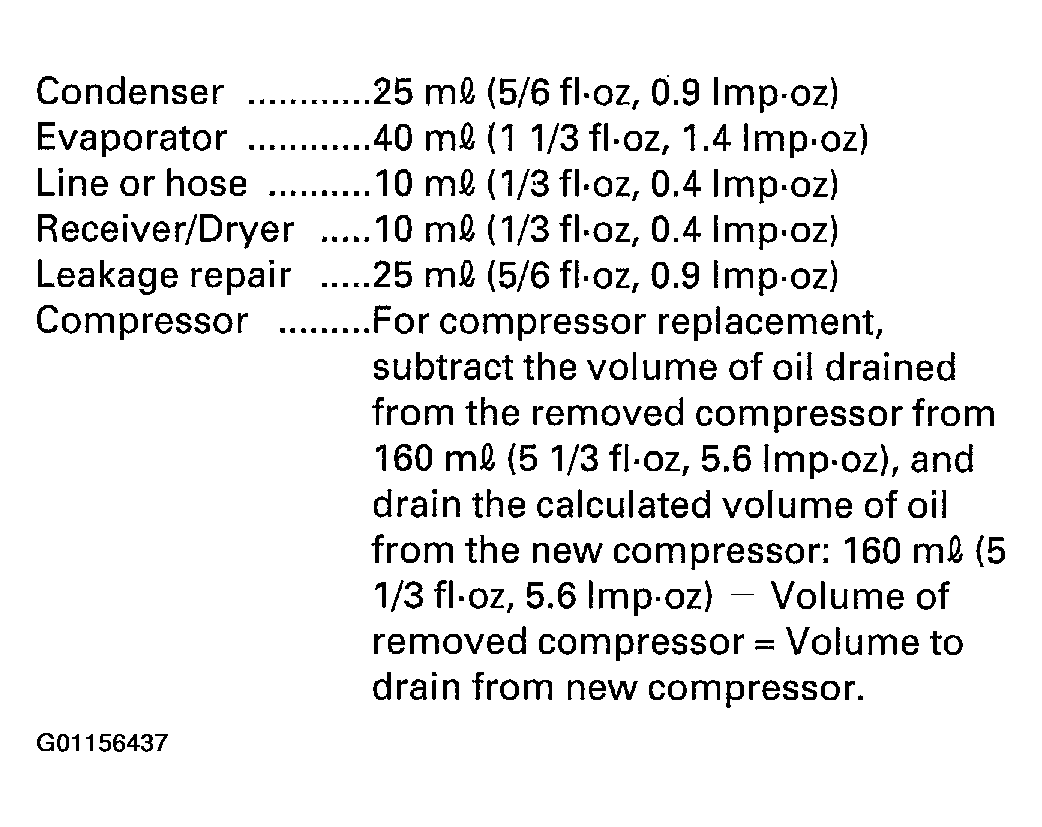

Fig 1: Refrigerant Oil Replacement Quanities
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Even if no oil is drained from the removed compressor, don't drain more than 50 ml (1 2/3 fl.oz, 1.8 lmp.oz) from the new compressor.

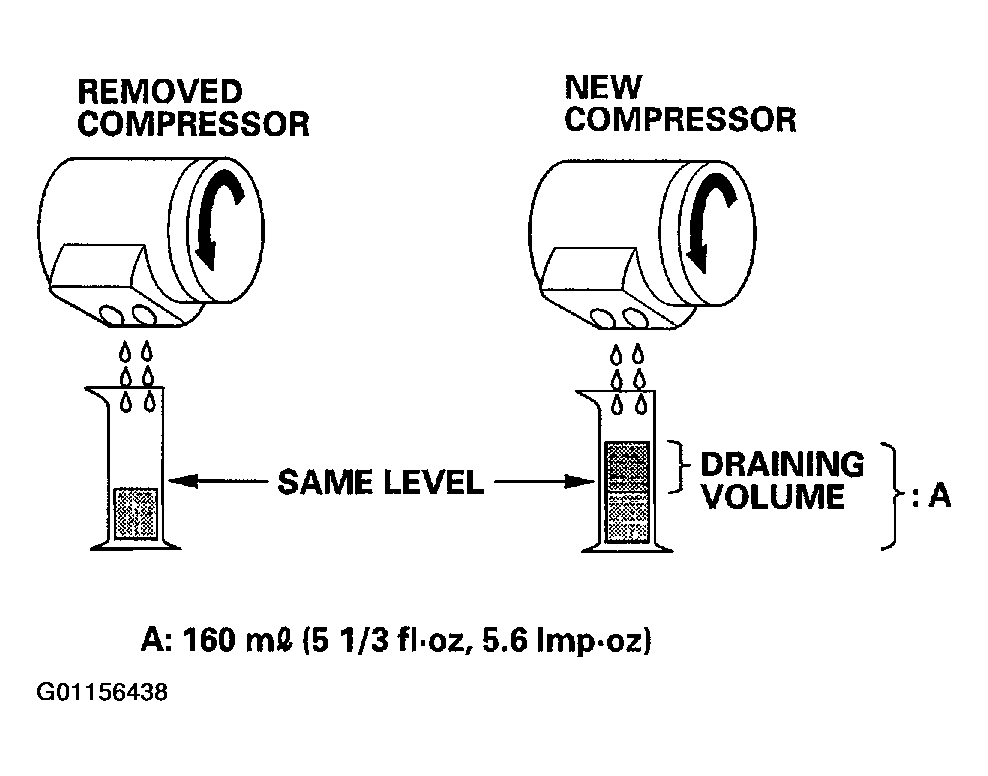

Fig 2: Draining Oil From The Removed Compressor

Courtesy of AMERICAN HONDA MOTOR CO., INC.

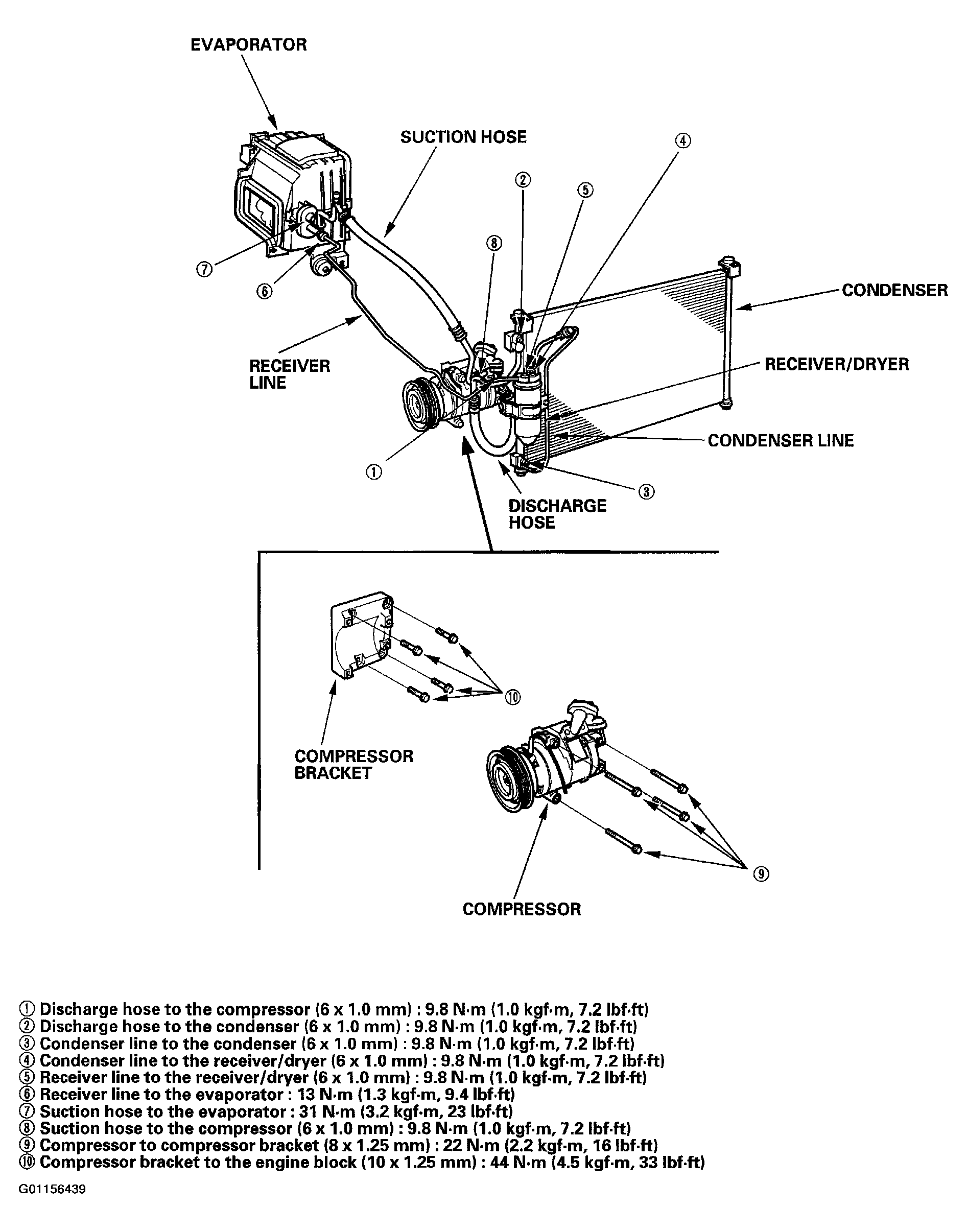

Fig 3: Locating System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
