Hazard Warning Switch

Remove instrument cluster assembly. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Remove hazard warning switch. Check for continuity between specified switch terminals with switch in ON and OFF positions. See HAZARD WARNING SWITCH CONTINUITY table. See Fig 1. If continuity is not as specified, replace hazard warning switch. If continuity is as specified, check turn signal/hazard relay input. See TURN SIGNAL/HAZARD RELAY INPUT under SYSTEM TESTS.

HAZARD WARNING SWITCH CONTINUITY

Switch Position

⁽¹⁾ Check Continuity Between Terminals No.

Off

5 & 10; 6 & 7

1, 2 & 3; 5 & 9; 6 & 7

⁽¹⁾	Illumination bulb is positioned between terminals No. 6 and 7.

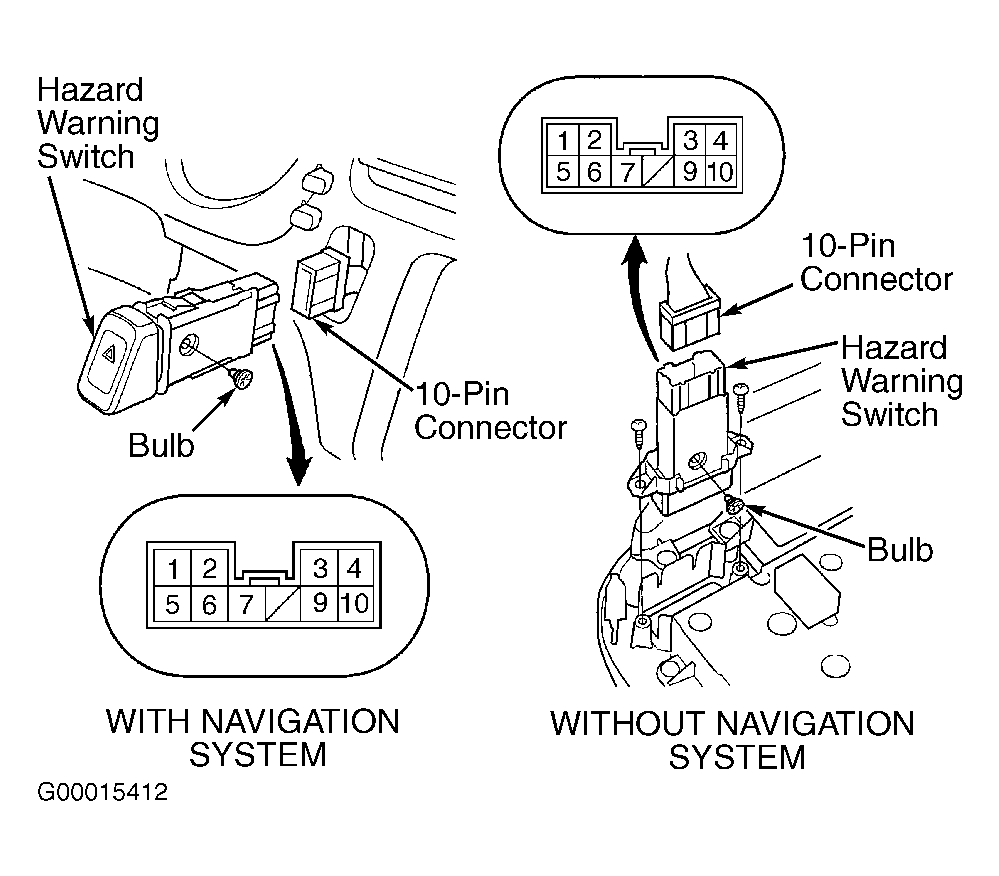

Fig 1: Identifying Hazard Warning Switch Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
