OEM General Information - 3.2CL
>>
Lift and Support Points
Lift and Support Points

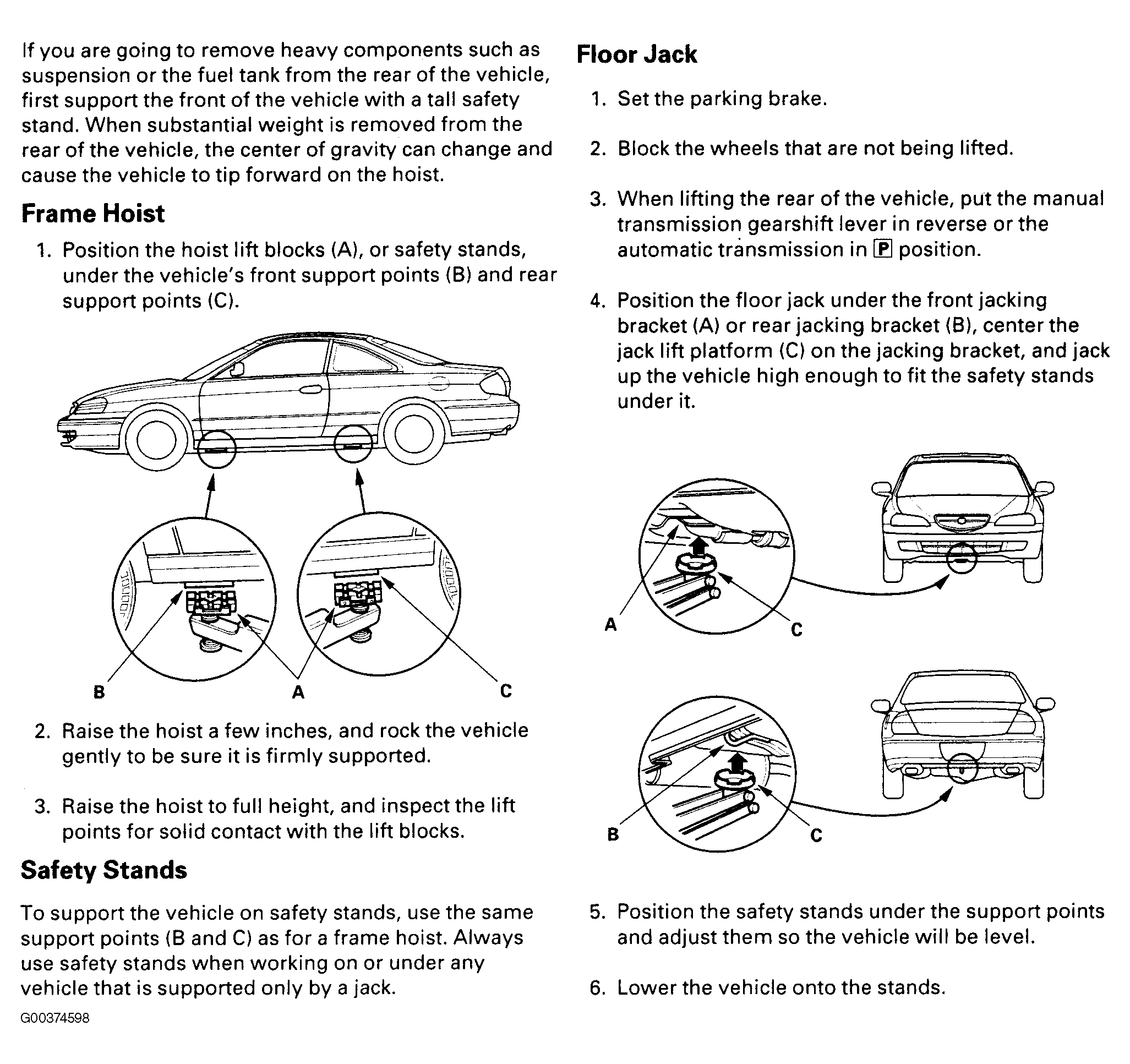

Fig 1: Lifting & Supporting Points
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
