OnStar System Radio Frequency Modulator Unit ('03 Navigation) Connector End View

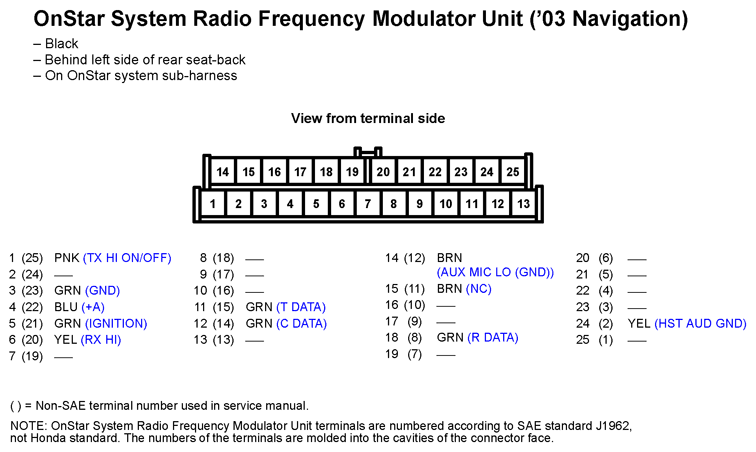

Fig 1: OnStar System Radio Frequency Modulator Unit ('03 Navigation) Connector End View
G11247365Courtesy of AMERICAN HONDA MOTOR CO., INC.
