Mode Control Motor Connector End View

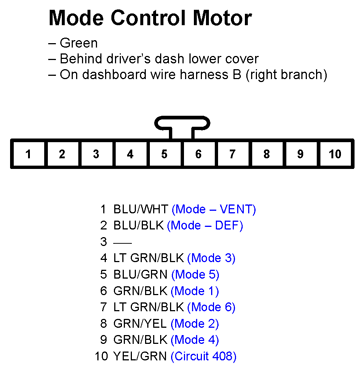

Fig 1: Mode Control Motor Connector End View

G11247294

Courtesy of AMERICAN HONDA MOTOR CO., INC.
