Ignition Key Switch/Key Light Connector End View

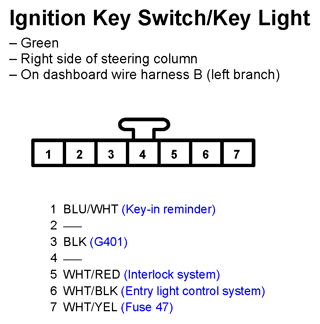

Fig 1: Ignition Key Switch/Key Light Connector End View

G11247276

Courtesy of AMERICAN HONDA MOTOR CO., INC.
