Climate Control Unit Connector End View

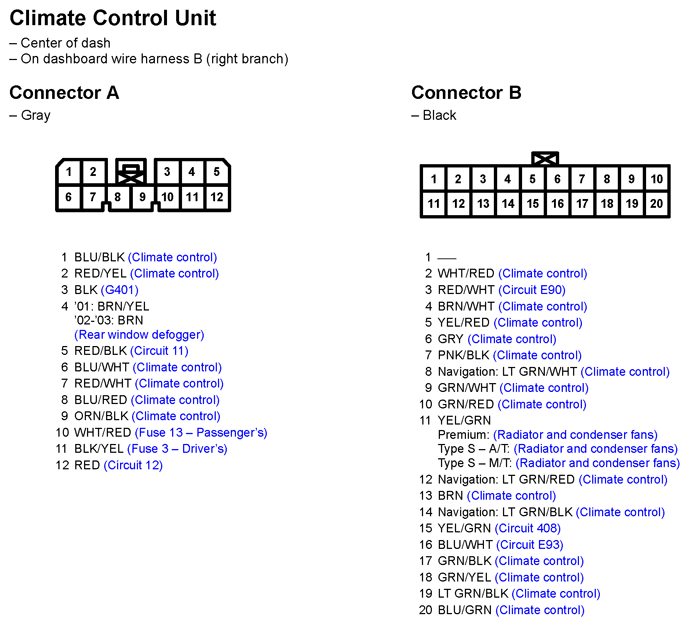

Fig 1: Climate Control Unit Connector End View

G11247331

Courtesy of AMERICAN HONDA MOTOR CO., INC.
