Navigation Unit Inputs And Outputs For Connector B (16P) ('99-02 Models)

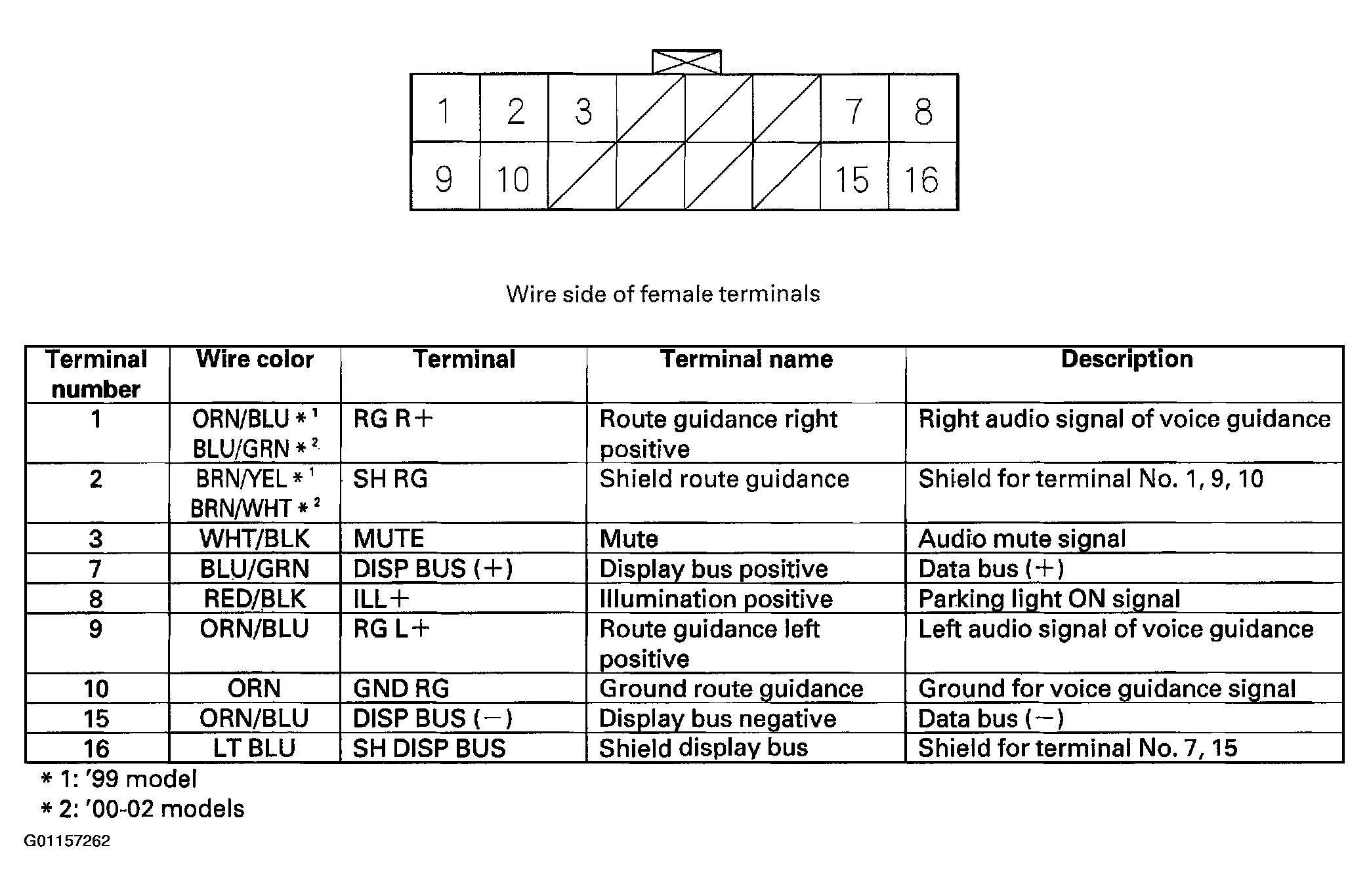

Fig 1: Identifying Navigation Unit Connector B (16P) Terminals & Inputs And Outputs ('99-02 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
