Home >> Acura >> 2002 >> 1.7EL Standard >> Repair and Diagnosis >> Transmission >> Clutch >> Component Location Index

Component Location Index

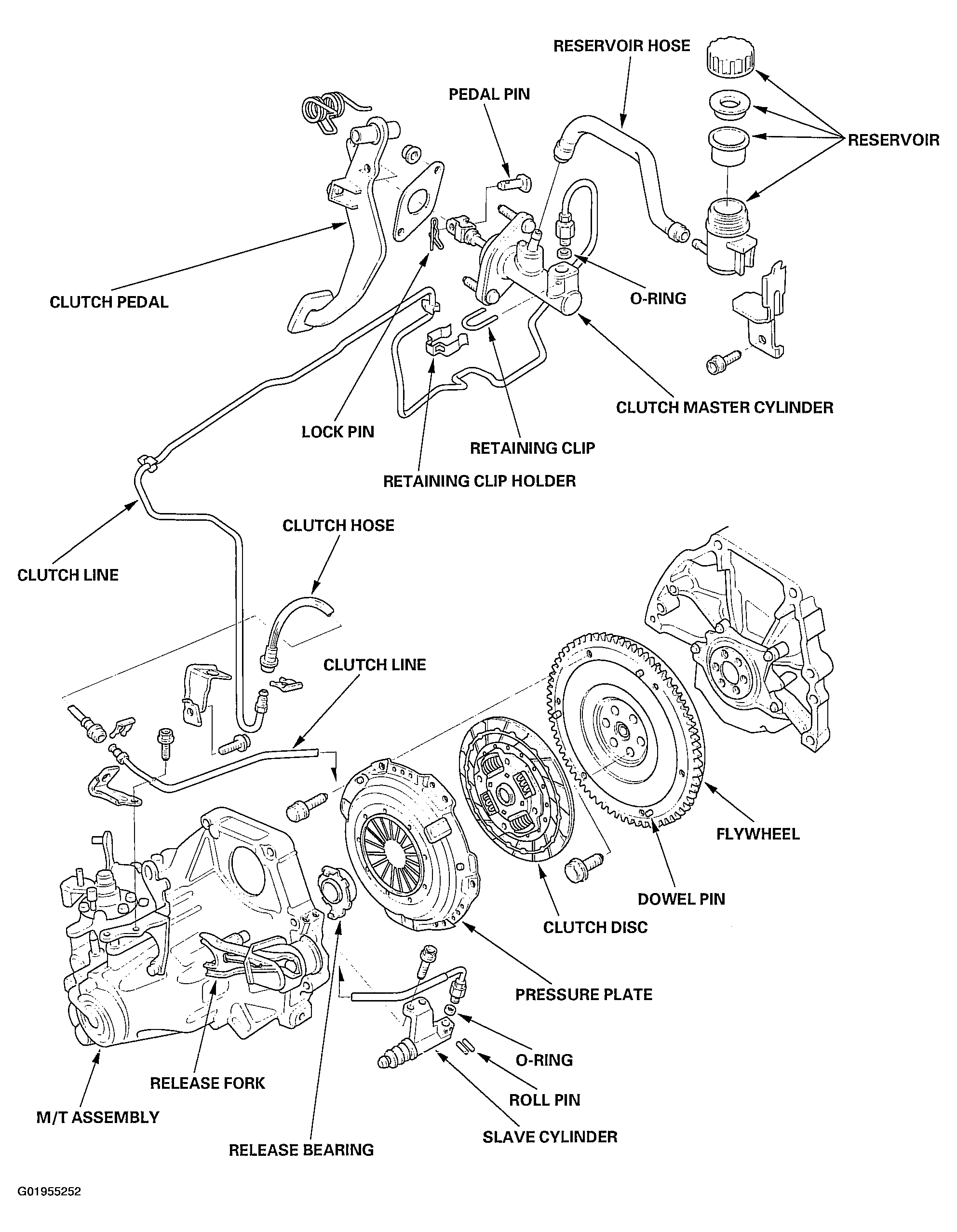

Fig 1: Locating Clutch Components

G01955252
