Oil Pump Overhaul: Notes

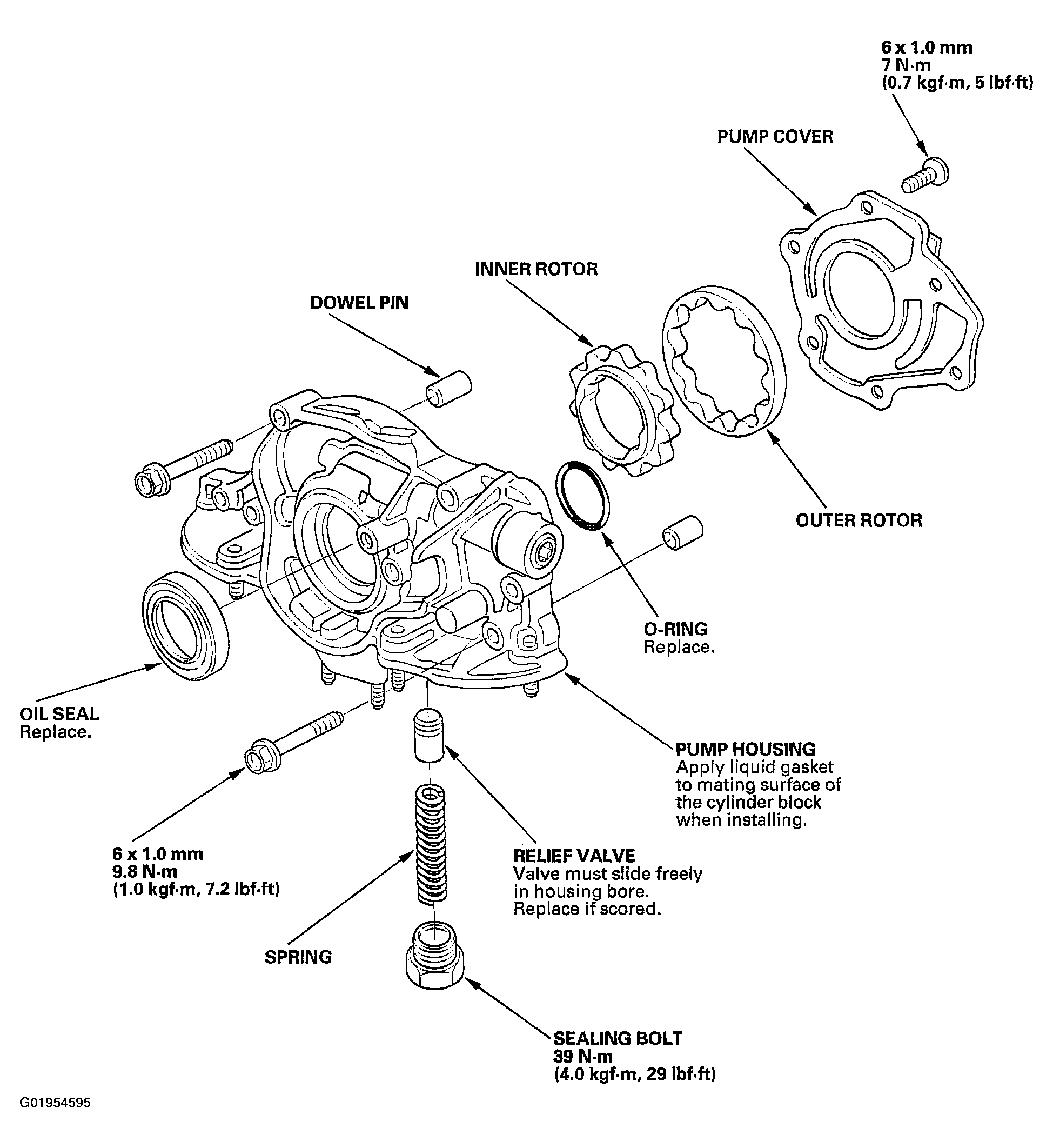

Fig 1: Exploded View Of Oil Pump Overhaul

G01954595

Special Tools Required

Driver 07749-0010000
Attachment, 52 x 55 mm 07746-0010400

NOTE: Refer to Fig 1 as needed during this procedure.
