Horn Test/Replacement

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 1P connector (B), and remove the horn (A).

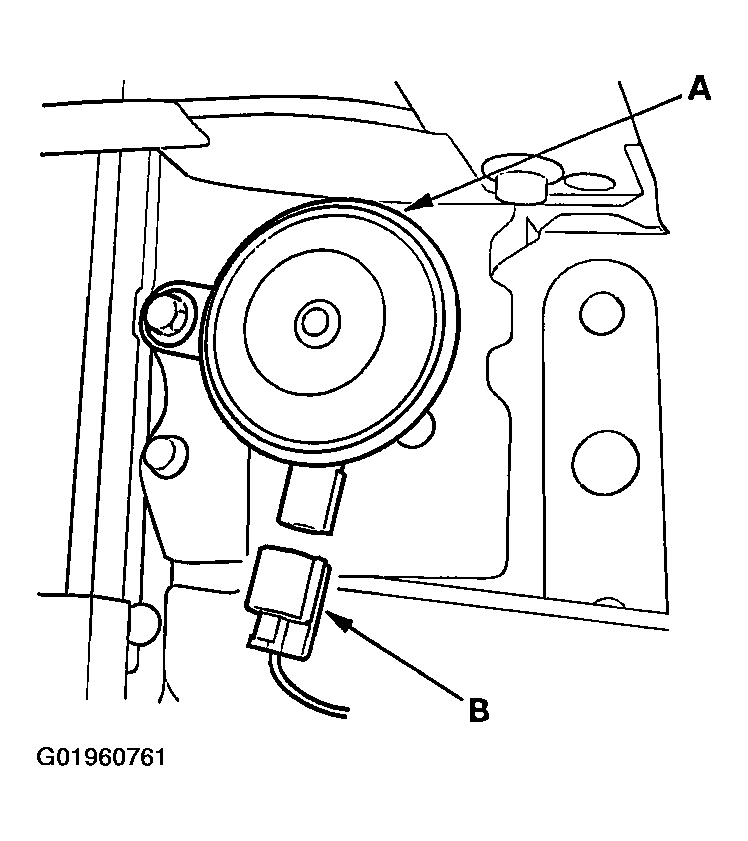

    Fig 1: Disconnecting Connector & Removing Horn
    G01960761
  3. Test the horn by connecting battery power to the terminal (A) and grounding to the bracket (B). The horn should sound.

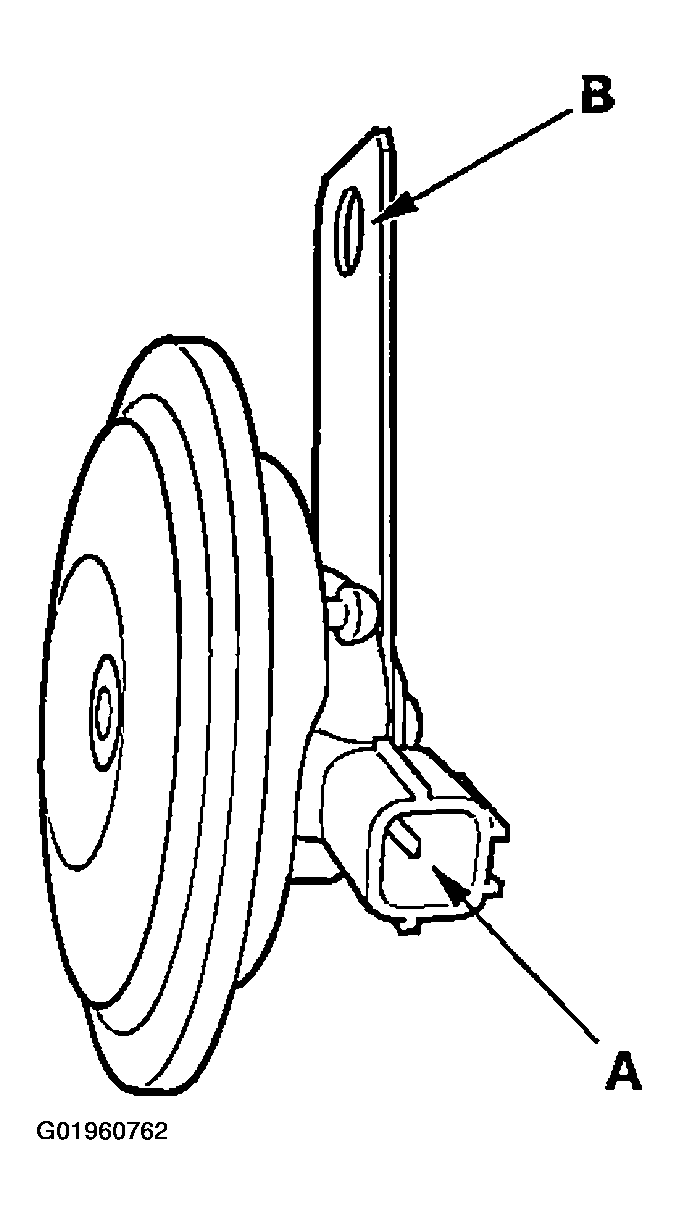

    Fig 2: Testing Horn By Connecting Battery Power To Terminal
    G01960762
  4. If it fails to sound, replace it.
