Wheel Sensor Replacement
NOTE:
Install the sensors carefully to avoid twisting the wires.

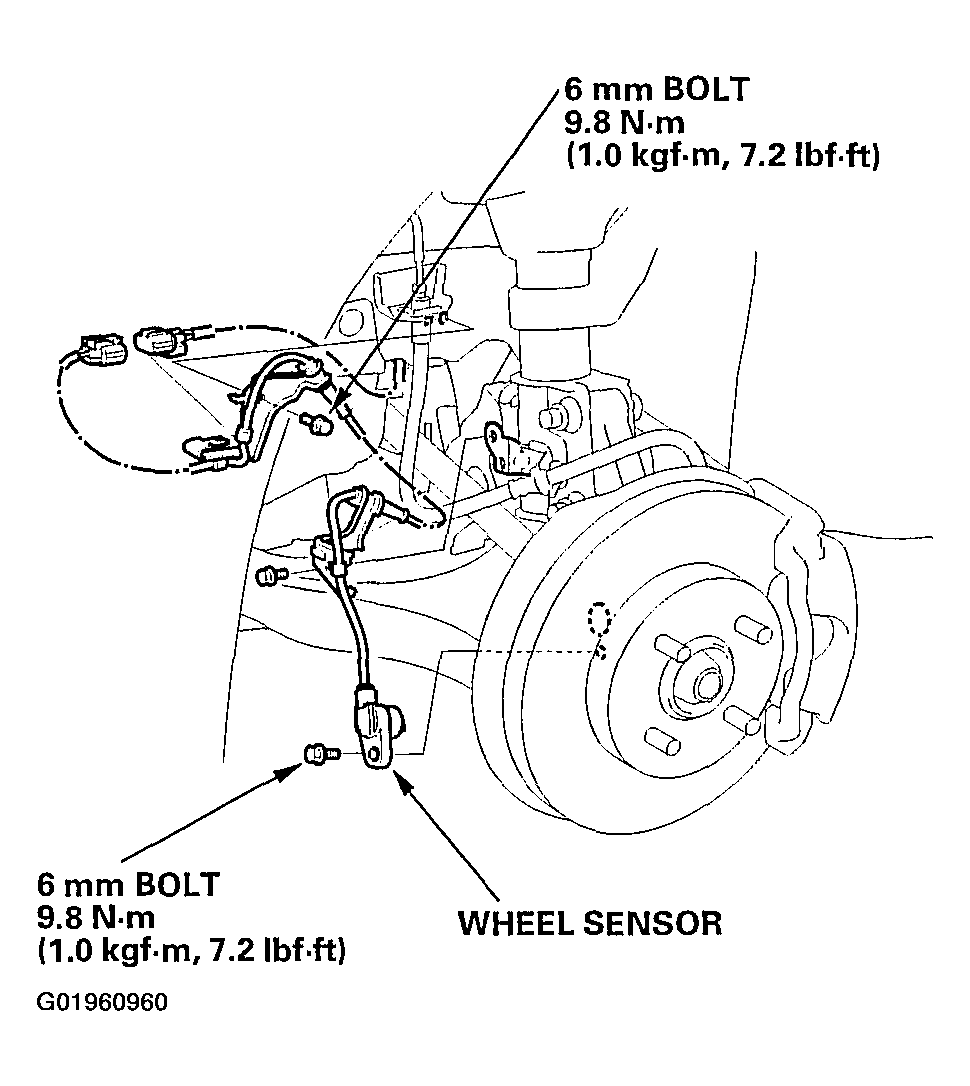

Fig 1: Installing Sensors (Front)

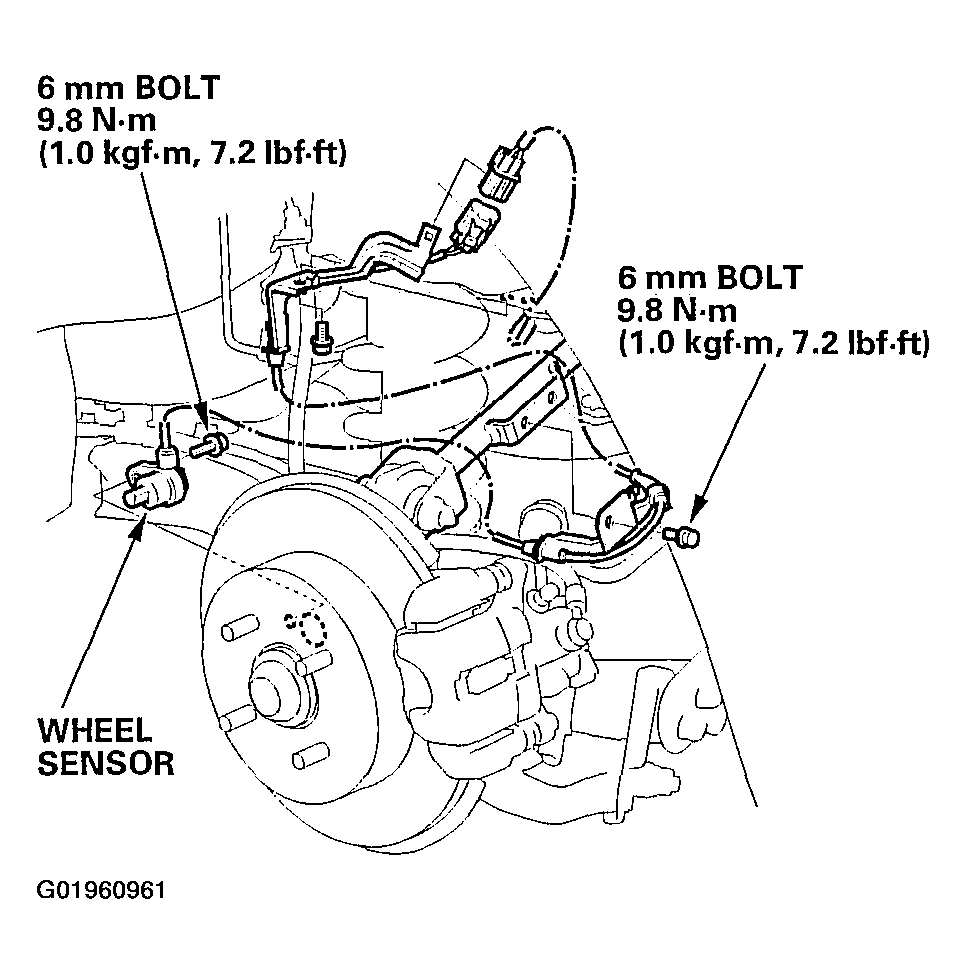

Fig 2: Installing Sensors (Rear)
