Transmission Reassembly

NOTE: Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to any contact surfaces.

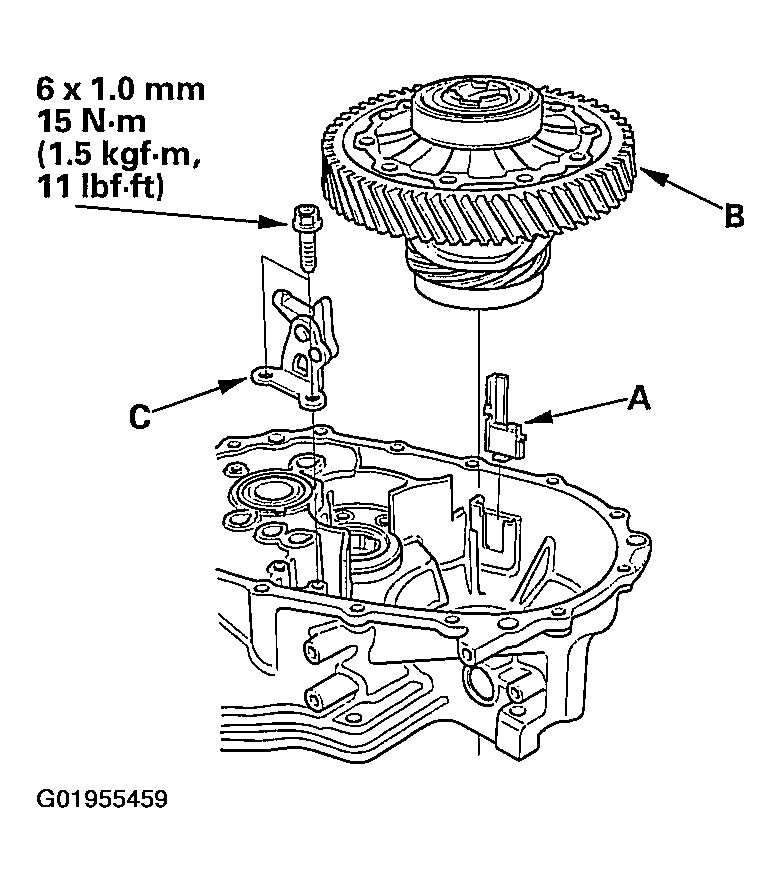

  1. Install the magnet (A), differential assembly (B), and reverse lock cam (C).
    Fig 1: Installing Magnet, Differential Assembly & Reverse Lock Cam
    G01955459

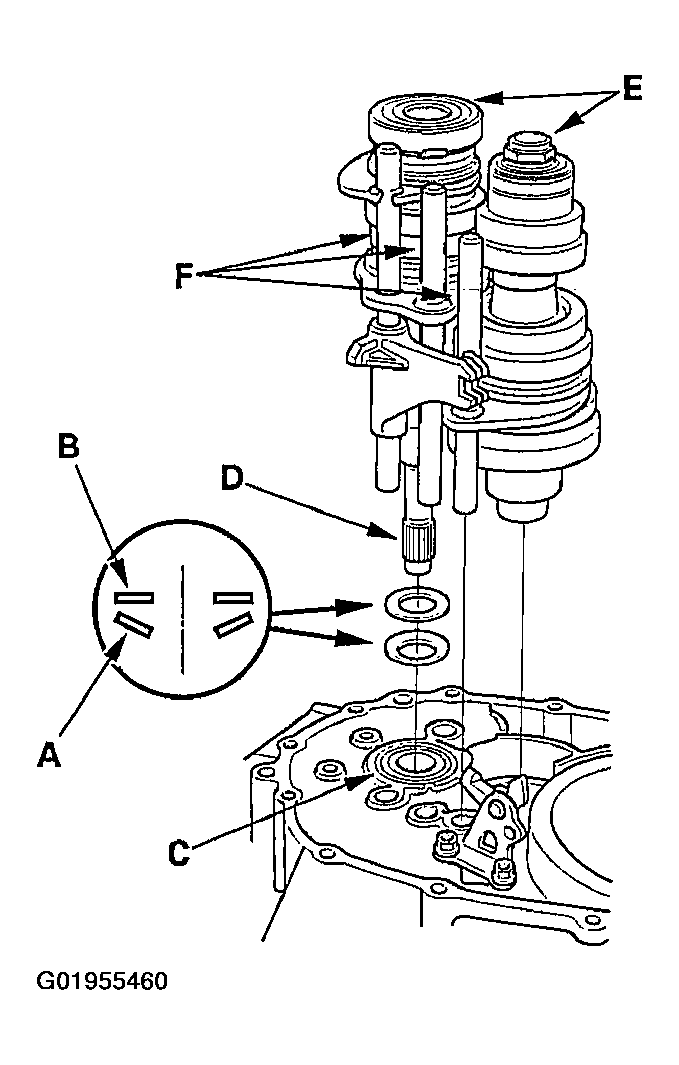

  2. Install the 36 mm spring washer (A) and 26 mm washer (B) over the ball bearing (C). Note the installation direction of the spring washer (A).
    Fig 2: Installing Spring Washers Over Ball Bearing
    G01955460
  3. Apply vinyl tape the mainshaft splines (D) to protect the seal. Install the mainshaft and countershaft (E) into the shift forks (F), and install them as an assembly.

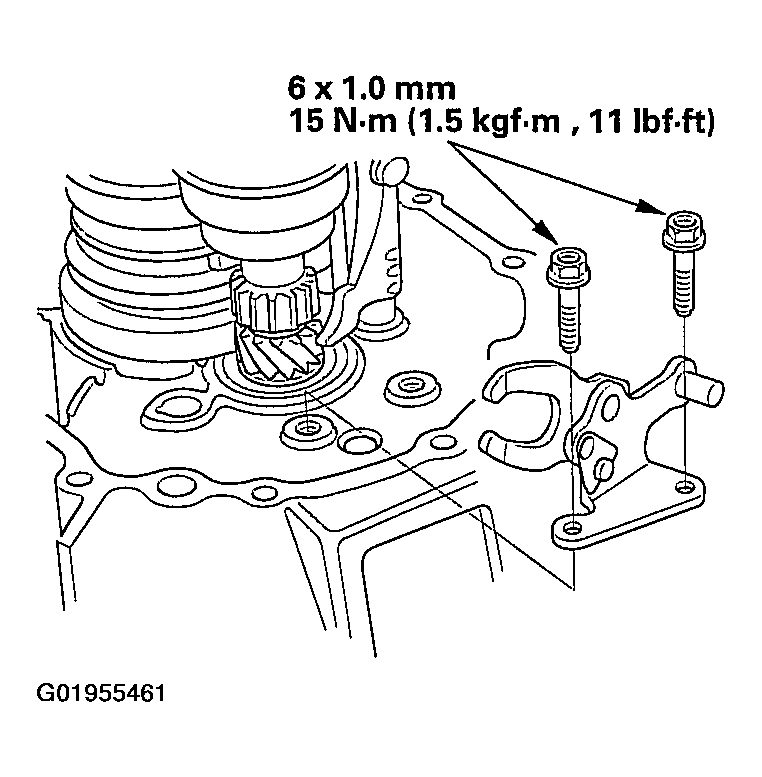

  4. Install the reverse shift fork.
    Fig 3: Installing Reverse Shift Fork
    G01955461

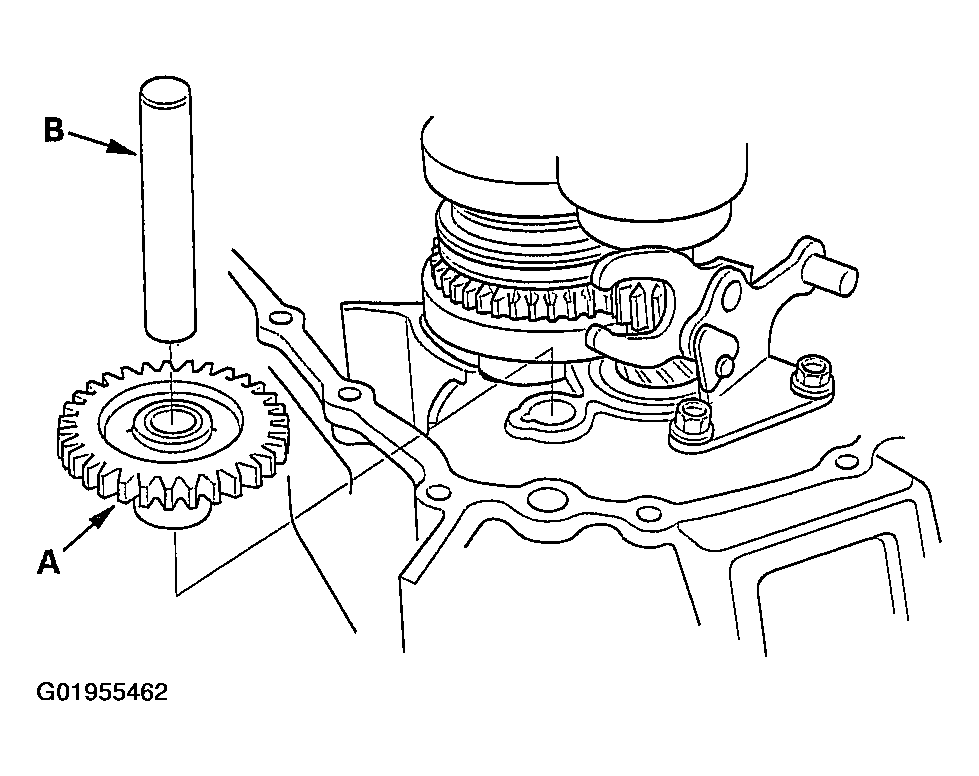

  5. Install the reverse idler gear (A) and reverse gear shaft (B).
    Fig 4: Installing Reverse Idler Gear & Gear Shaft
    G01955462

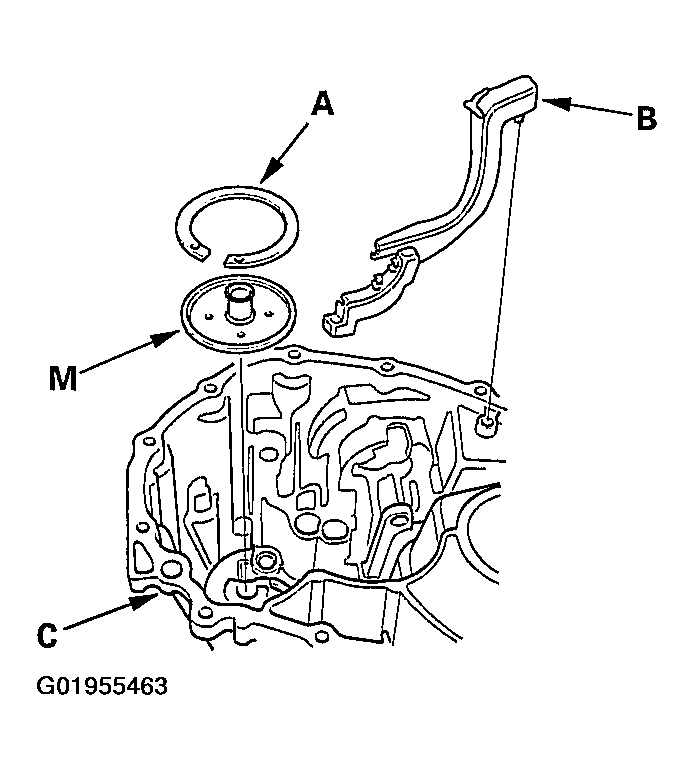

  6. Select the proper size 72 mm shim (A) according to the measurements made during the Mainshaft Thrust Clearance Adjustment (see Mainshaft Thrust Clearance Adjustment  ). Install the oil gutter plate (B), oil guide plate (M), and 72 mm shim into the transmission housing (C).
    Fig 5: Selecting Proper Size 72 mm Shim
    G01955463

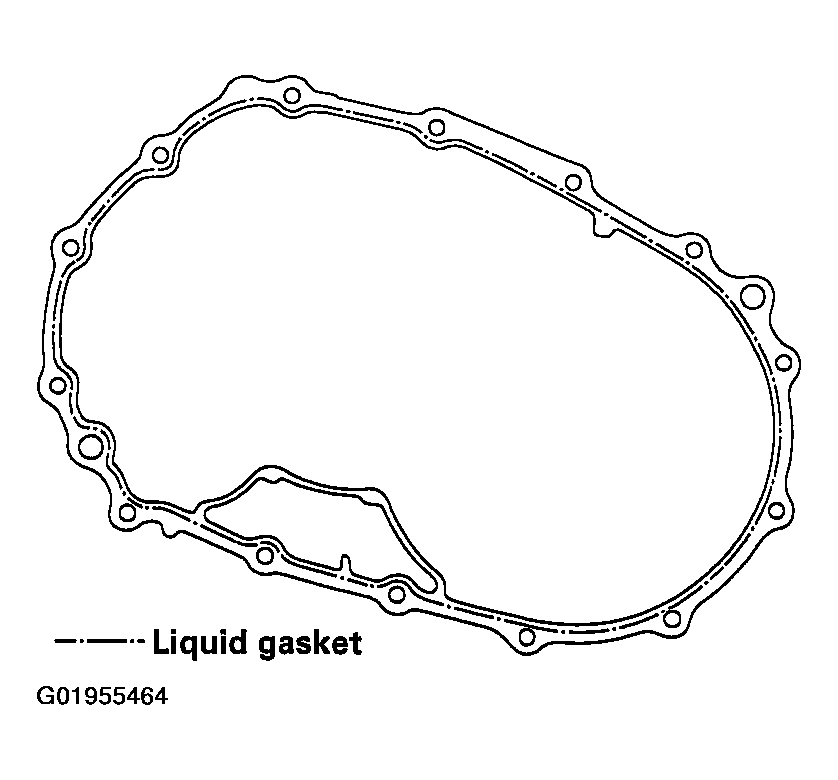

  7. Remove the dirt and oil from the transmission housing sealing surface. Apply liquid gasket (P/N 08718-0001) to the sealing surface. Be sure to seal the entire circumference of the bolt holes to prevent oil leakage.
    NOTE: If 5 minutes have passed after applying liquid gasket, reapply it and assemble the housings. Allow it to cure at least 20 minutes after assembly before filling the transmission with oil.
    Fig 6: Applying Liquid Gasket To Sealing Surface
    G01955464

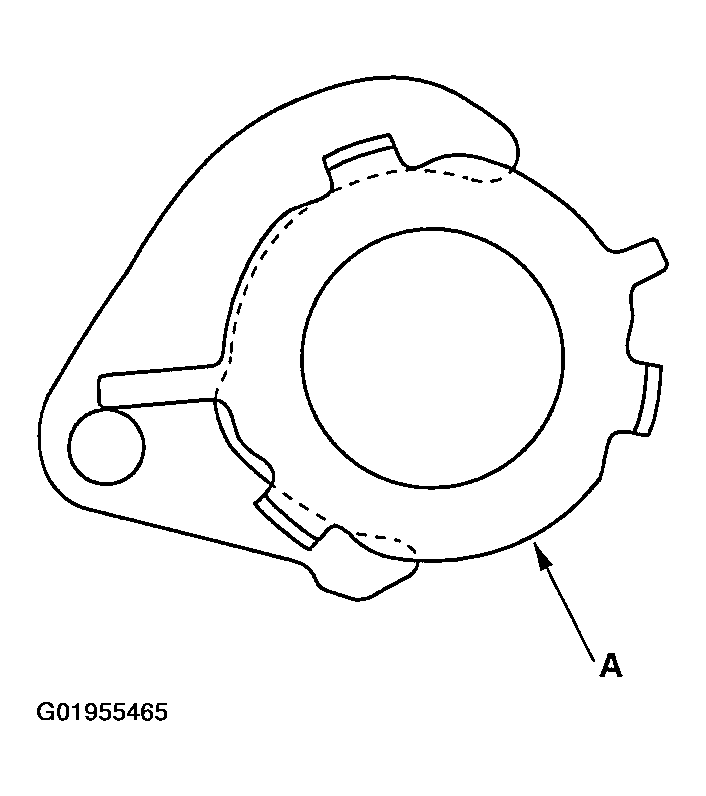

  8. Set the tapered cone ring (A) as shown in Fig 7 . Place the transmission housing over the clutch housing, being careful to line up the shafts.
    Fig 7: Setting Tapered Cone Ring
    G01955465

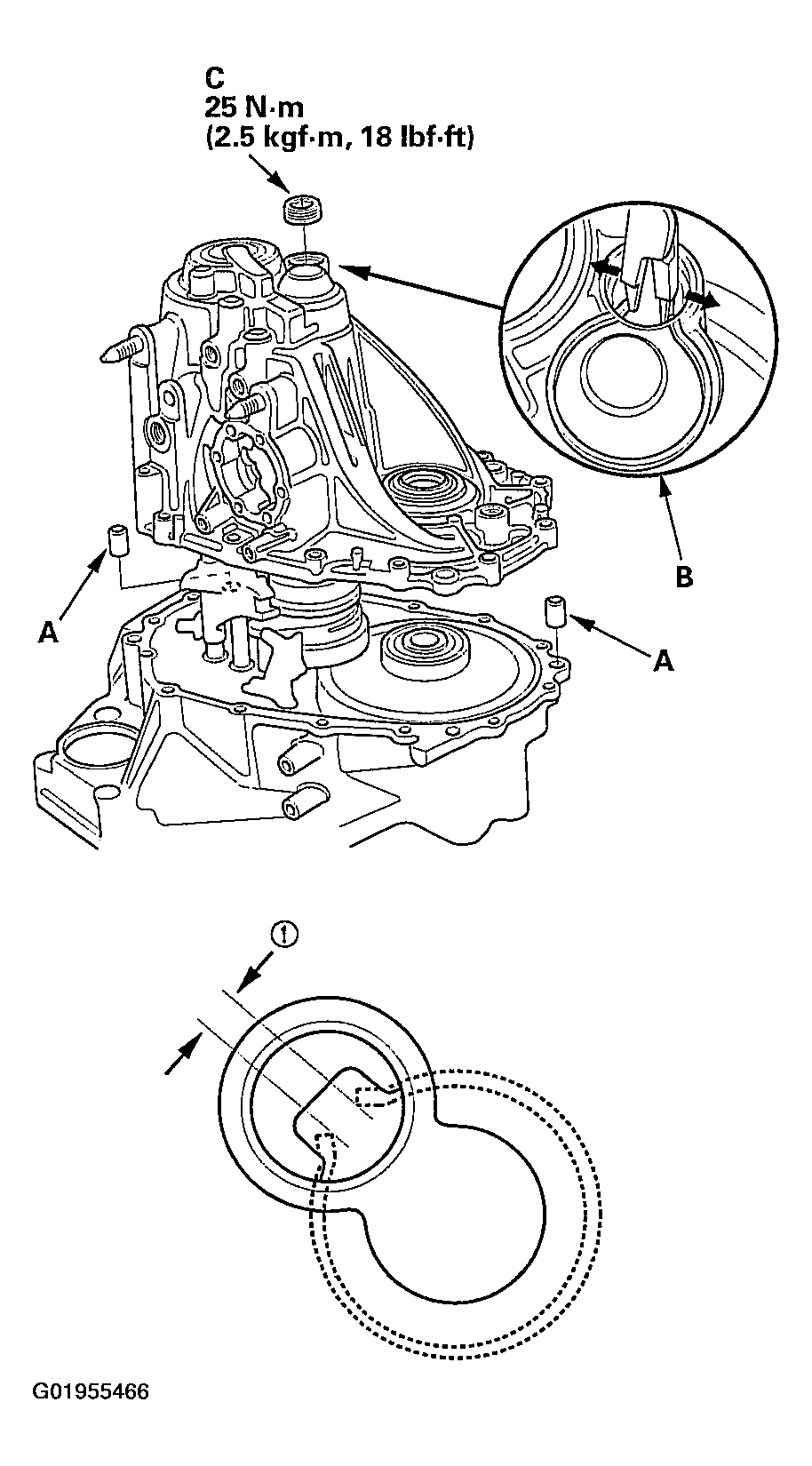

  9. Install the 14 x 20 mm dowel pins (A).
    Fig 8: Installing Dowel Pins
    G01955466
  10. Lower the transmission housing the rest of the way as you expand the 52 mm snap ring (B). Release the snap ring so it seats in the groove of the countershaft bearing.
  11. Check that the 52 mm snap ring is securely seated in the groove of the countershaft bearing.
    • Dimension (1) as installed:  4.6-8.3 mm (0.18-0.33 in.)
  12. Apply liquid gasket (P/N 08718-0001) to the threads of the 32 mm sealing cap (C), and install it on the transmission housing.

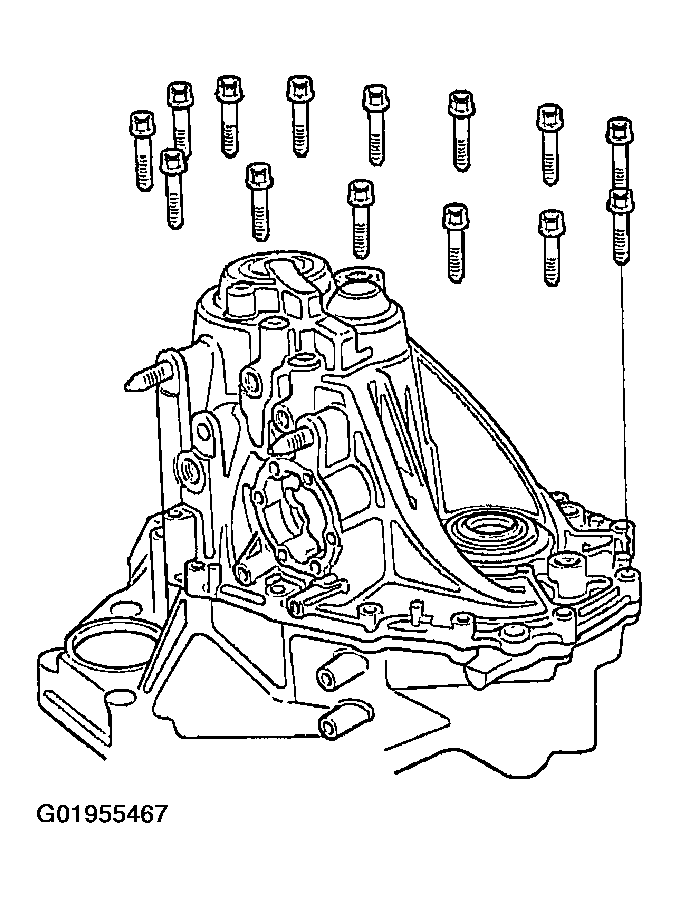

  13. Install the 8 mm flange bolts finger-tight.
    Fig 9: Installing Flange Bolts Finger-Tight
    G01955467

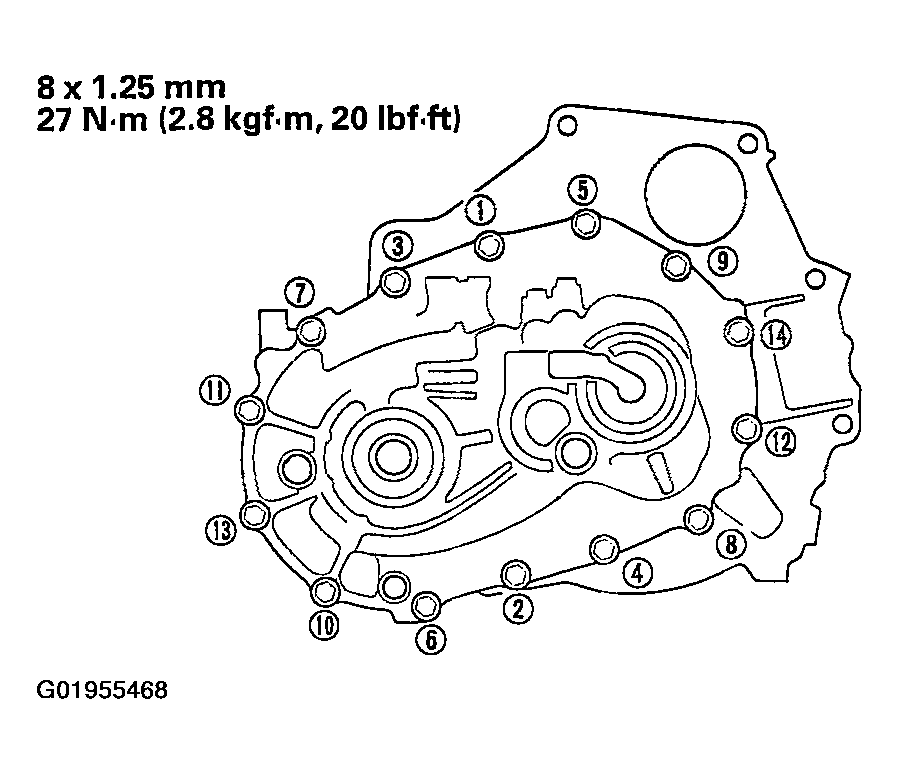

  14. Tighten the 8 mm flange bolts in a crisscross pattern in several steps.
    Fig 10: Tightening Flange Bolts In Crisscross Pattern
    G01955468

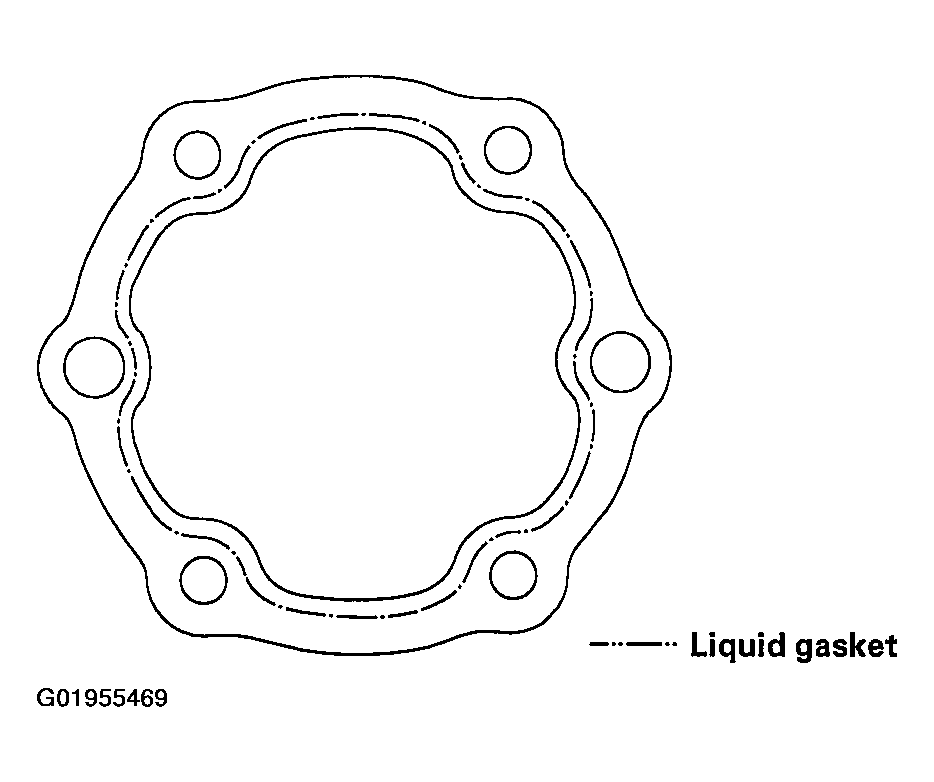

  15. Remove the dirt and oil from the shift lever cover sealing surface. Apply liquid gasket (P/N 08718-0001) to the sealing surface.
    Fig 11: Applying Liquid Gasket To Sealing Surface
    G01955469

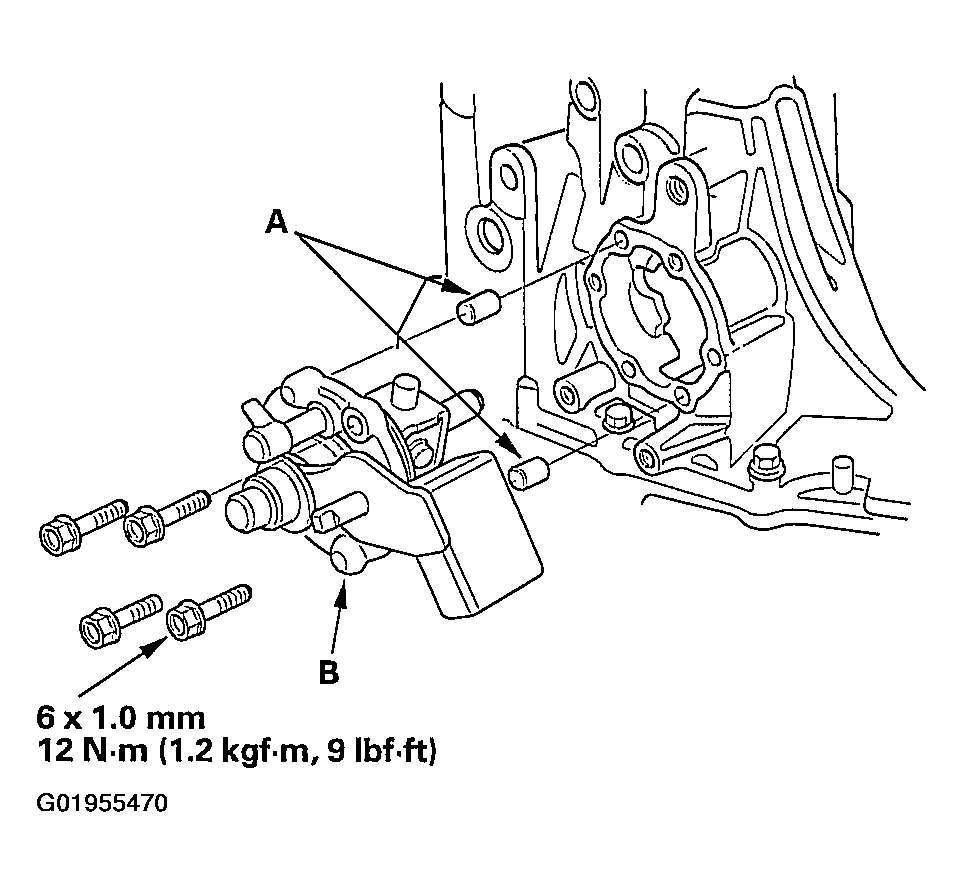

  16. Install the 8x10 mm dowel pins (A) and shift lever assembly (B).
    Fig 12: Installing Dowel Pins & Shift Lever Assembly
    G01955470

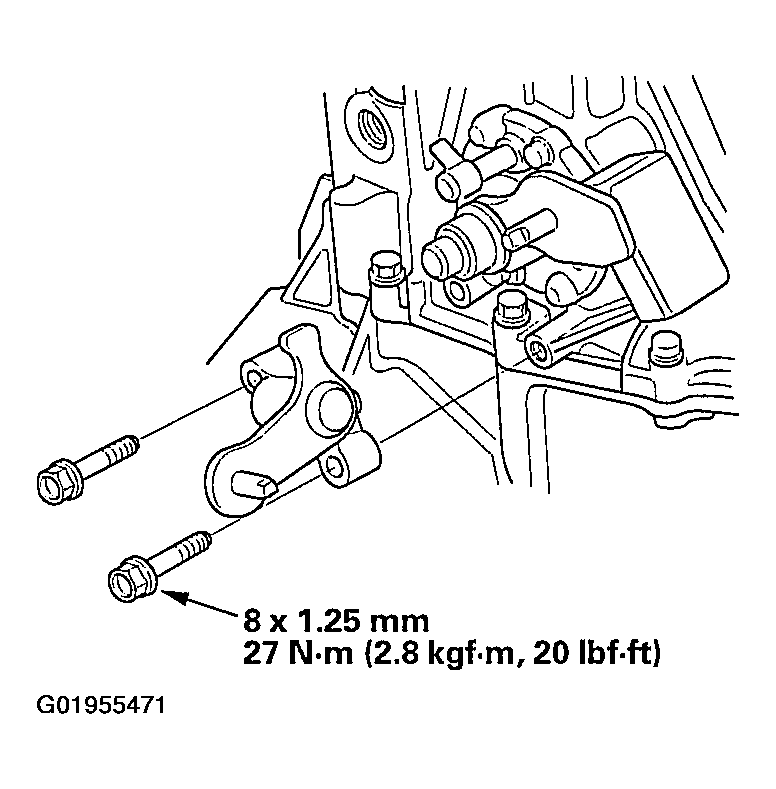

  17. Install the select lever assembly.
    Fig 13: Installing Select Lever Assembly
    G01955471

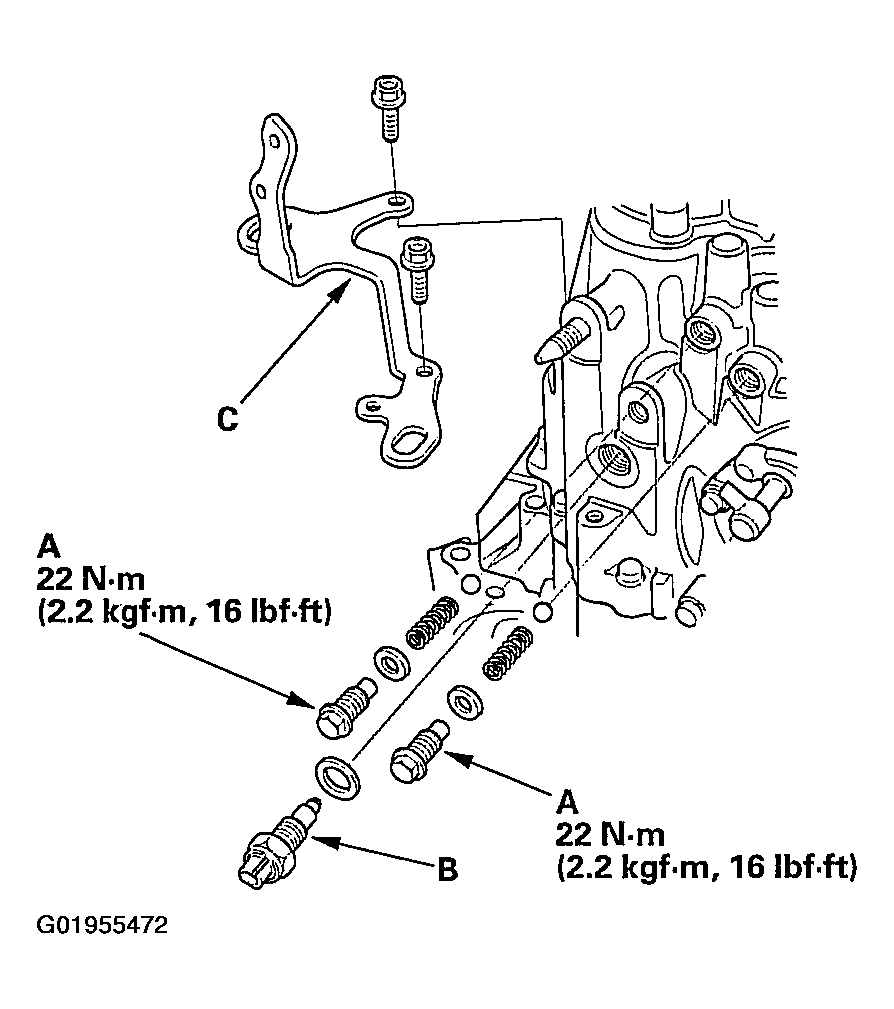

  18. Install the detent bolts (A), back-up light switch (B) with new washers, then install the transmission hanger (C).
    Fig 14: Installing Detent Bolts
    G01955472

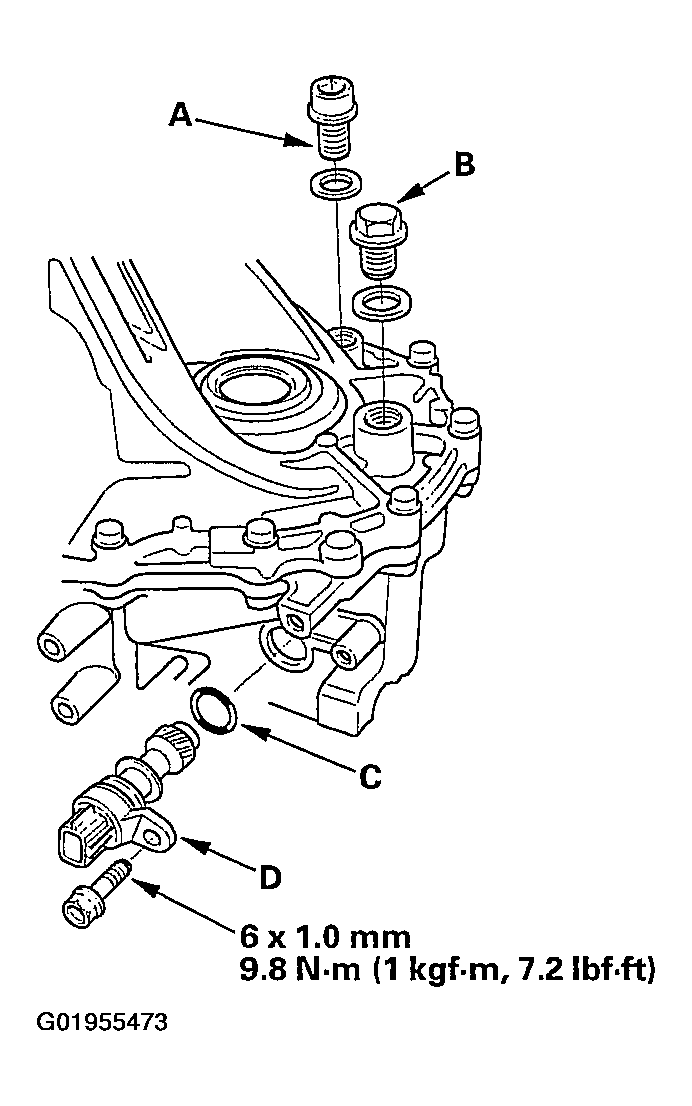

  19. Install the drain plug (A) and the filler plug (B) with new washers.
    Fig 15: Installing Drain Plug & Filler Plug With Washers
    G01955473
  20. Install the O-ring (C) and the vehicle speed sensor (VSS)(D).
