Countershaft Disassembly

  1. Securely clamp the countershaft assembly in a bench vise with wood blocks.

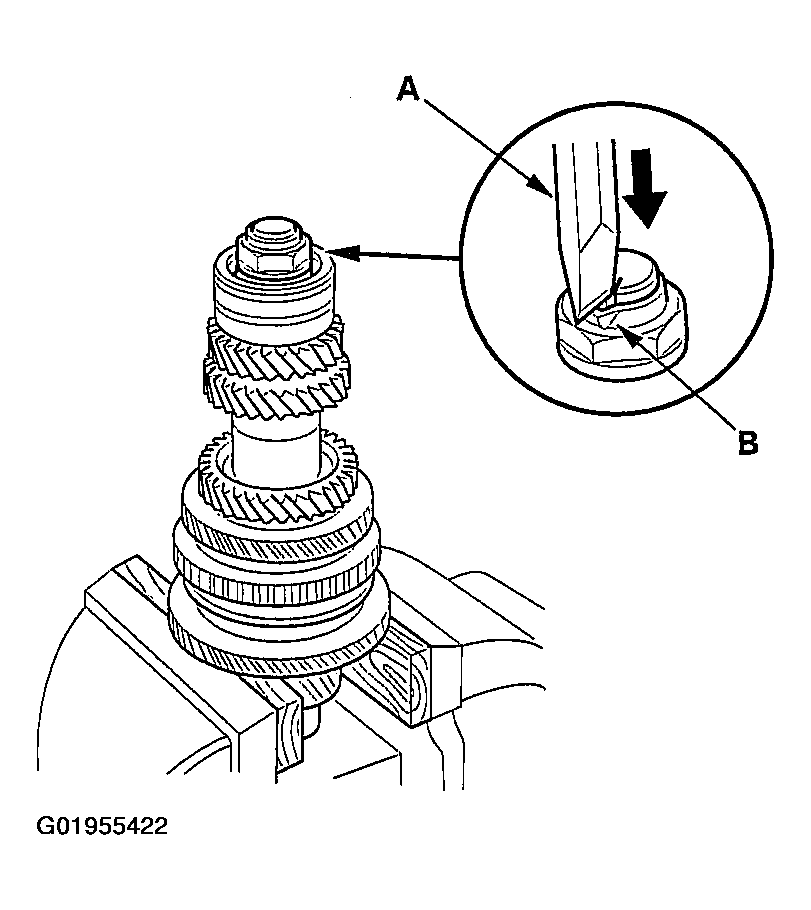

    Fig 1: Securely Clamping Countershaft Assembly In Bench Vise With Wood Blocks
    G01955422
  2. Use a chisel (A) to raise the locknut tab (B) from the groove in the countershaft.
  3. Remove the locknut (A) and the spring washer (B).

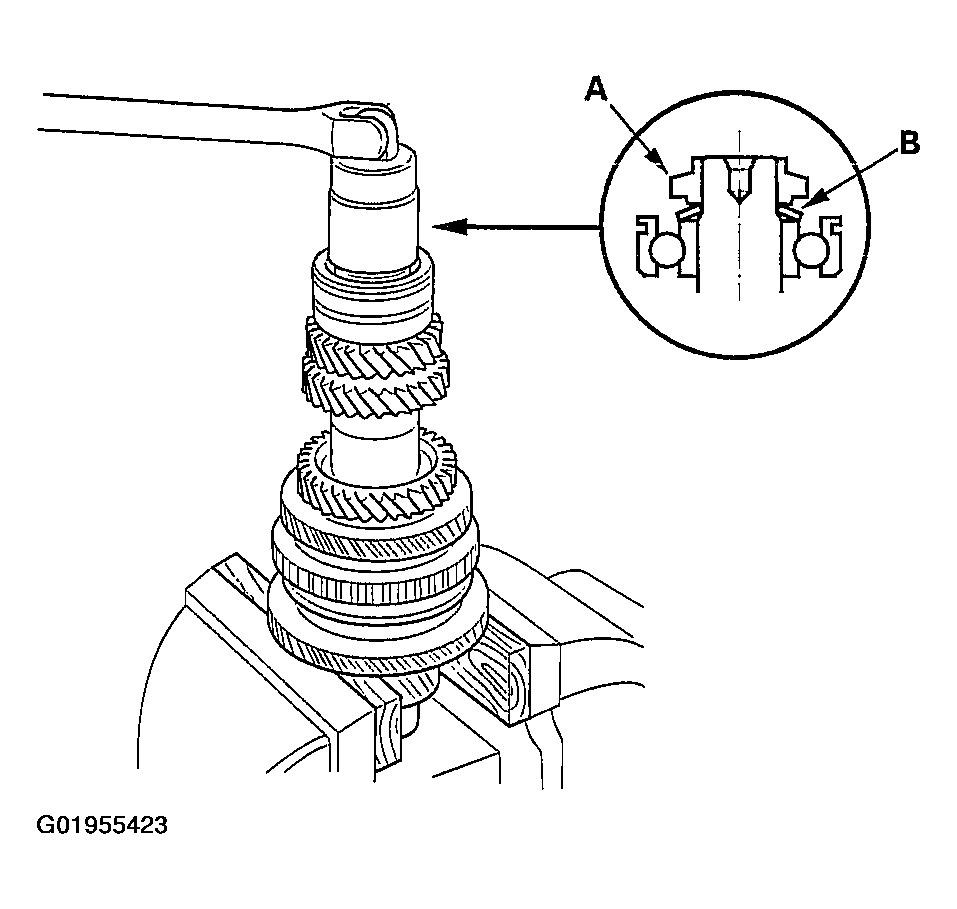

    Fig 2: Removing Locknut & Spring Washer
    G01955423
  4. Support 5th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the ball bearing (F).

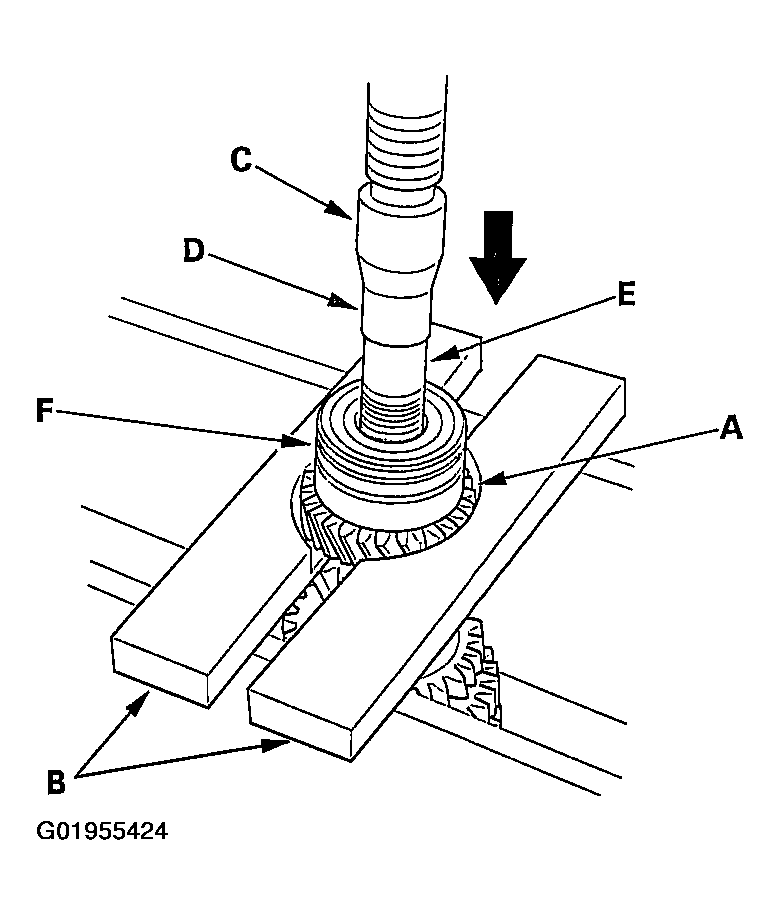

    Fig 3: Supporting 5th Gear On Steel Blocks
    G01955424
  5. Support 4th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the 4th gear.

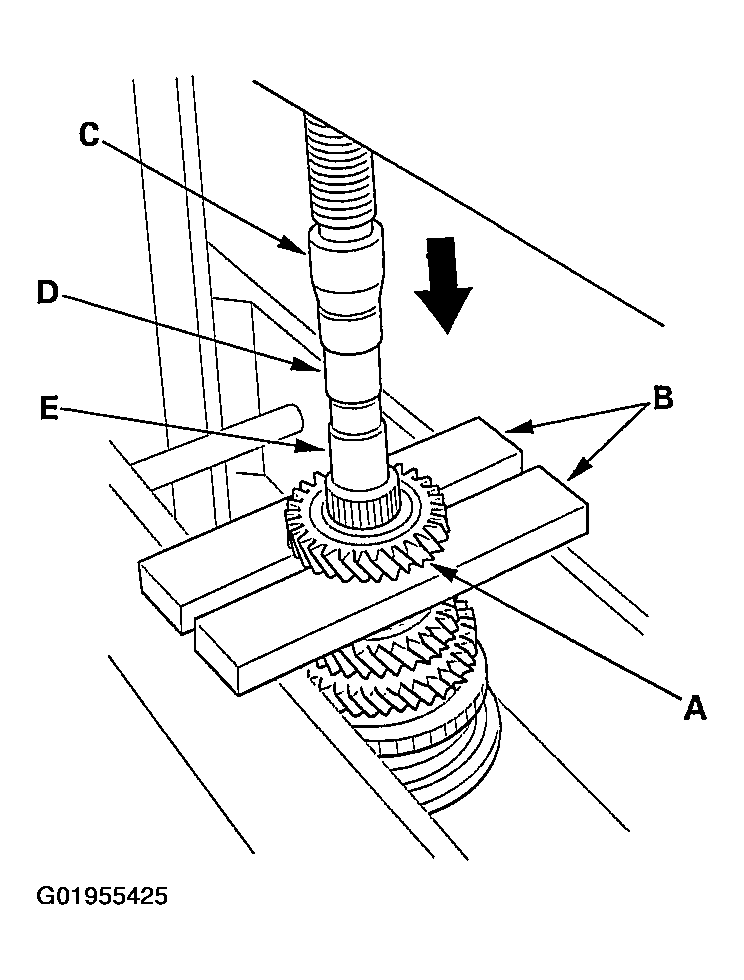

    Fig 4: Supporting 4th Gear On Steel Blocks
    G01955425
  6. Support 3rd gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the 3rd gear.

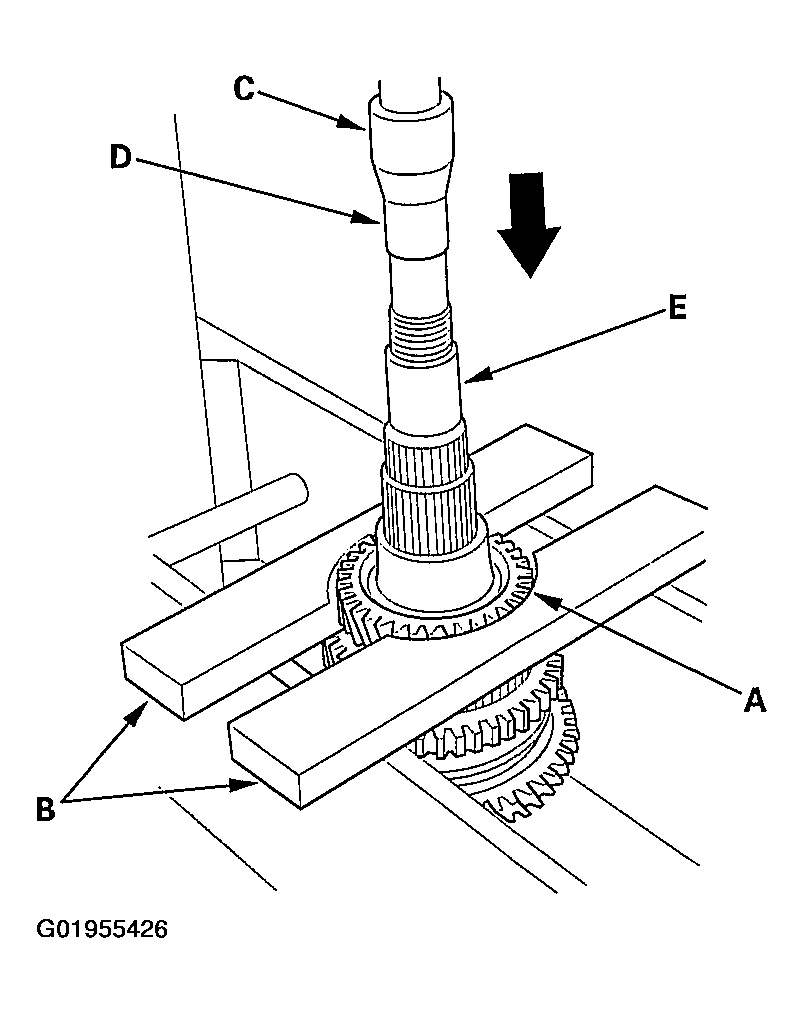

    Fig 5: Supporting 3rd Gear On Steel Blocks
    G01955426
