Backlash Inspection

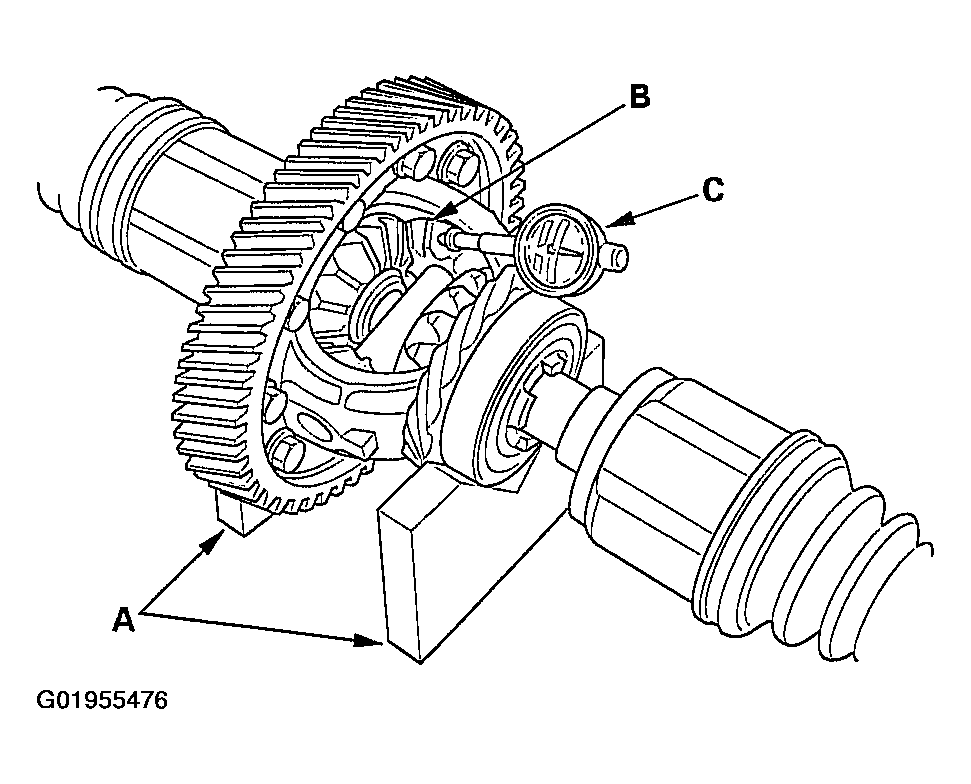

- Place the differential assembly on V-blocks (A), and install both axles.
- Measure the backlash of both pinion gears (B) with a dial indicator (C). If the backlash is not within the standard, replace the differential carrier.
- Standard (New): 0.05-0.15 mm (0.002-0.006 in.)
