ATF Cooler Hoses Replacement

  1. Connect the cooler hoses (A) to the lines (B) and the ATF cooler, and secure them with the clips (C) as shown Fig 1 .

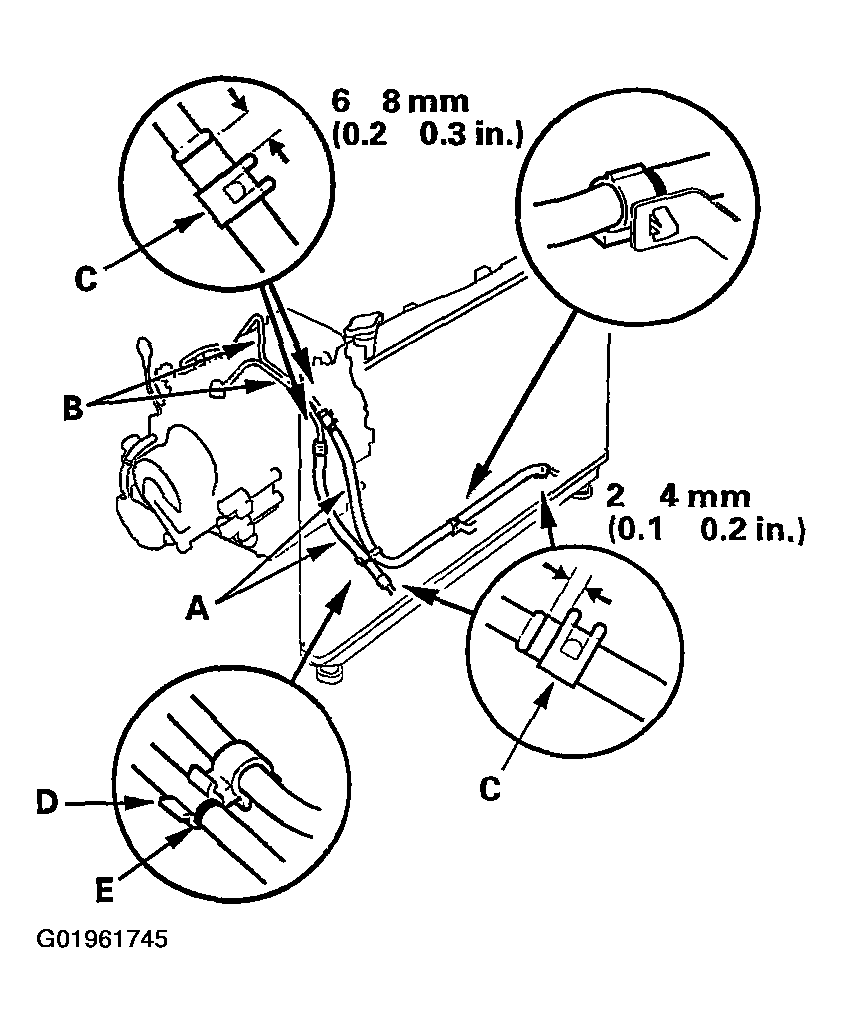

    Fig 1: Connecting Cooler Hoses To Lines & ATF Cooler
    G01961745
  2. Install the clamp (D) aligning with the line (E) on the cooler hoses.
