Home >> Acura >> 2002 >> 1.7EL Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Damper/Spring Replacement >> Notes

Damper/Spring Replacement: Notes

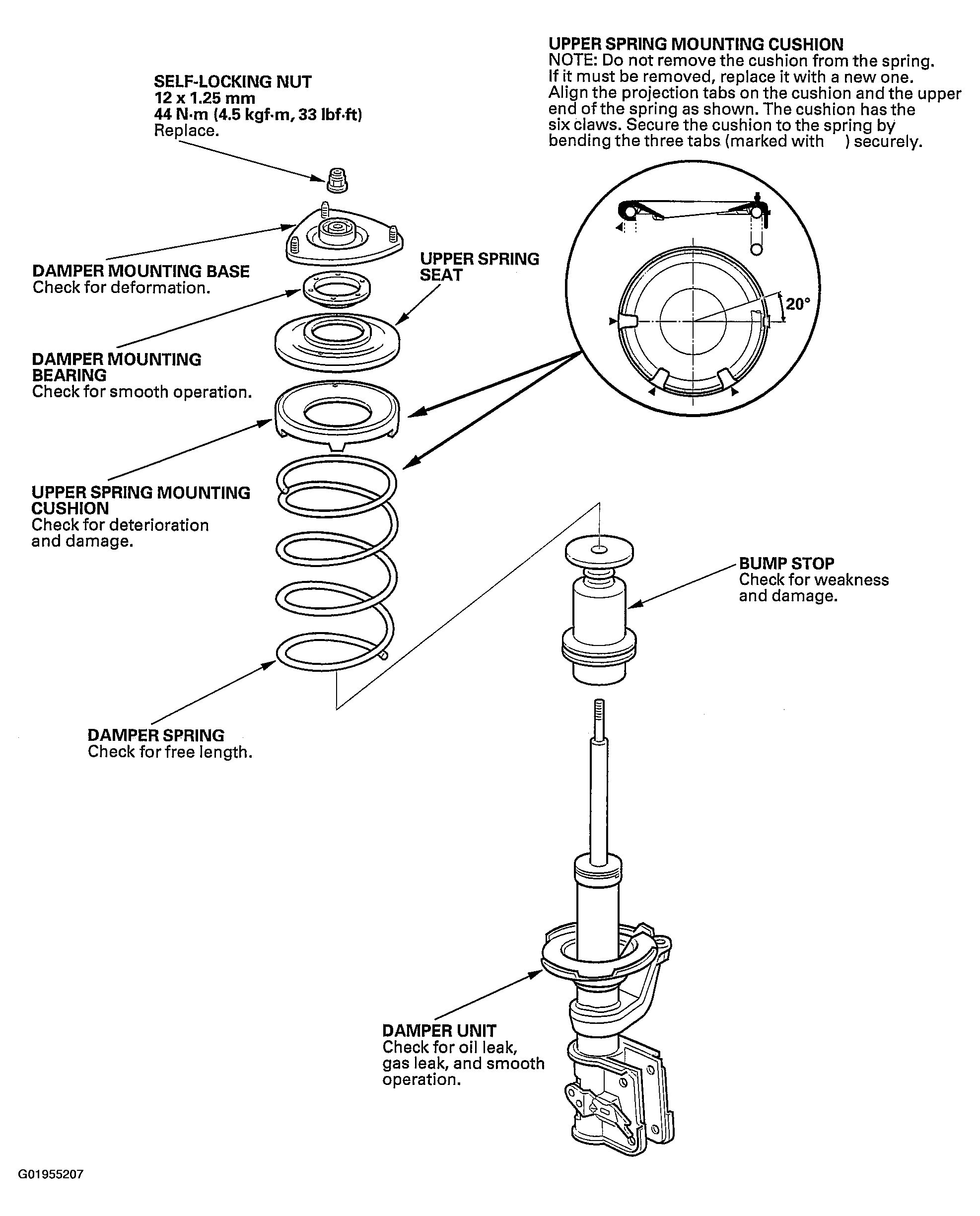

Fig 1: Exploded View Of Damper/Spring

G01955207

Special Tools Required

Strut spring compressor, Branick MST-580A or Model 7200, or equivalent, commercially available
