Radiator Fan Switch Replacement

  1. Disconnect the radiator fan switch connector, then remove the radiator fan switch (A).

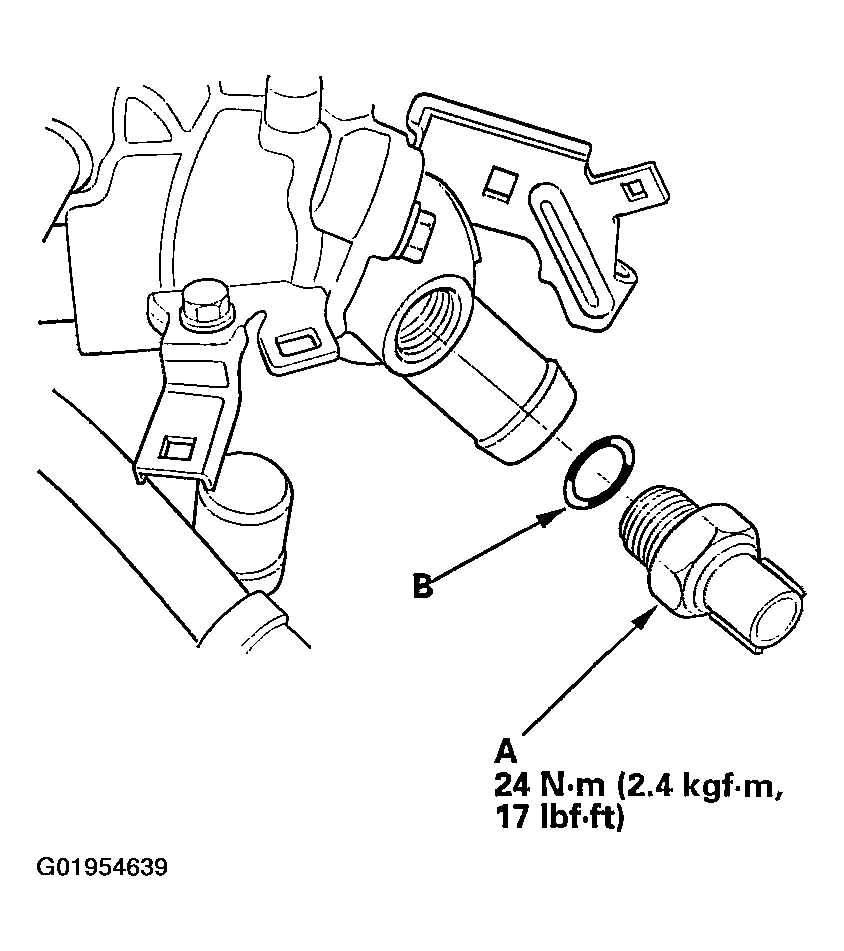

    Fig 1: Removing Radiator Fan Switch
    G01954639
  2. Install the radiator fan switch using a new O-ring (B).
