Circuit Diagram

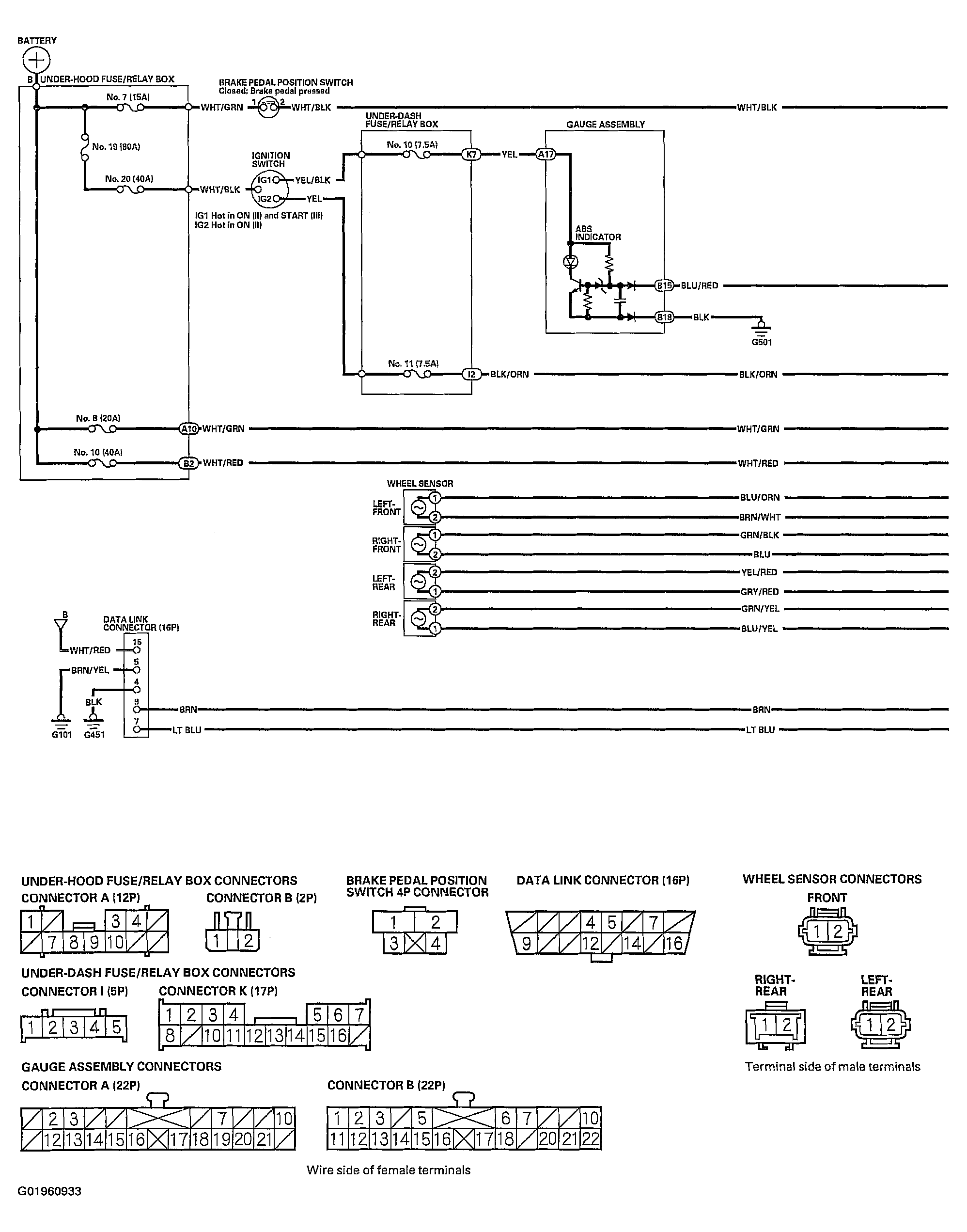

Fig 1: ABS Circuit Diagram (1 Of 2)

G01960933

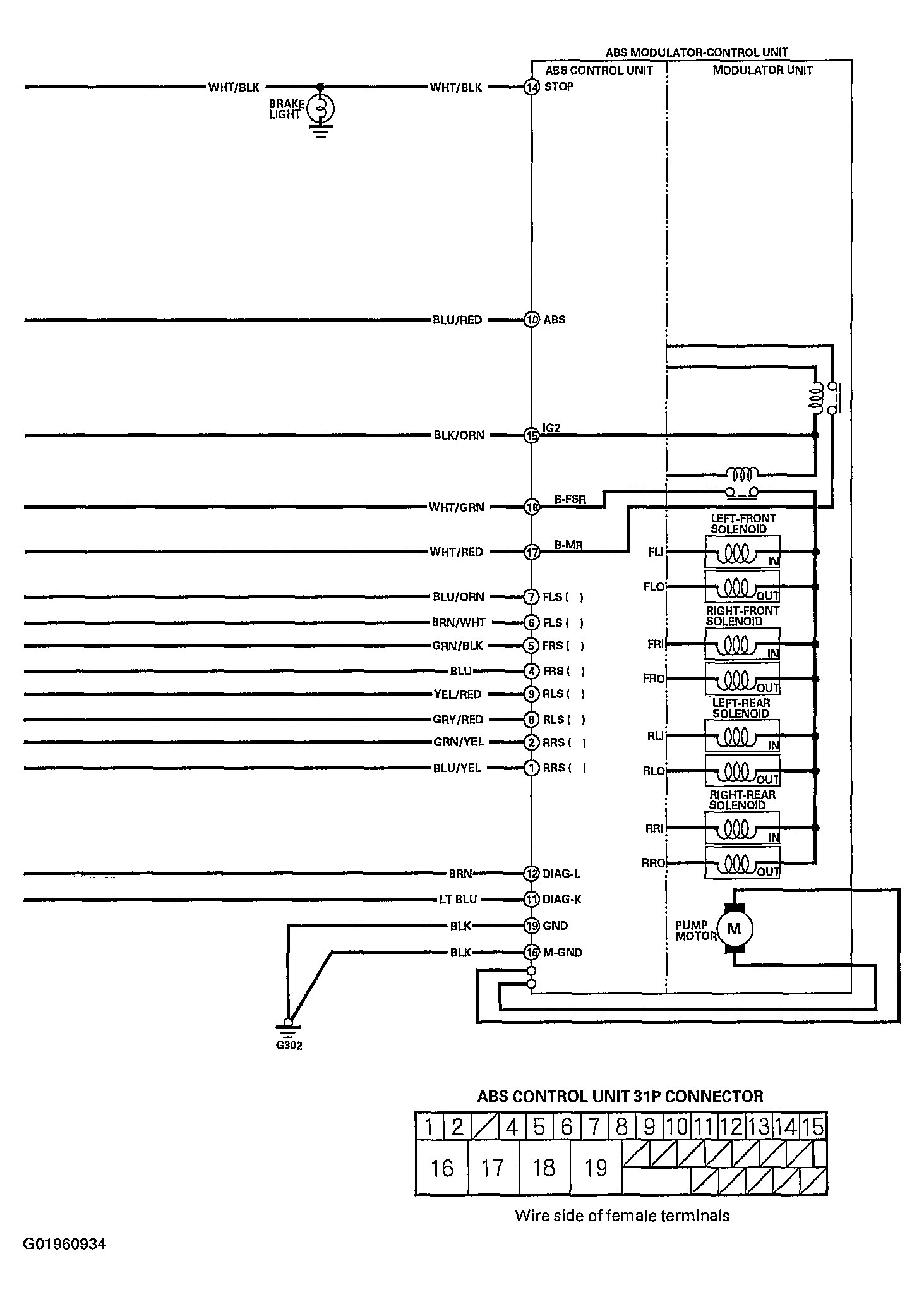

Fig 2: ABS Circuit Diagram (2 Of 2)

G01960934
