Component Location Index

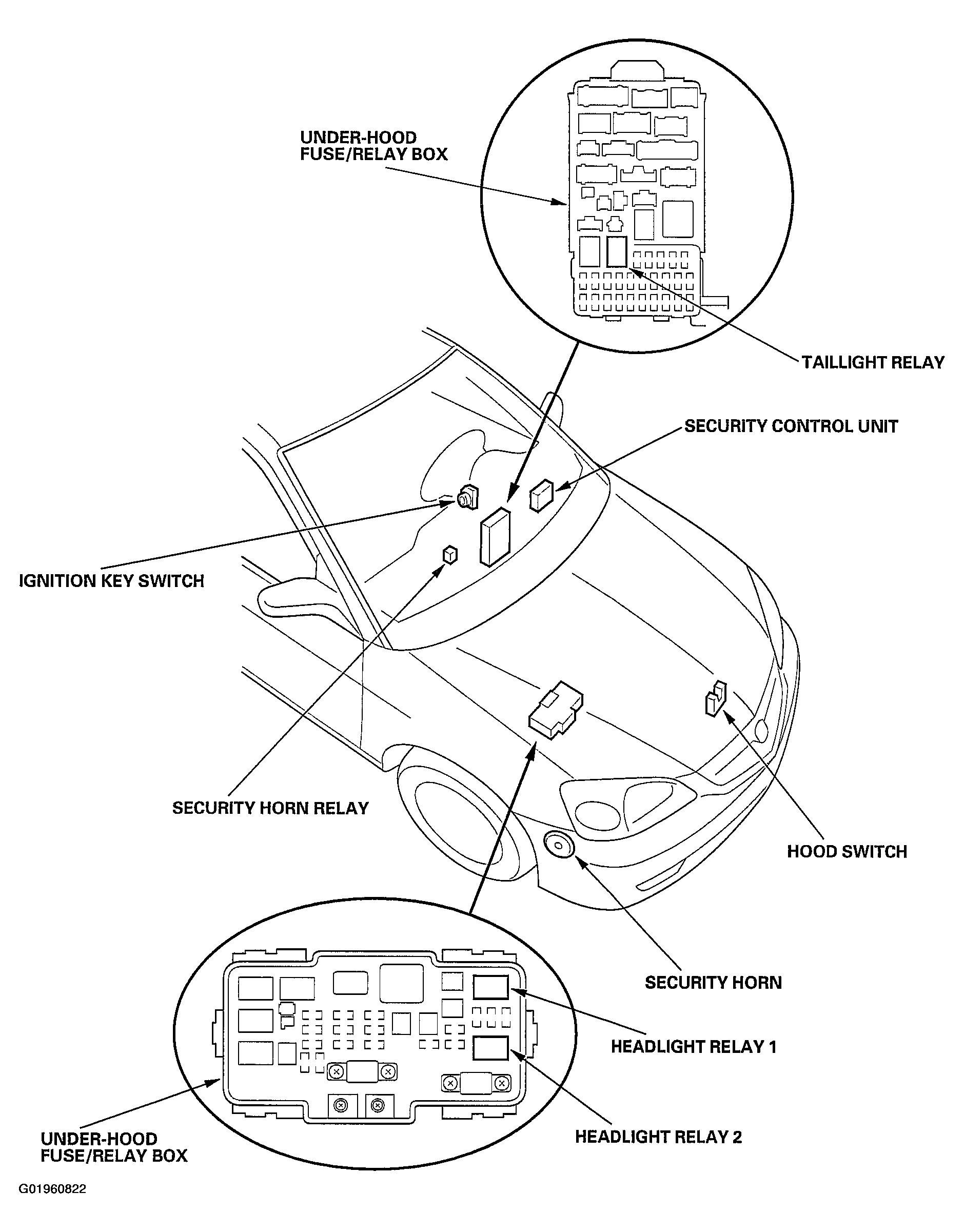

Fig 1: Component Locations (1 Of 2)

G01960822

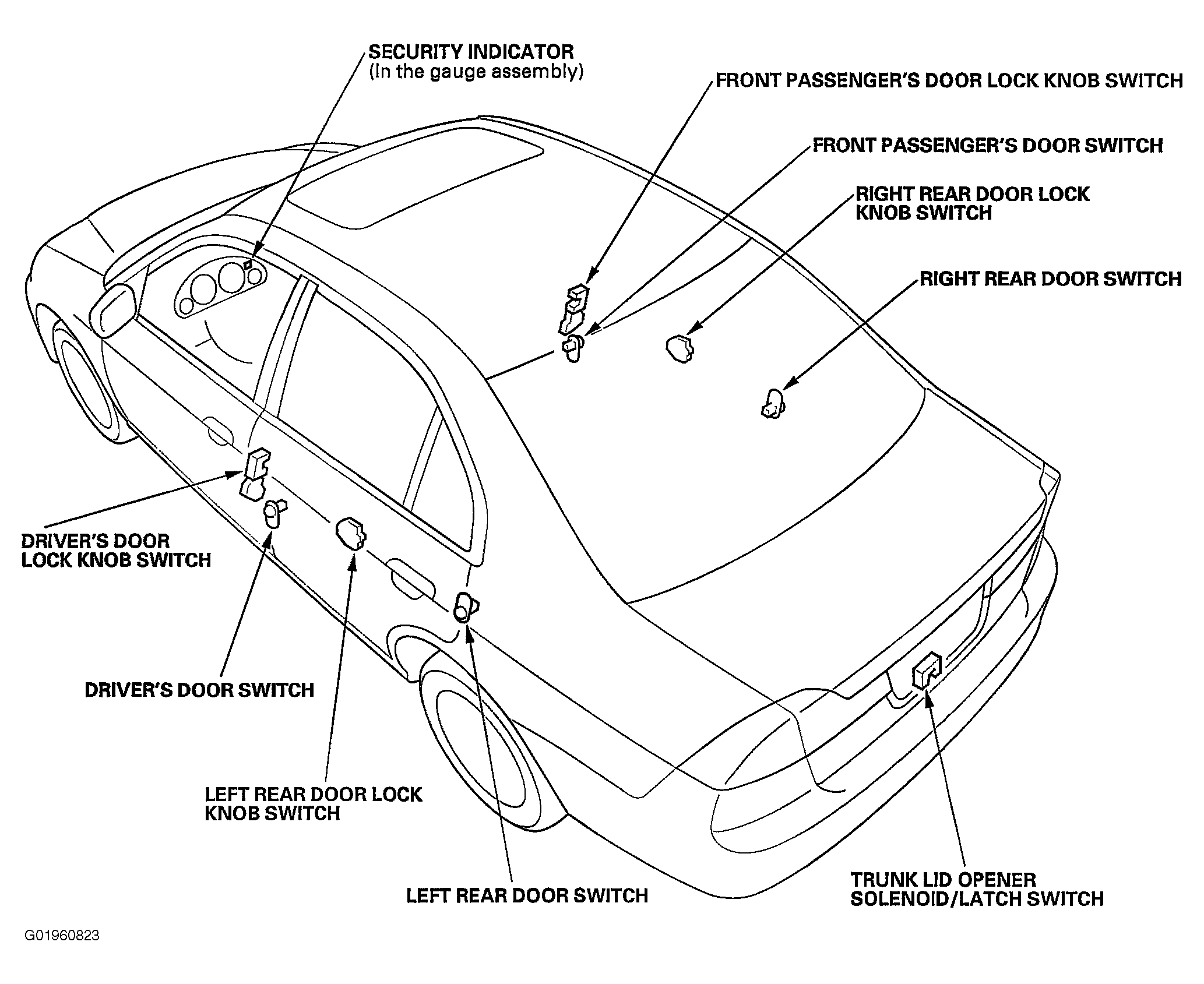

Fig 2: Component Locations (2 Of 2)

G01960823
