Circuit Diagram
Circuit Diagram

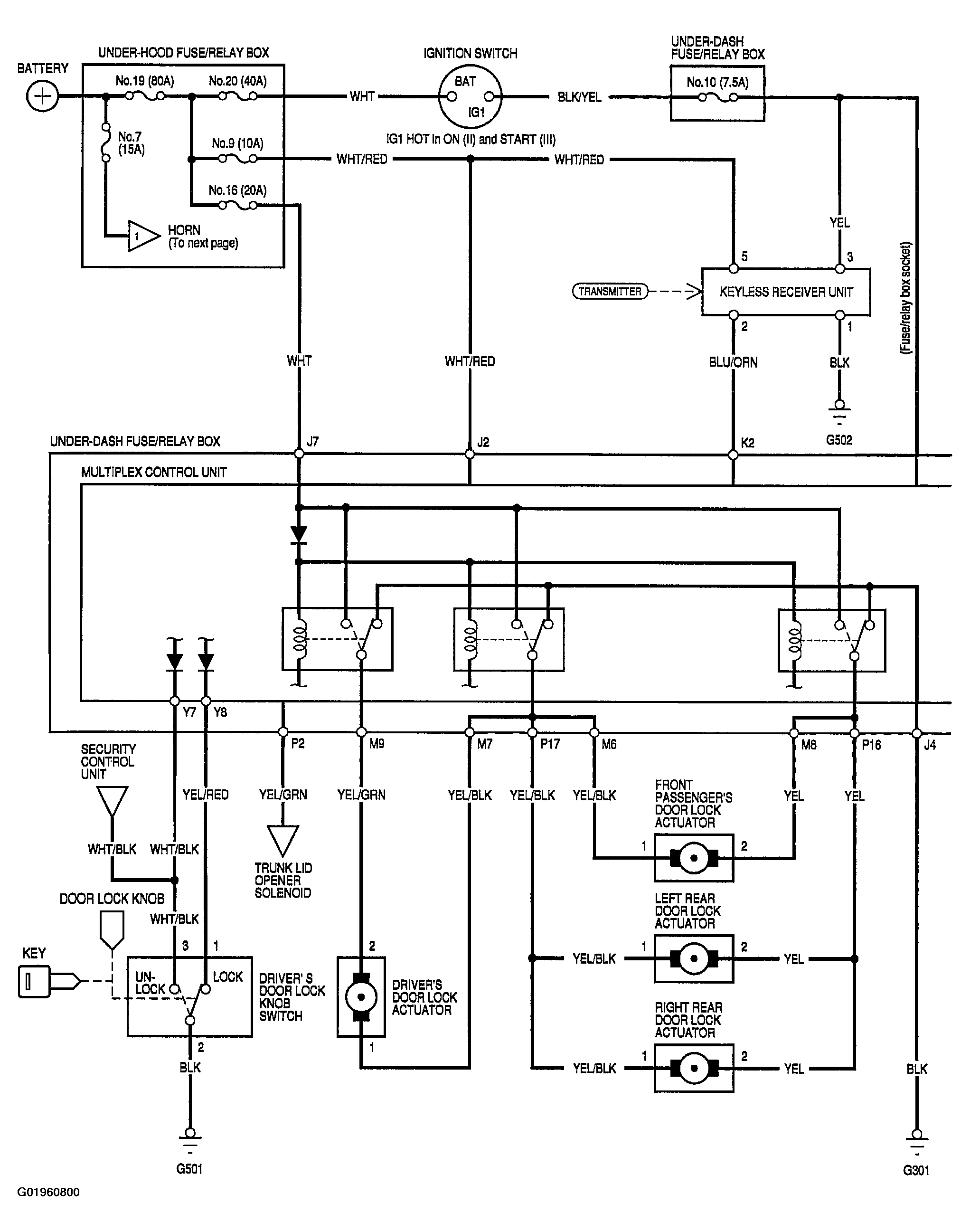

Fig 1: Keyless/Power Door Lock System Circuit Diagram (1 Of 2)

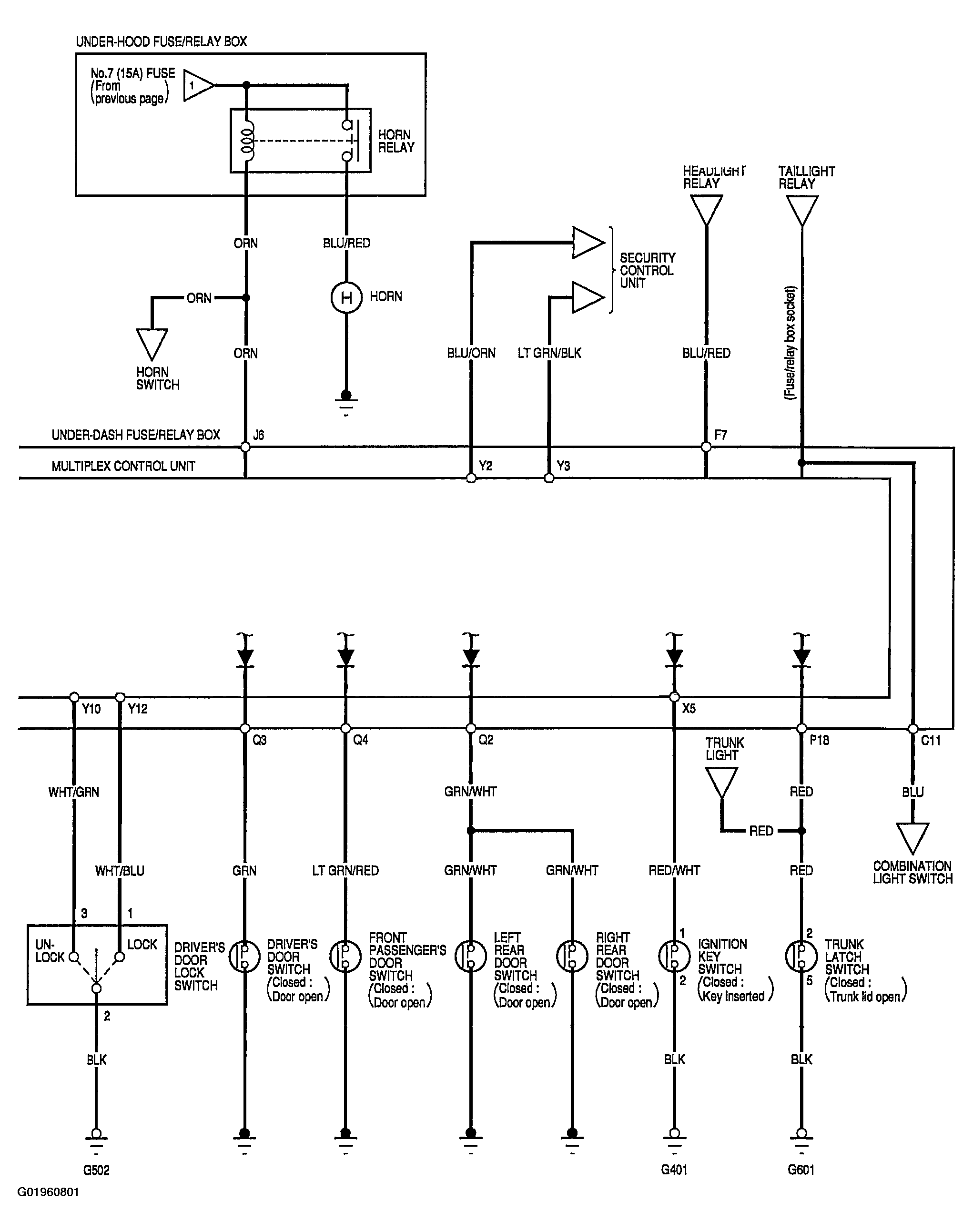

Fig 2: Keyless/Power Door Lock System Circuit Diagram (2 Of 2)
