Home >> Acura >> 2002 >> 1.7EL Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Immobilizer System >> Component Location Index

Component Location Index

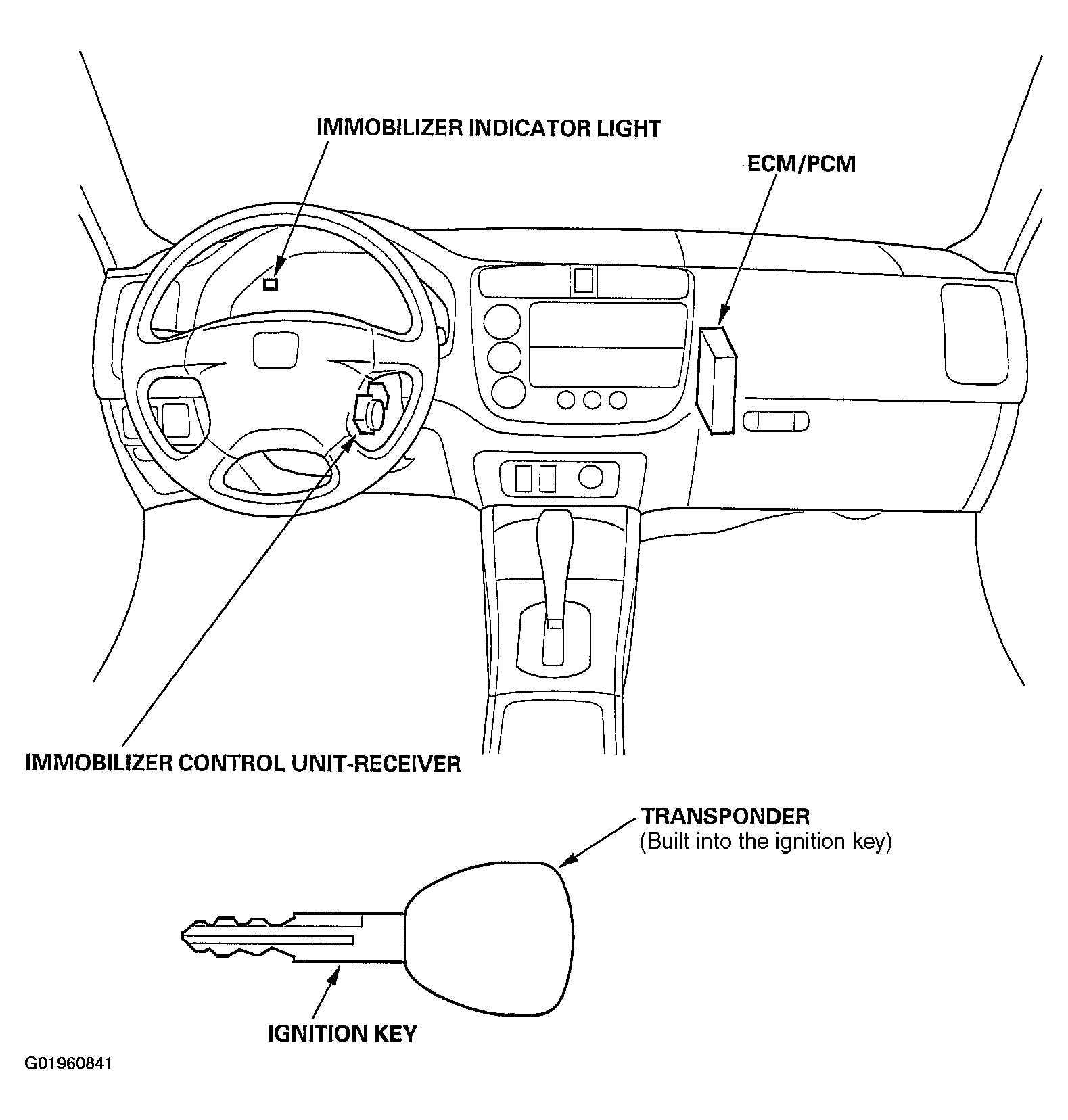

Fig 1: Locating Immobilizer Components

G01960841
