Control Unit
CONTROL UNITS
| Component | Component Location |
|---|---|
| Anti-Lock Brake System (ABS) Control Unit | Behind Right Side Of Dashboard. See Figure. |
| Automatic Transmission Control Unit | Behind Seat, On Left Side Of Rear Bulkhead. See Figure. |
| Cooling Fan Control Unit | Behind Seat, On Center Of Rear Bulkhead, Under Panel. See Figure. |
| Cruise Control Unit | Behind Right Side Of Dashboard. See Figure. |
| Daytime Running Lights (DRL) Control Unit (Canada) | Behind Right Side Of Dashboard. See Figure. |
| Door Lock Control Unit | Behind Right Side Of Dashboard. See Figure. |
| Electronic Power Steering (EPS) Control Unit | Behind Right Side Of Dashboard. See Figure. |

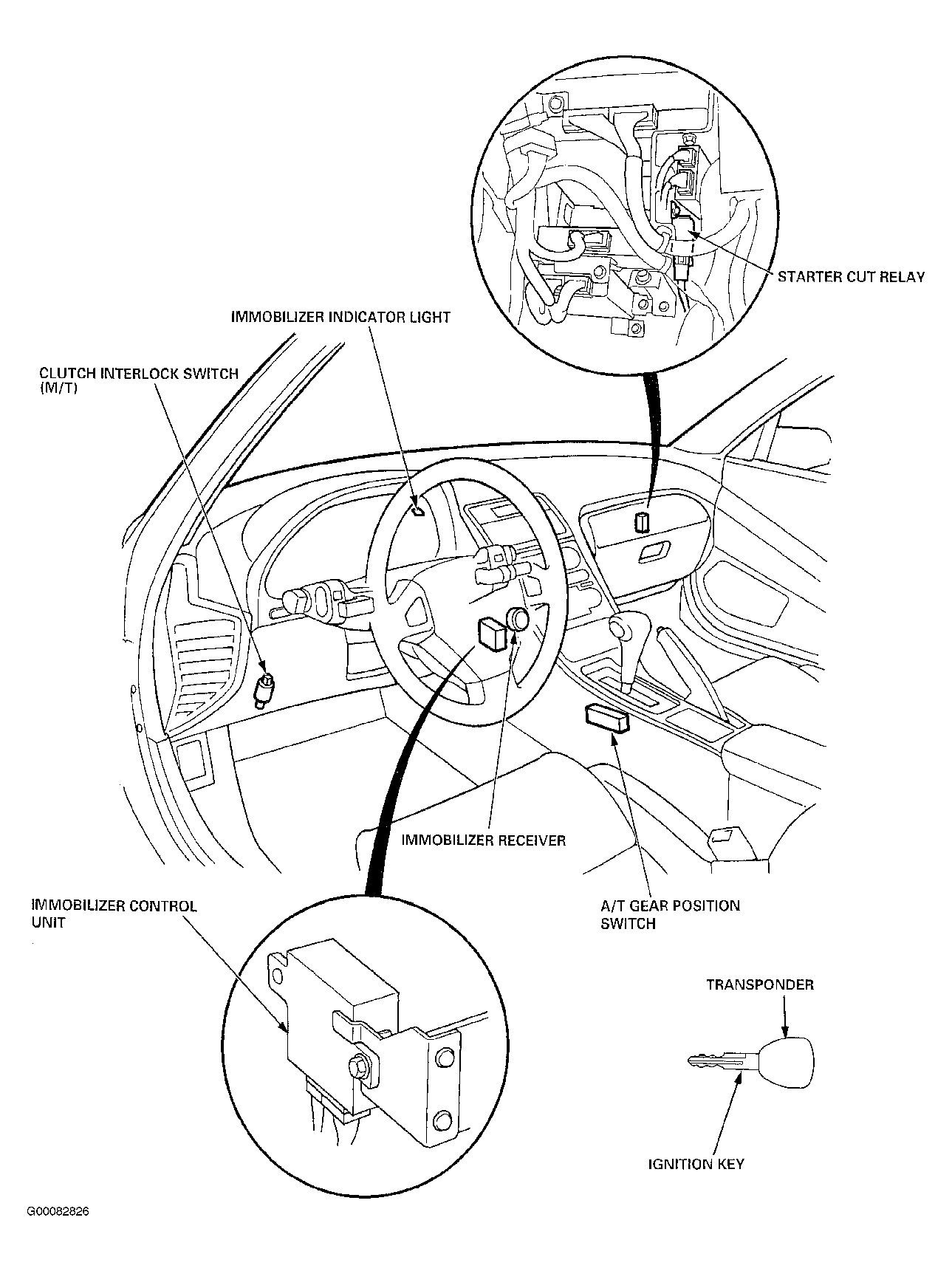

| Immobilizer Control Unit | Under Left Side Of Dashboard, Near Steering Column. See Figure. |
| Ignition Control Unit (Igniter) | Top Left Side Of Engine. See Figure. |

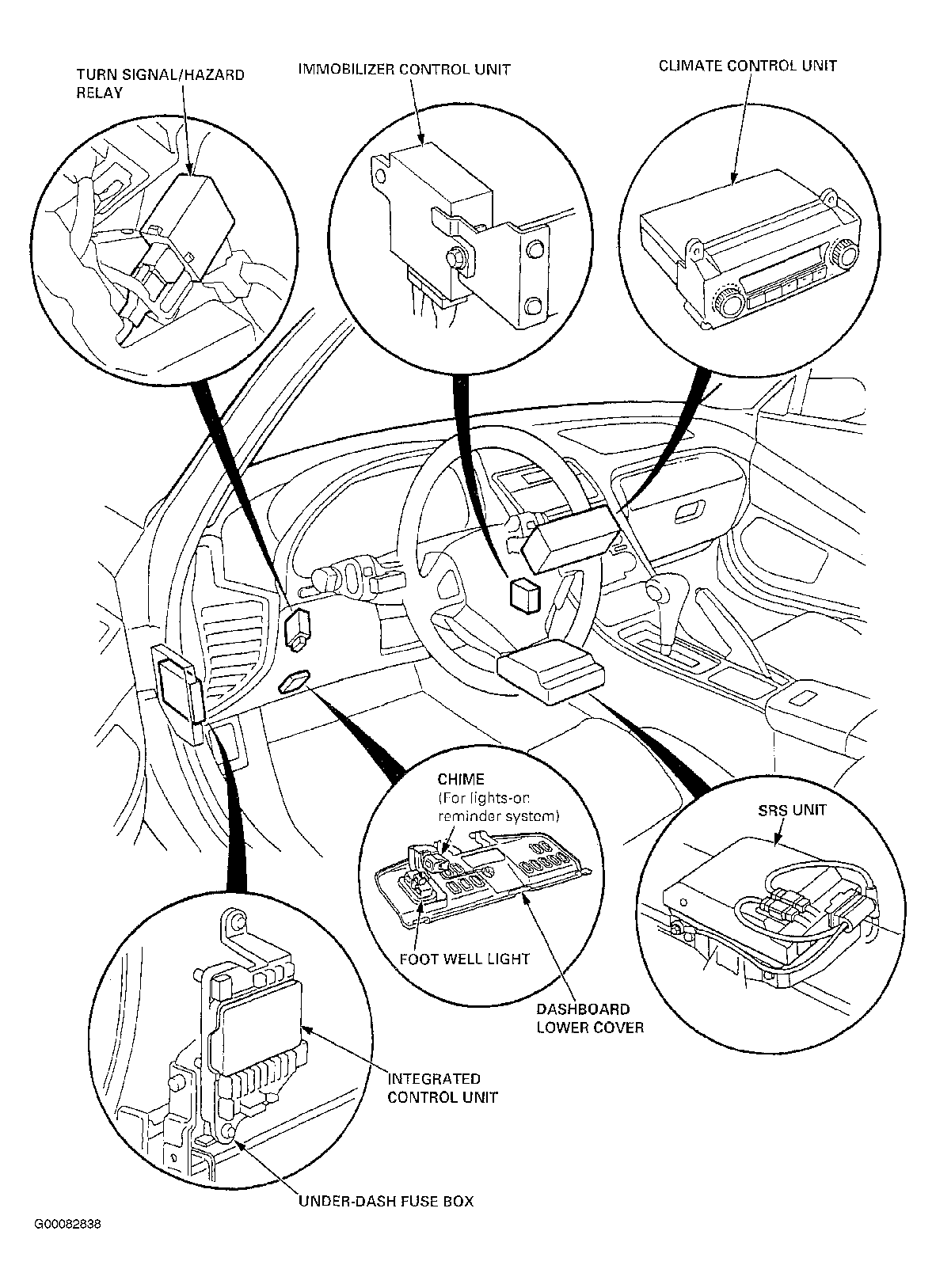

| Intergrated Control Unit | Under Left Side Of Dash, On Underdash Fuse/Relay Block. See Figure. |
| Interlock Control Unit | Behind Seat, On Center Of Rear Bulkhead. See Figure. |
| Power Door Lock Control Unit | Behind Right Side Of Dashboard. See Figure. |
| Power Window Control Unit | Front Of Driver's Door. See Figure. |
| Electronic Control Module (ECM) | Behind Seat, On Right Side Of Rear Bulkhead. See Figure. |
| Retractable Headlight Control Unit | Behind Seat, On Left Side Of Rear Bulkhead. See Figure. |
| Security Control Unit | Behind Right Side Of Dashboard. See Figure. |
| Supplemental Restraint System (SRS) Control Unit | Below Center Of Dashboard, Under Front Of Console. See Figure. |
| Spark Plug Voltage Detection Module | Right Side Of Engine. See Figure. |
| Traction Control (TCS) Unit | Behind Seat, On Left Side Of Rear Bulkhead. See Figure. |
