Rear Heater-A/C Control Panel-Unit Connector End View

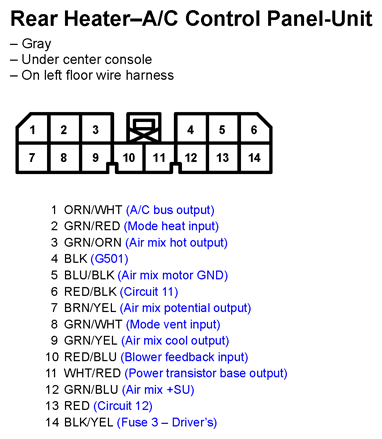

Fig 1: Rear Heater-A/C Control Panel-Unit Connector End View

G11247888

Courtesy of AMERICAN HONDA MOTOR CO., INC.
