'03-04 Models

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the driver's seat backward.
  2. Remove the four mounting nuts from the CD changer (A).

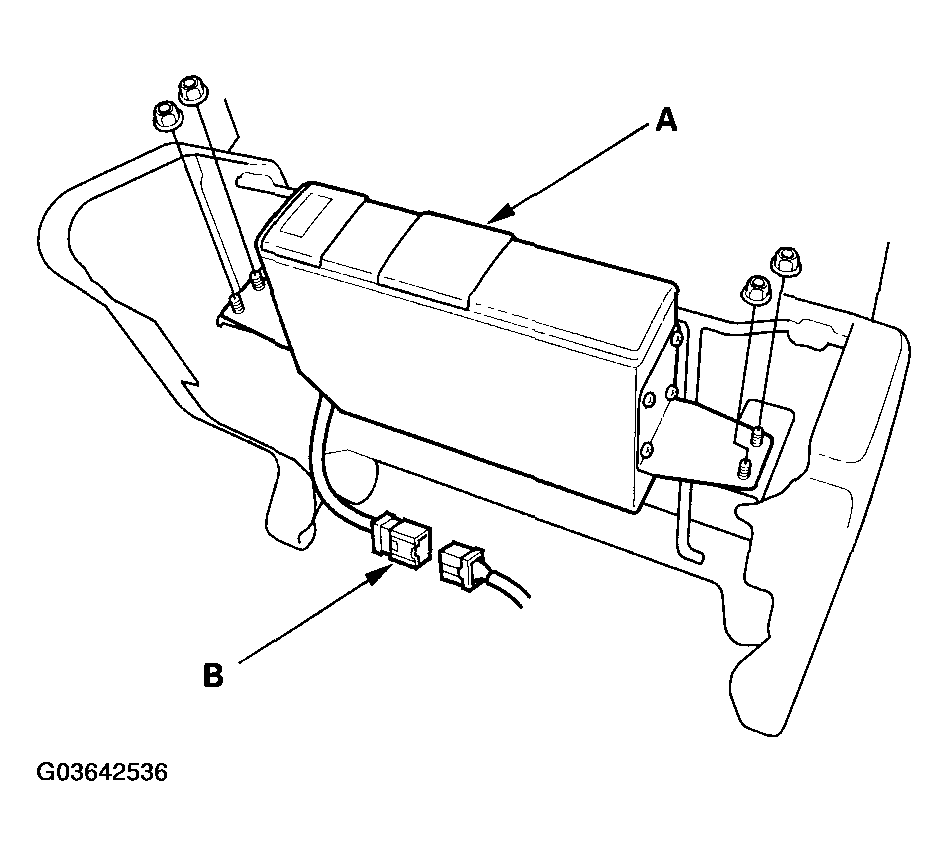

    Fig 1: Removing Mounting Nuts From CD Changer
    G03642536Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 10P connector (B) and remove the CD changer.
  4. Remove the four mounting screws, then remove the bracket.

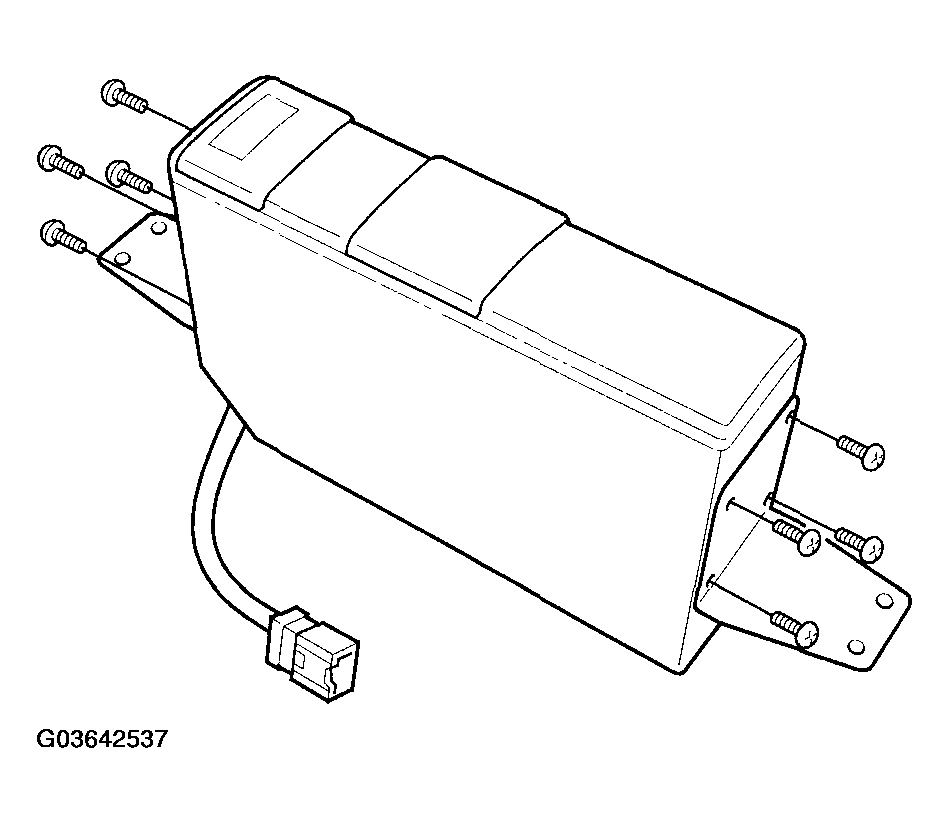

    Fig 2: Removing Mounting Screws And Bracket
    G03642537Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install in the reverse order of removal.
