Section 46 (Conventional Brake Components)
>>
Brake System Indicator Circuit Diagram
Brake System Indicator Circuit Diagram
WARNING:
This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

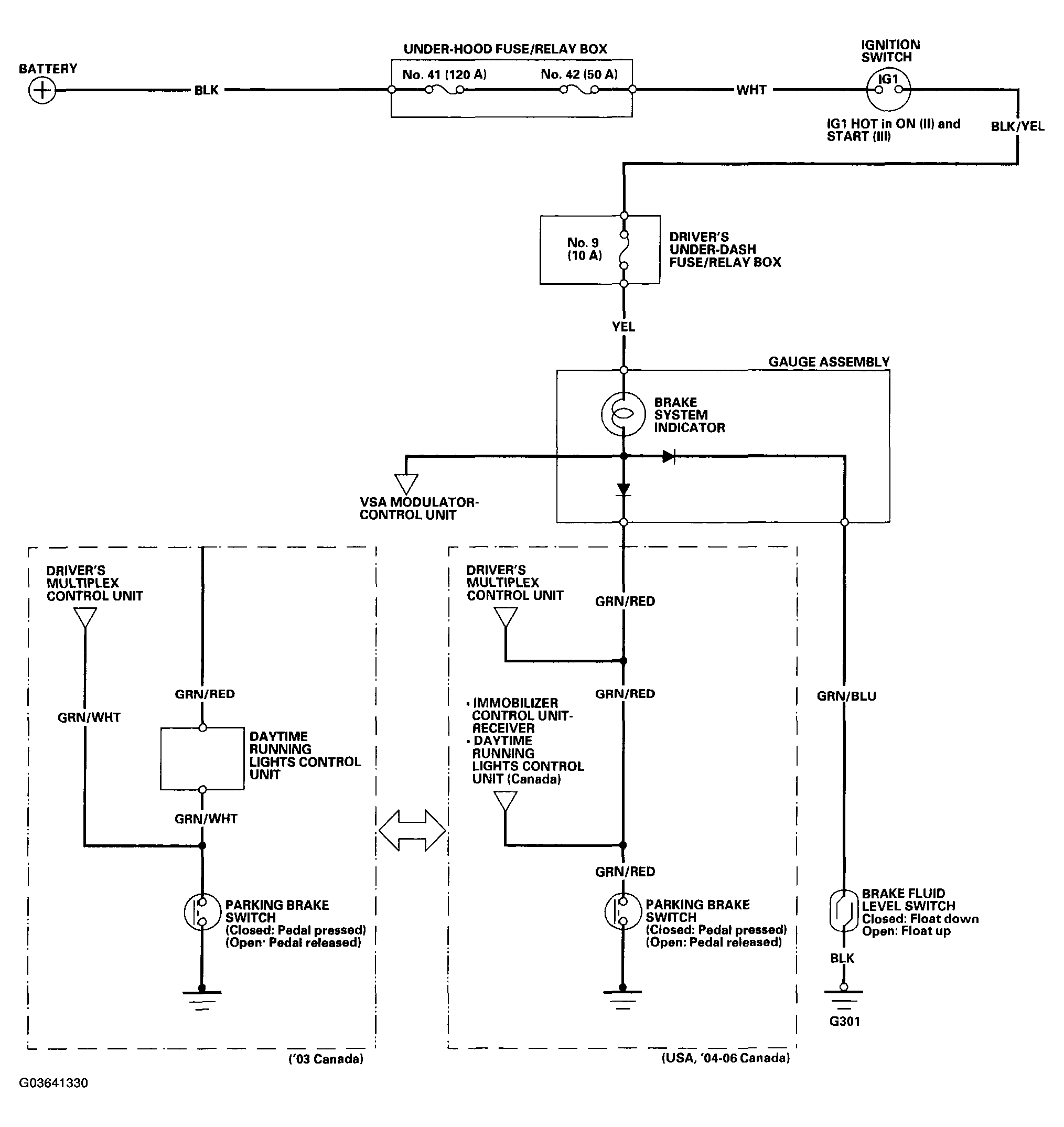

Fig 1: Brake System Indicator Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
