Shift Lock Solenoid: Installation
- Apply silicone grease to shift lock solenoid mating surfaces with shift lock extension. Install shift lock solenoid with NEW nuts snugly installed. Install pin, collar and harness connector.

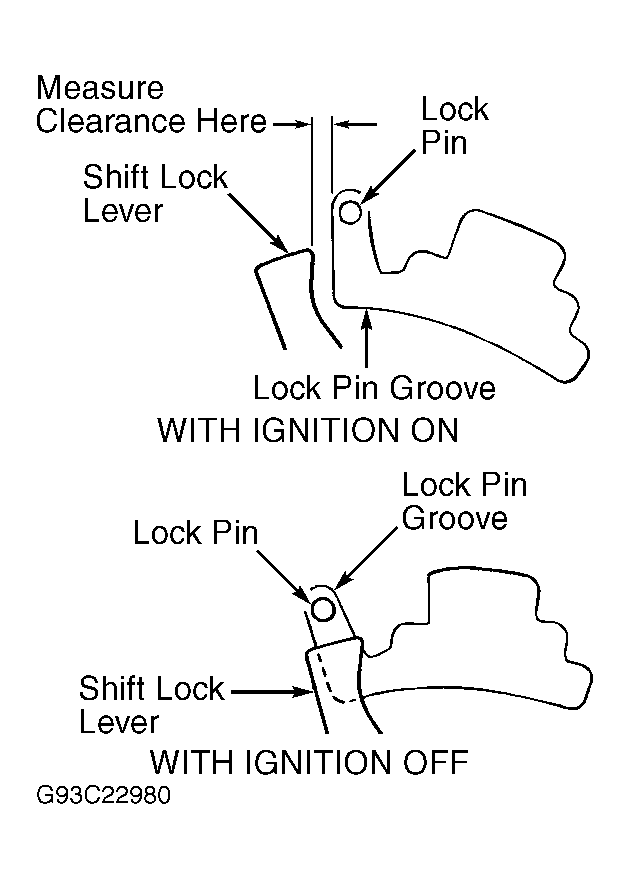

- Turn ignition on. With shift lock solenoid energized, ensure clearance between top rear of shift lock lever and lock pin groove is .078-.118" (2.0-3.0 mm). See Fig 1
. Tighten mounting nuts to specifications.
- Turn ignition off. Ensure lock pin is blocked by shift lock lever. See Fig 1
. Check solenoid operation several times to ensure proper operation.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
