Initializing Occupant Position Detection System (OPDS) Unit
WARNING: This page is about a different car, the 2000 Acura 3.5RL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
DO NOT use a jumper wire in place of SCS short connector. Jumper wire may be difficult to connect and disconnect quickly enough.

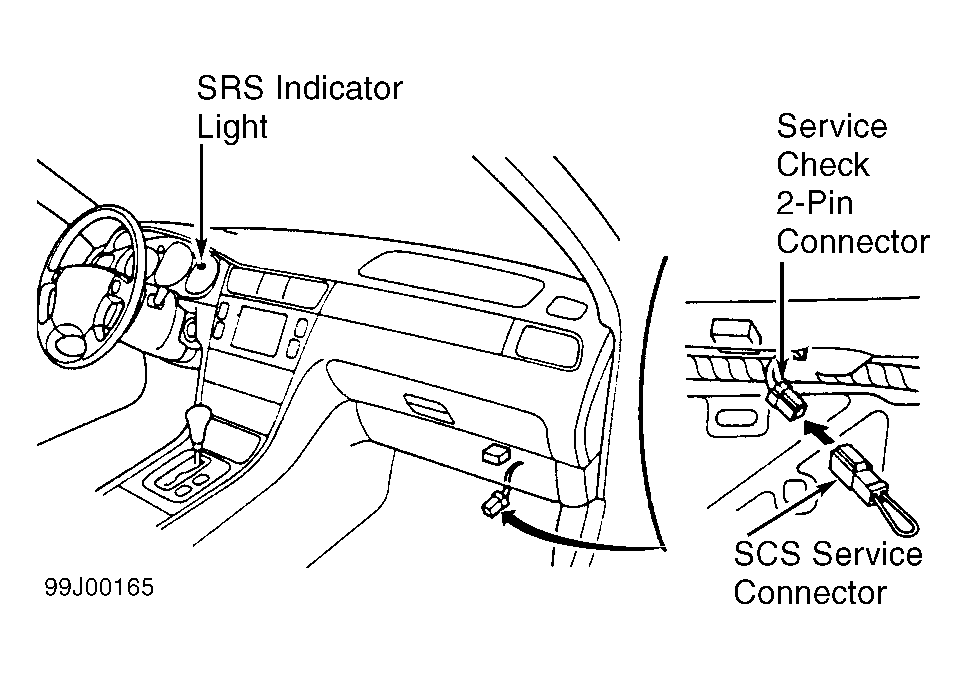

- Turn ignition off. Connect SCS Short Connector (07PAZ-0010100) to service check connector. See Figure. Remove SCS short connector and connect to Memory Erase Signal (MES) connector. See Figure.
- Turn ignition on. SRS indicator light will come on for about 6 seconds then go off.
- Disconnect SCS service connector from MES connector within 4 seconds after SRS indicator light goes off. SRS indicator light will come on again.
- Reconnect SCS service connector to MES connector within 4 seconds after SRS indicator light comes on. SRS indicator light will go off.
- Disconnect SCS service connector from MES connector within 4 seconds. SRS indicator light will indicate that OPDS unit is initialized by blinking 2 times. If light doesn"t blink and stays on, repeat procedure. If light blinks 2 times and stays on, read DTC and proceed with troubleshooting. Turn ignition off, and wait 10 seconds.
DIAGNOSTIC TROUBLE CODE (DTC) CHART
| Trouble Code | Possible Cause | ||||
|---|---|---|---|---|---|
| SRS indicator light does not come on | Faulty SRS indicator light circuit | ||||
| SRS indicator light stays on | Faulty SRS indicator light circuit | ||||
| 1-1 | Open in driver-side air bag inflator | ||||
| 1-2 | Increased resistance in driver-side air bag inflator | ||||
| 1-3 | Short to another wire or decreased resistance in driver-side air bag inflator | ||||
| 1-4 | Short to power in driver-side air bag inflator | ||||
| 1-5 | Short to ground in driver-side air bag inflator | ||||
| 2-1 | Open in passenger-side air bag inflator | ||||
| 2-2 | Increased resistance in passenger-side air bag inflator | ||||
| 2-3 | Short to another wire or decreased resistance in passenger-side air bag inflator | ||||
| 2-4 | Short to power in passenger-side air bag inflator | ||||
| 2-5 | Short to ground in passenger-side air bag inflator | ||||
| 3-1 | Open in driver-side seat belt tensioner | ||||
| 3-2 | Increased resistance in driver-side seat belt tensioner | ||||
| 3-3 | Short to another wire in driver-side seat Belt tensioner or decreased resistance | ||||
| 3-4 | Short to power in driver-side seat belt tensioner | ||||
| 3-5 | Short to ground in driver-side seat belt tensioner | ||||
| 4-1 | Open in passenger-side seat belt tensioner | ||||
| 4-2 | Increased resistance in passenger-side seat belt tensioner | ||||
| 4-3 | Short to another wire in passenger-side seat Belt tensioner or decreased resistance | ||||
| 4-4 | Short to power in passenger-side seat belt tensioner | ||||
| 4-5 | Short to ground in passenger-side seat belt tensioner | ||||
| 5-2 | Internal failure of SRS unit-replace | ||||
| 5-4 | Internal failure of SRS unit-replace | ||||
| 5-5 | Internal failure of SRS unit-replace | ||||
| 5-8 | Internal failure of SRS unit-replace | ||||
| 6-4 | Internal failure of SRS unit-replace | ||||
| 6-8 | Internal failure of SRS unit-replace | ||||
| 7-1 | Internal failure of SRS unit-replace | ||||
| 7-2 | Internal failure of SRS unit-replace | ||||
| 7-3 | Internal failure of SRS unit-replace | ||||
| 8-1 | Internal failure of SRS unit-replace | ||||
| 8-2 | Internal failure of SRS unit-replace | ||||
| 8-3 | Internal failure of SRS unit-replace | ||||
| 8-4 | Internal failure of SRS unit-replace | ||||
| 8-5 | Internal failure of SRS unit-replace | ||||
| 8-6 | Internal failure of SRS unit-replace | ||||
| 8-7 | Internal failure of SRS unit-replace | ||||
| 8-8 | Internal failure of SRS unit-replace | ||||
| 9-1(1) | Internal SRS unit failure | ||||
| 9-2(2) | Internal SRS unit failure | ||||
| 9-3 | Faulty driver seat belt buckle switch | ||||
| 9-4 | Faulty passenger seat belt buckle switch | ||||
| 10-1 | Air bags & seat belt tensioners deployed | ||||
| 10-2 | Driver side-impact air bag deployed | ||||
| 10-3 | Air bags, seat belt tensioners, & driver side-impact air bag deployed | ||||
| 10-4 | Passenger side-impact air bag deployed | ||||
| 10-5 | Air bags, seat belt tensioners, & passenger side-impact air bag deployed | ||||
| 10-6 | Driver & passenger side-impact air bags deployed | ||||
| 10-7 | Air bags, seat belt tensioners, & both side-impact air bags deployed | ||||
| 11-1 | Open in driver side-impact air bag inflator | ||||
| 11-2 | Increased resistance in driver side-impact air bag inflator | ||||
| 11-3 | Short to another wire in driver side-impact Air bag inflator or decreased resistance | ||||
| 11-4 | Short to power in driver side-impact air bag inflator | ||||
| 11-5 | Short to ground in driver side-impact air bag inflator | ||||
| 12-1 | Open in passenger side-impact air bag inflator | ||||
| 12-2 | Increased resistance in passenger side-impact air bag inflator | ||||
| 12-3 | Short to another wire in passenger side-impact air bag inflator or decreased resistance | ||||
| 12-4 | Short to power in passenger side-impact air bag inflator | ||||
| 12-5 | Short to ground in passenger side-impact air bag inflator | ||||
| 13-2 | Internal failure of driver Side-impact sensor-replace | ||||
| 13-3 | No signal from driver side-impact sensor | ||||
| 13-4 | Faulty power supply to driver side-impact sensor | ||||
| 13-5 | Faulty safing sensor for driver side-impact sensor | ||||
| 14-2 | Internal failure of passenger side-impact sensor-replace | ||||
| 14-3 | No signal from passenger side-impact sensor | ||||
| 14-4 | Faulty power supply to passenger side-impact sensor | ||||
| 14-5 | Faulty safing sensor for passenger side-impact sensor | ||||
| 15-1 | Faulty OPDS unit | ||||
| 15-2 | Faulty side-impact air bag indicator light circuit | ||||
| 15-3 | Faulty OPDS sensor | ||||
|
|||||
