Erasing DTC Memory Using Honda PGM Tester

WARNING: This page is about a different car, the 2000 Acura 3.5RL. However, it is still accessible from the selected car via links, so may be relevant.

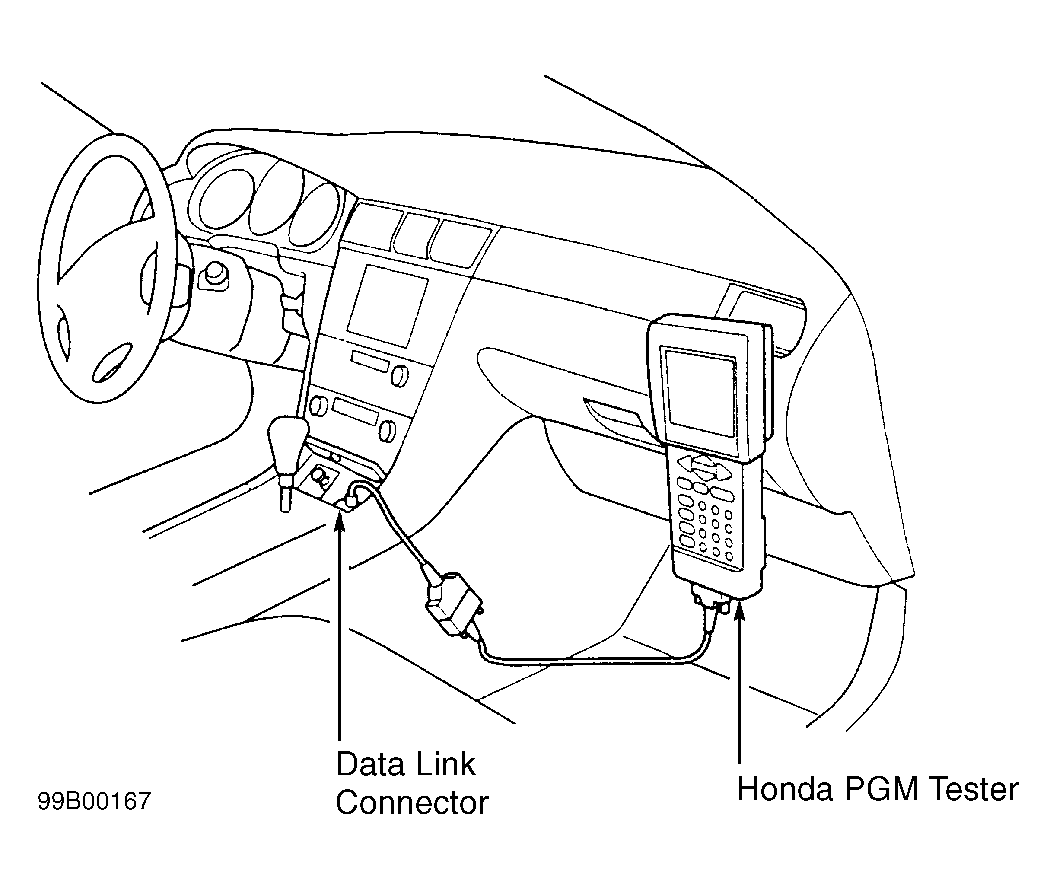

Connect Honda PGM Tester to 16-pin data link connector and follow tester prompts to erase DTC. See Figure.

NOTE: DO NOT use a jumper wire in place of SCS short connector. Jumper wire may be difficult to connect and disconnect quickly enough.
