Component Locations

WARNING: This page is about a different car, the 2000 Acura 3.5RL. However, it is still accessible from the selected car via links, so may be relevant.

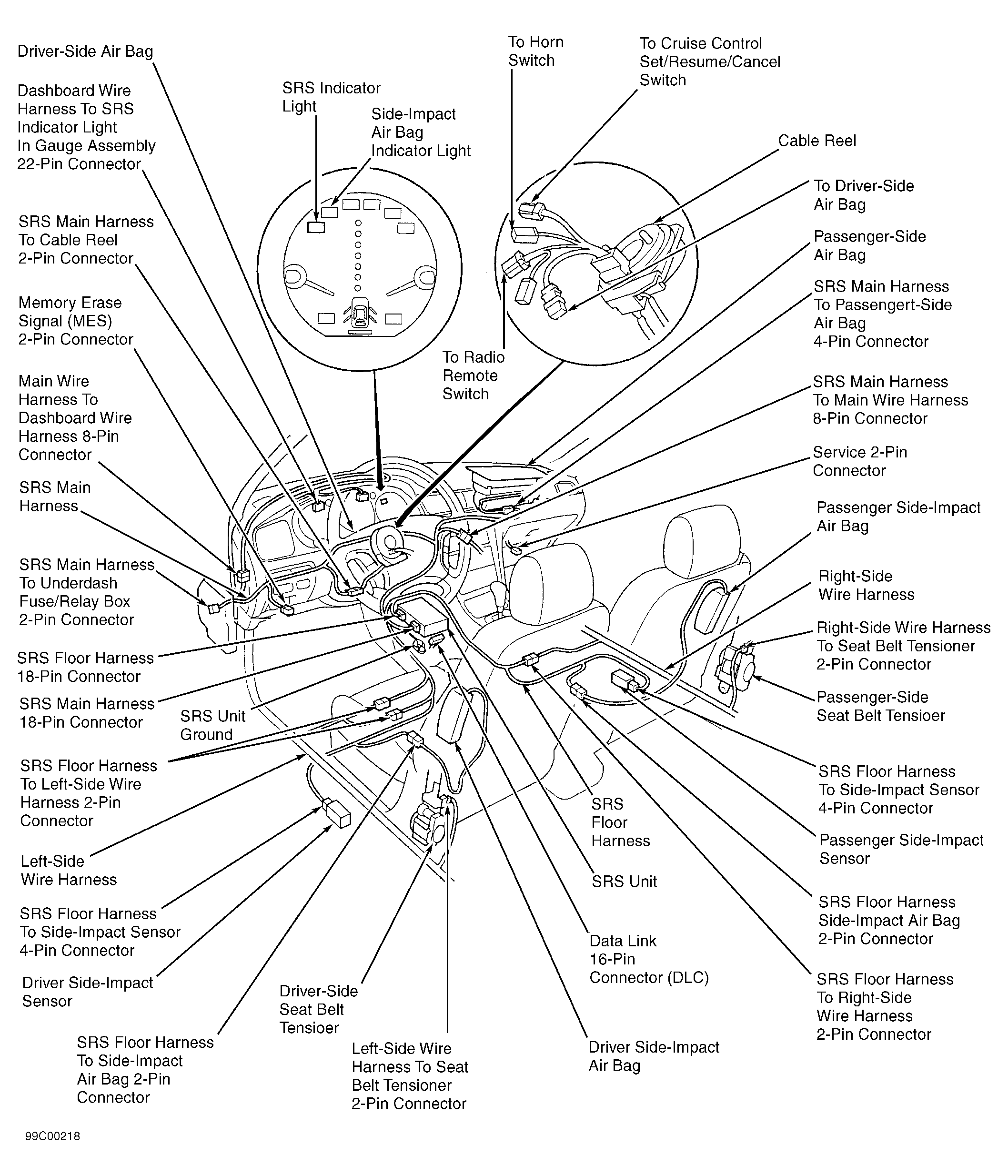

Refer to illustration for SRS system component locations. See Fig 1.

Fig 1: Locating SRS Components & Wiring Connectors

Courtesy of ACURA
